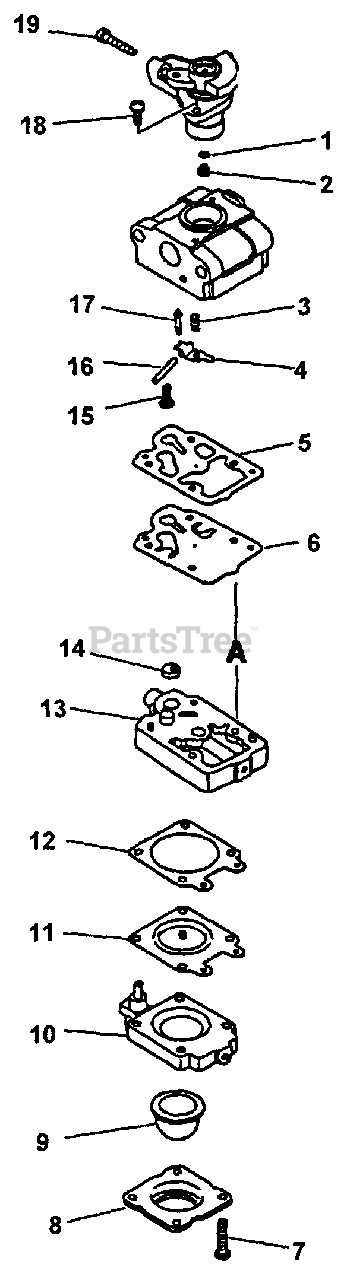

EDR-2100 - Echo Reversible Engine Drill (Type 1E) Carburetor Parts Diagram

Reversible Engine Drill (Type 1E)

Carburetor Parts Diagram

  • Title

Echo 12300005560

CARBURETOR WYL-23

Note: INCLUDES ITEMS 1 - 19

$100.99

$

In Stock, only 2 left!

0

Echo 12300020960

CARBURETOR WYL-53
(Superseded to 12300020961)

Note: INCLUDES ITEMS 1 - 19

$117.99

$

Usually ships in 2-4 days

0

1

------------------

O-RING

Note: INCLUDED IN REBUILD KIT P/N. 12310005560

$

$

Not available

2

------------------

JET

Note: INCLUDED IN REBUILD KIT P/N. 12310005560

$

$

Not available

3

------------------

SPRING, METERING LEVER

Note: INCLUDED IN REBUILD KIT P/N. 12310005560

$

$

Not available

4

------------------

LEVER, METERING

Note: INCLUDED IN REBUILD KIT P/N. 12310005560

$

$

Not available

5

------------------

GASKET, PURGE

Note: INCLUDED IN REBUILD KIT P/N. 12310005560, GASKET/DIAPHRAGM KIT TYPE 1 P/N. 12310105560 AND GASKET/DIAPHRAGM KIT TYPE 1E P/N. 12310120960

$

$

Not available

6

------------------

DIAPHRAGM, PURGE

Note: INCLUDED IN REBUILD KIT P/N. 12310005560, GASKET/DIAPHRAGM KIT TYPE 1 P/N. 12310105560 AND GASKET/DIAPHRAGM KIT TYPE 1E P/N. 12310120960

$

$

Not available

7

Echo 12311005560

SCREW, PUMP COVER

$2.99

$

In Stock, Qty 20+

0

8

Echo 12314205560

RETAINER, PURGE BULB

$5.49

$

In Stock, only 3 left!

0

9

Echo 12318140630

BULB, PURGE

$6.49

$

In Stock, Qty 20+

0

10

Echo 12318005560

PURGE BASE ASSY

$8.99

$

In Stock, Qty 5

0

11

------------------

DIAPHRAGM, METERING

Note: INCLUDED IN REBUILD KIT P/N. 12310005560, GASKET/DIAPHRAGM KIT TYPE 1 P/N. 12310105560 AND GASKET/DIAPHRAGM KIT TYPE 1E P/N. 12310120960

$

$

Not available

12

------------------

GASKET, METERING

Note: INCLUDED IN REBUILD KIT P/N. 12310005560, GASKET/DIAPHRAGM KIT TYPE 1 P/N. 12310105560 AND GASKET/DIAPHRAGM KIT TYPE 1E P/N. 12310120960

$

$

Not available

13

------------------

BASE, PURGE

Note: INCLUDED IN REBUILD KIT P/N. 12310005560

$

$

Not available

14

------------------

STRAINER

Note: INCLUDED IN REBUILD KIT P/N. 12310005560

$

$

Not available

15

------------------

SCREW, METERING LEVER PIN

Note: INCLUDED IN REBUILD KIT P/N. 12310005560

$

$

Not available

16

------------------

PIN, METERING LEVER

Note: INCLUDED IN REBUILD KIT P/N. 12310005560

$

$

Not available

17

------------------

VALVE, INLET

Note: INCLUDED IN REBUILD KIT P/N. 12310005560

$

$

Not available

18

Echo 12311444330

SCREW

$0.99

$

Usually ships in 2-4 days

0

19

Echo 12313440030

SCREW, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

Echo 12310005560

REPAIR KIT

$36.99

$

Usually ships in 2-4 days

0

Echo 12310105560

DIAPHRAGM/GASKET KIT

Note: TYPE 1

$6.99

$

Usually ships in 2-4 days

0

Echo 12310120960

DIAPHRAGM/GASKET KIT
(Superseded to 12310105560)

Note: TYPE 1E

$6.99

$

Usually ships in 2-4 days

0
