EDR-2100 - Echo Reversible Engine Drill (Type 1E) Intake, Air Filter, Exhaust, Handle, Stop Switch Parts Diagram

Reversible Engine Drill (Type 1E)

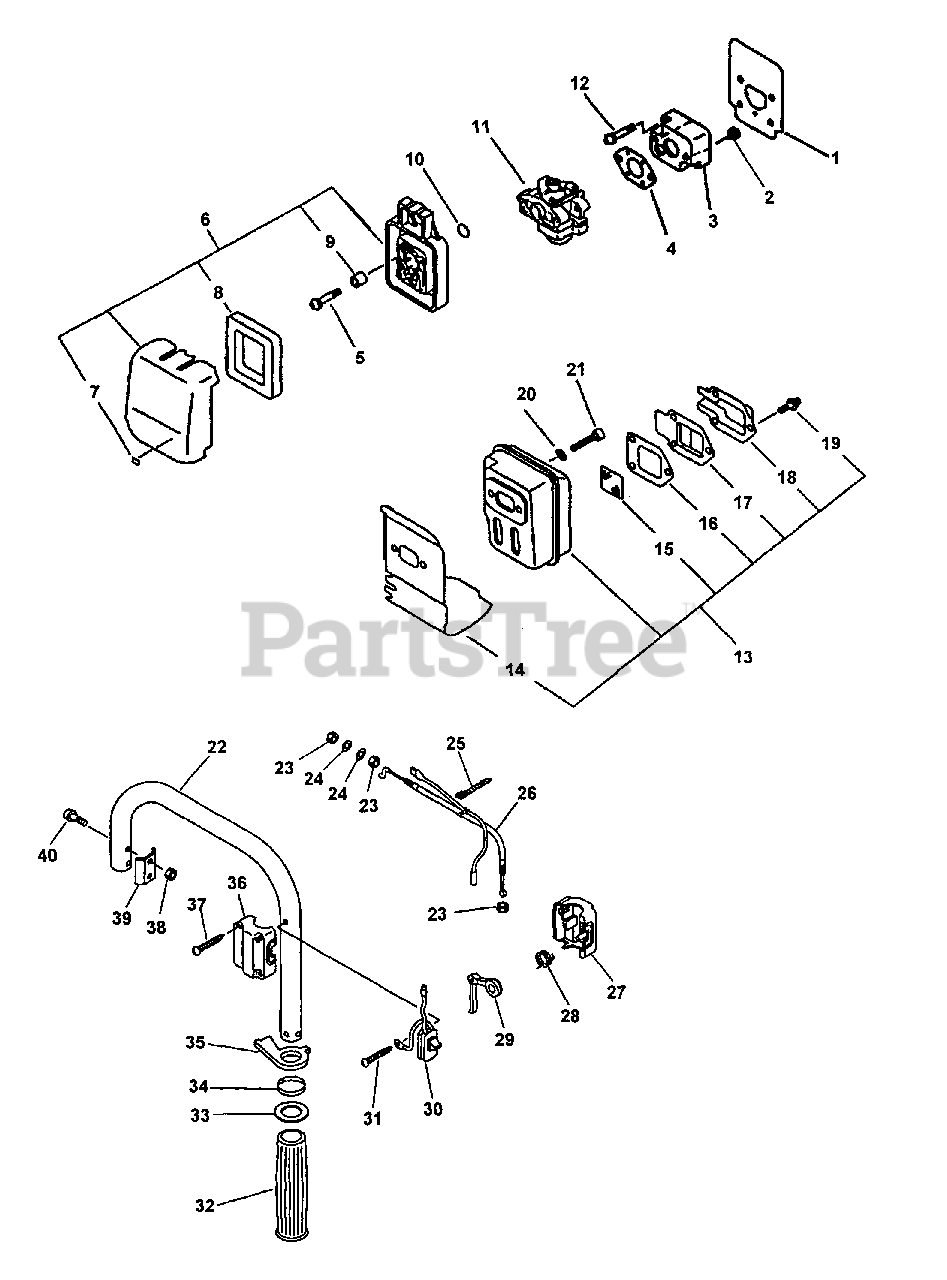

Intake, Air Filter, Exhaust, Handle, Stop Switch Parts Diagram

  • Title

1

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

Note: INCLUDED IN KIT 88900044431

$2.49

$

In Stock, Qty 20+

0

2

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

3

Echo 13001744330

INSULATOR, INTAKE
(Superseded to P021015350)

$4.99

$

In Stock, Qty 9

0

4

Echo 13001044431

GASKET, INTAKE

Note: INCLUDED IN KIT 88900044431

$2.49

$

In Stock, Qty 10

0

5

Echo 90024205064

SCREW - 5X64

$1.49

$

In Stock, Qty 9

0

6

Echo 13030020960

AIR CLEANER ASSY

Note: INCLUDES ITEMS 7 - 9

$35.99

$

In Stock, only 3 left!

0

7

Echo 89099120960

LABEL

$1.99

$

Usually ships in 2-4 days

0

8

Echo 13031044330

FILTER, AIR

$5.49

$

In Stock, Qty 20+

0

9

Echo 13032744330

SLEEVE
(Superseded to Discontinued)

$

$

Not available

10

Echo 90072000015

O-RING - 15

Note: INCLUDED IN KIT 88900044431

$1.99

$

In Stock, Qty 15

0

11

Echo 12300005560

CARBURETOR WYL-23

Note: TYPE 1

$93.99

$

In Stock, only 2 left!

0

11

Echo 12300020960

CARBURETOR WYL-53
(Superseded to 12300020961)

Note: TYPE 1E

$108.99

$

Usually ships in 2-4 days

0

12

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

13

Echo 14580005560

MUFFLER ASSY

Note: Includes ITEMS 14-19

$42.99

$

Usually ships in 2-4 days

0

14

Echo 14551044331

GASKET, EXHAUST

Note: INCLUDED IN KIT 88900044431

$10.99

$

Usually ships in 2-4 days

0

15

Echo 14586240630

SCREEN, SPARK ARRESTOR

$2.49

$

In Stock, Qty 20+

0

16

Echo 14586642031

GASKET, EXHAUST

Note: INCLUDED IN KIT 88900044431

$2.99

$

In Stock, Qty 10

0

17

Echo 14587642030

GASKET, EXHAUST - INNER

$4.49

$

In Stock, only 1 left!

0

18

Echo 14586342030

GUIDE, EXHAUST
(Superseded to A313000041)

$4.49

$

Usually ships in 2-4 days

0

19

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

20

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

21

Echo 90010505055

SCREW - 5X55

$1.99

$

In Stock, Qty 20+

0

22

Echo 35130520960

HANDLE - REAR

$92.99

$

In Stock, only 2 left!

0

23

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 20+

0

24

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 9

0

25

Echo 17812108550

TIE, CABLE
(Superseded to 17812156030)

$2.99

$

Usually ships in 2-4 days

0

26

Echo 17800205560

CABLE, THROTTLE
(Superseded to 17810009060)

Note: S/N 001001 - 002100

$15.99

$

In Stock, Qty 9

0

26

Echo 17810009060

CONTROL CABLE ASSY
(Superseded to 17810009061)

Note: S/N 002101 & UP, S/N 501001 & UP

$15.99

$

In Stock, Qty 9

0

27

Echo 17802401260

BRACKET, THROTTLE CONTROL - RIGHT
(Superseded to 17802401261)

$4.49

$

In Stock, only 2 left!

0

28

Echo 17804301260

SPRING, TRIGGER

$1.49

$

In Stock, only 3 left!

0

29

Echo 17801001260

TRIGGER, THROTTLE
(Superseded to 17801007660)

$4.99

$

In Stock, only 2 left!

0

30

Echo 16340004460

IGNITION SWITCH ASSY

$11.99

$

In Stock, only 2 left!

0

31

Echo 90024504030

SCREW - 4X30

$0.99

$

In Stock, Qty 9

0

32

Echo 35131527931

GRIP, HANDLE - RIGHT

$5.99

$

In Stock, only 2 left!

0

33

Echo 17807002060

SPACER
(Superseded to 17807002061)

$1.99

$

In Stock, only 3 left!

0

34

Echo 17801302060

SPRING, LOCKOUT LEVER

$2.99

$

Usually ships in 2-4 days

0

35

Echo 17801202061

LEVER, TRIGGER LOCKOUT

$5.99

$

Usually ships in 2-4 days

0

36

Echo 17805201260

BRACKET, THROTTLE CONTROL - LEFT
(Superseded to 17805201261)

$4.49

$

In Stock, only 2 left!

0

37

Echo 90024504025

SCREW - 4X25

$0.99

$

In Stock, only 1 left!

0

38

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

39

Echo 35164105560

PLATE, HANDLE

$6.49

$

Usually ships in 2-4 days

0

40

Echo 90016205035

SCREW - 5X35

$1.49

$

In Stock, Qty 20+

0
