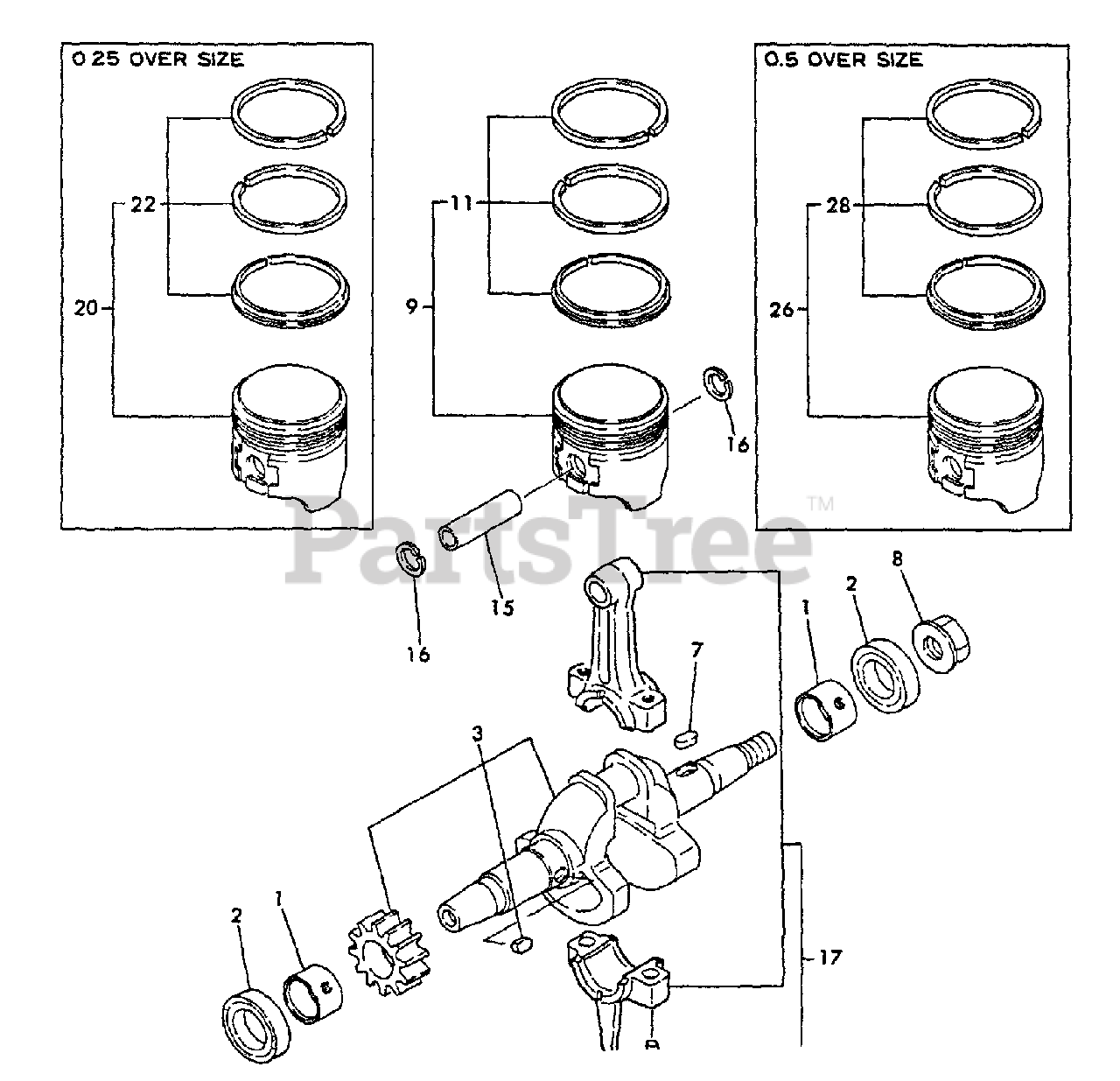

EG-750 - Echo Generator Bearing, Crankshaft, Piston, Rod Parts Diagram

Generator

Bearing, Crankshaft, Piston, Rod Parts Diagram

  • Title

1

Echo Y16066402100

BEARING, MAIN
(Superseded to Discontinued)

$

$

Not available

2

Echo Y16051002220

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

3

Echo Y76066721700

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

7

Echo Y16061021290

KEY - 4X10

$2.49

$

Usually ships in 2-4 days

0

8

Echo Y26376100002

NUT - 10 -- FLANGE
(Superseded to Discontinued)

$

$

Not available

9

Echo Y16066422010

PISTON ASSY
(Superseded to Discontinued)

$

$

Not available

11

Echo Y76066422500

PISTON RING SET

$20.99

$

Usually ships in 2-4 days

0

15

Echo Y16066422300

PIN, PISTON
(Superseded to Discontinued)

$

$

Not available

16

Echo Y22252000110

RING, RETAINING - 11
(Superseded to Discontinued)

$

$

Not available

17

Echo Y76066423700

CONNECTING ROD ASSY
(Superseded to Discontinued)

$

$

Not available

19

Echo Y16066423200

BOLT, ROD
(Superseded to Discontinued)

$

$

Not available

20

Echo Y16066422470

PISTON ASSY,O.S.= 0.25
(Superseded to Discontinued)

$

$

Not available

22

Echo Y76066422540

RING SET O.S. = 0.25
(Superseded to Discontinued)

$

$

Not available

26

Echo Y16066422480

PISTON ASSY,O.S.= 0.5
(Superseded to Discontinued)

$

$

Not available

28

Echo Y76066422550

RING SET O.S. = 0.5
(Superseded to Discontinued)

$

$

Not available
