EG-750 - Echo Generator Breather, Cylinder Body Parts Diagram

Generator

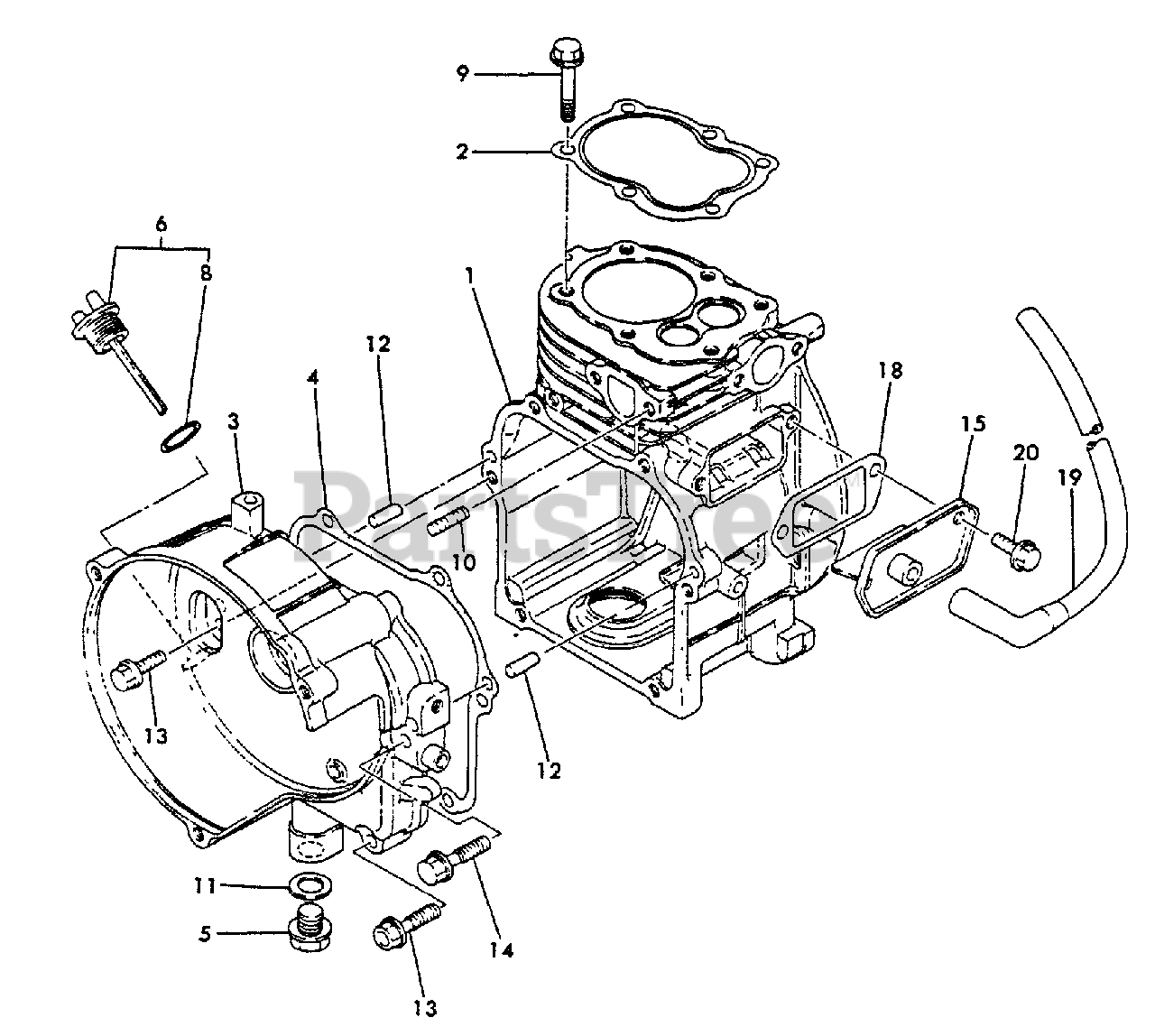

Breather, Cylinder Body Parts Diagram

  • Title

1

Echo Y16066701010

CYLINDER BLOCK ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo Y16066401330

GASKET, HEAD
(Superseded to Discontinued)

$

$

Not available

3

Echo Y16066701400

COVER, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

4

Echo Y16066401410

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

5

Echo Y16061001690

PLUG, DRAIN
(Superseded to Discontinued)

$

$

Not available

6

Echo Y16056001740

CAP ASSY
(Superseded to Discontinued)

$

$

Not available

8

Echo Y24311000150

O-RING - 18
(Superseded to Discontinued)

$

$

Not available

9

Echo Y16061004360

BOLT - 6X35
(Superseded to Discontinued)

$

$

Not available

10

Echo Y16061004620

BOLT - 6X16
(Superseded to Discontinued)

$

$

Not available

11

Echo Y10420059170

GASKET
(Superseded to Discontinued)

$

$

Not available

12

Echo Y22312060160

PIN - 6X16
(Superseded to Discontinued)

$

$

Not available

13

Echo Y26476060252

BOLT - 6X25
(Superseded to Discontinued)

$

$

Not available

14

Echo Y26476060302

BOLT - 6X30
(Superseded to Discontinued)

$

$

Not available

15

Echo Y16066403010

VENT, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

18

Echo Y16066403070

GASKET, BREATHER
(Superseded to Discontinued)

$

$

Not available

19

Echo Y16066703180

PIPE - BREATHER
(Superseded to Discontinued)

$

$

Not available

20

Echo Y26476060142

BOLT - 6X8 -- PLATED
(Superseded to Discontinued)

$

$

Not available
