EG-750 - Echo Generator External Covers Parts Diagram

Generator

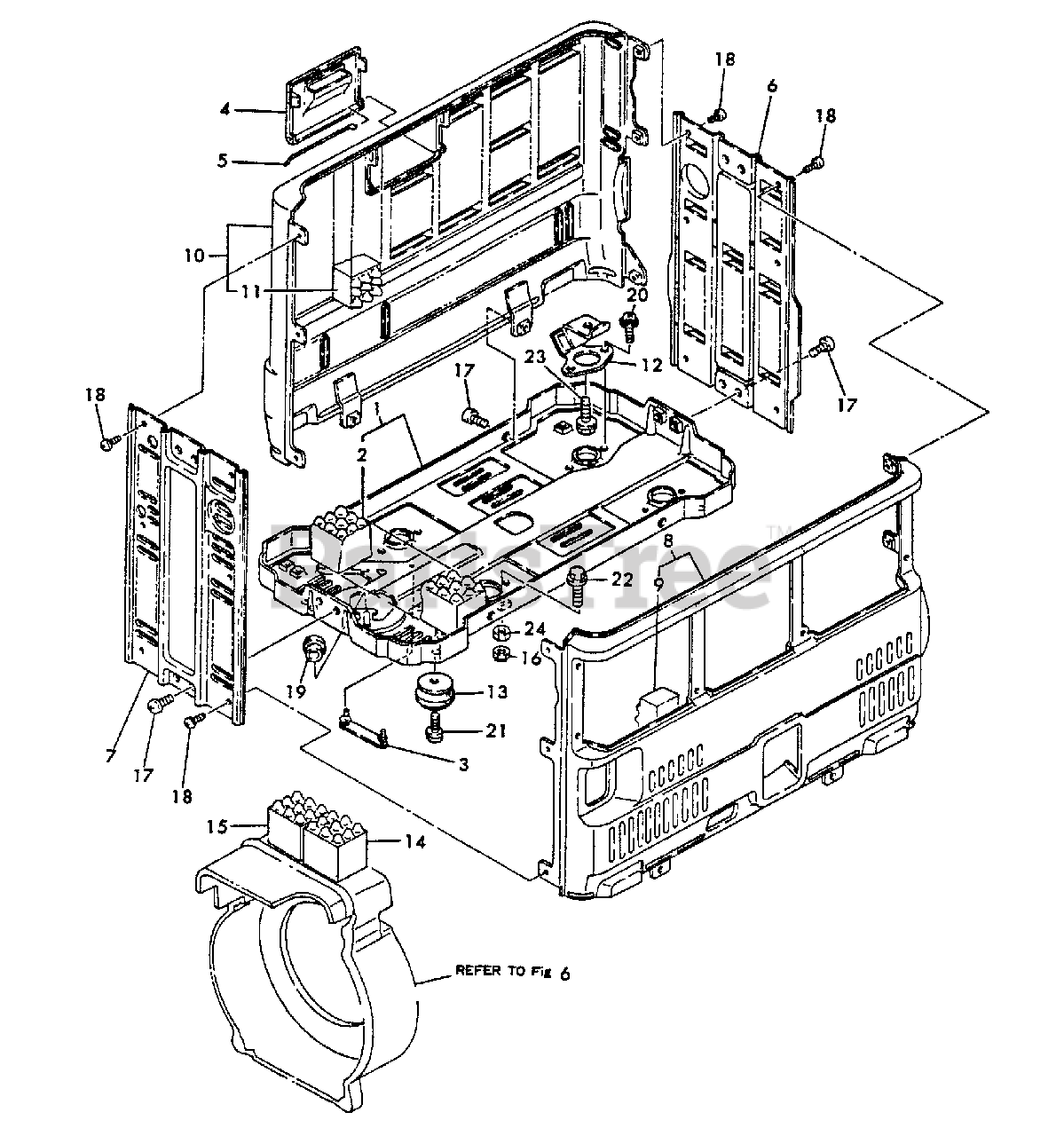

External Covers Parts Diagram

  • Title

1

Echo Y18321008040

CASE - BOTTOM
(Superseded to Discontinued)

$

$

Not available

2

Echo Y18321008290

URETHANE FOAM (E)
(Superseded to Discontinued)

$

$

Not available

3

Echo Y18321008050

HOLDER, TOOL
(Superseded to Discontinued)

$

$

Not available

4

Echo Y18321008060

PLUG, BLIND
(Superseded to Discontinued)

$

$

Not available

5

Echo Y18321008070

SPRING, HINGE
(Superseded to Discontinued)

$

$

Not available

6

Echo Y78321008820

CASE - RIGHT
(Superseded to Discontinued)

$

$

Not available

7

Echo Y18321008090

CASE - LEFT
(Superseded to Discontinued)

$

$

Not available

8

Echo Y18321008880

CASE - FRONT

$

$

Currently unavailable

9

Echo Y18321008270

URETHANE FOAM (C)
(Superseded to Discontinued)

$

$

Not available

10

Echo Y18321008940

GEAR CASE ASSY

$

$

Currently unavailable

11

Echo Y18321008280

URETHANE FOAM (D)
(Superseded to Discontinued)

$

$

Not available

12

Echo Y18321008220

DAMPER (A)
(Superseded to Discontinued)

$

$

Not available

13

Echo Y18321008230

DAMPER (B)
(Superseded to Discontinued)

$

$

Not available

14

Echo Y18321008250

URETHANE FOAM (A)
(Superseded to Discontinued)

$

$

Not available

15

Echo Y18321008260

URETHANE FOAM (B)
(Superseded to Discontinued)

$

$

Not available

16

Echo Y18321008810

NUT
(Superseded to Discontinued)

$

$

Not available

17

Echo Y18321008850

SCREW - 6X10

$

$

Not available

18

Echo Y18321008860

SCREW - 4X8
(Superseded to Discontinued)

$

$

Not available

19

Echo Y18372055210

GROMMET
(Superseded to Discontinued)

$

$

Not available

20

Echo Y26023060122

SCREW - 6X12
(Superseded to Discontinued)

$

$

Not available

21

Echo Y26023060122

SCREW - 6X12
(Superseded to Discontinued)

$

$

Not available

22

Echo Y26113060162

BOLT - 6X16 -- PLATED
(Superseded to Discontinued)

$

$

Not available

23

Echo Y26106080142

BOLT - 8X14 -- PLATED
(Superseded to Discontinued)

$

$

Not available

24

Echo Y26753060002

LOCKNUT - 6 -- PLATED
(Superseded to Discontinued)

$

$

Not available
