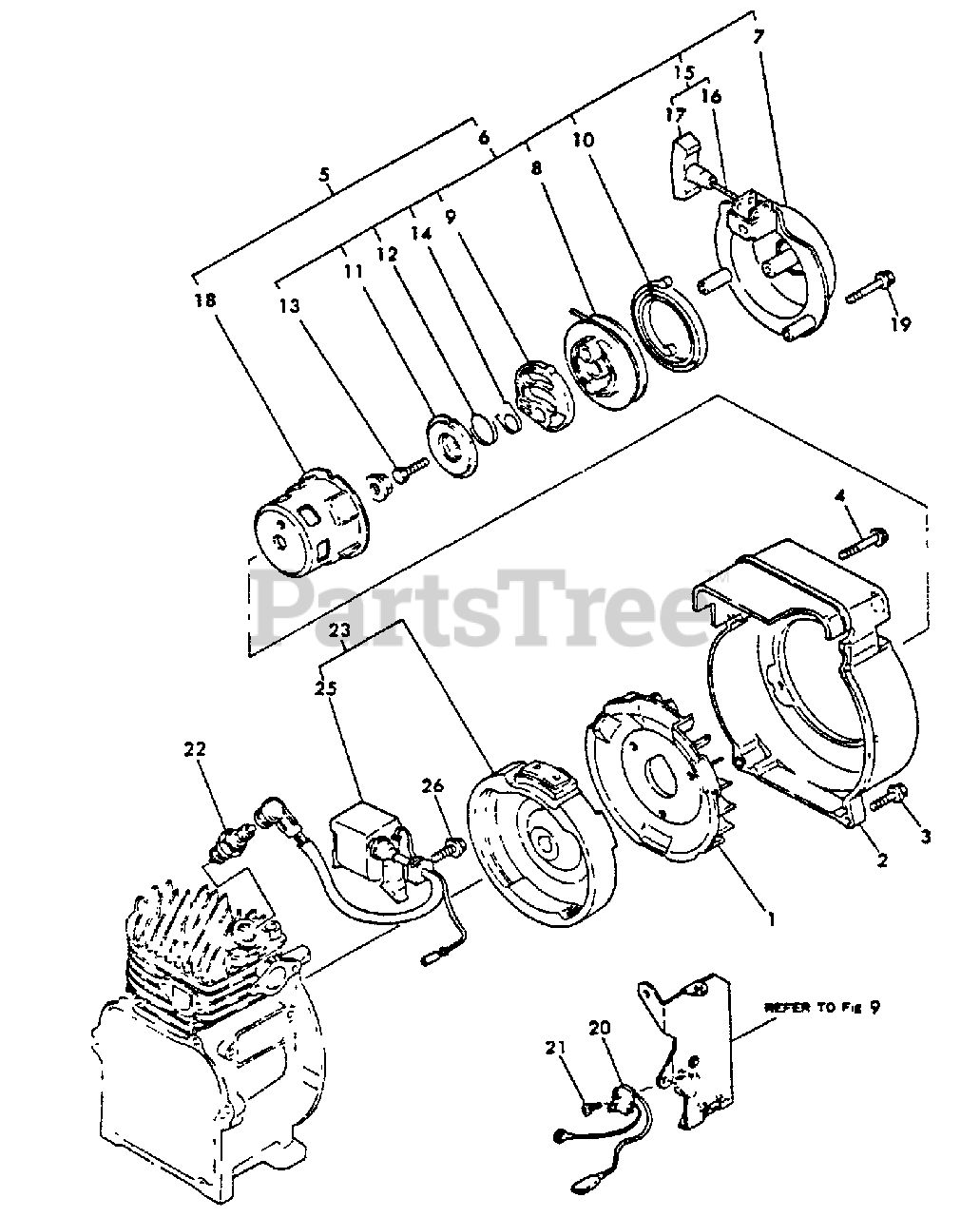

EG-750 - Echo Generator Starter, Ignition, Fan Housing Parts Diagram

Generator

Starter, Ignition, Fan Housing Parts Diagram

  • Title

1

Echo Y16066445010

FAN
(Superseded to Discontinued)

$

$

Not available

2

Echo Y16066745110

COVER, FAN
(Superseded to Discontinued)

$

$

Not available

3

Echo Y26476060252

BOLT - 6X25
(Superseded to Discontinued)

$

$

Not available

4

Echo Y26476060302

BOLT - 6X30
(Superseded to Discontinued)

$

$

Not available

5

Echo Y16066776050

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

6

Echo Y16066776250

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

7

Echo Y16066776510

STARTER CASE ASSY
(Superseded to Discontinued)

$

$

Not available

8

Echo Y16066776520

PULLEY
(Superseded to Discontinued)

$

$

Not available

9

Echo Y16066076530

RATCHET
(Superseded to Discontinued)

$

$

Not available

10

Echo Y16066776540

SPRING
(Superseded to Discontinued)

$

$

Not available

11

Echo Y16066776580

PLATE, FRICTION
(Superseded to Discontinued)

$

$

Not available

12

Echo Y16066776560

SPRING, FRICTION
(Superseded to Discontinued)

$

$

Not available

13

Echo Y16066776570

BOLT
(Superseded to Discontinued)

$

$

Not available

14

Echo Y16066776550

SPRING, RETURN
(Superseded to Discontinued)

$

$

Not available

15

Echo Y16066776610

STARTER ROPE ASSY
(Superseded to Discontinued)

$

$

Not available

16

Echo Y16066776620

ROPE, STARTER
(Superseded to Discontinued)

$

$

Not available

17

Echo Y16066776630

KNOB, STARTER
(Superseded to Discontinued)

$

$

Not available

18

Echo Y16066776590

PULLEY, STARTER
(Superseded to Discontinued)

$

$

Not available

19

Echo Y26106060352

BOLT - 6X35 -- PLATED
(Superseded to Discontinued)

$

$

Not available

20

Echo Y16066777250

IGNITION SWITCH ASSY

$17.99

$

In Stock, only 1 left!

0

21

Echo Y22857200100

SCREW - 2X10 -- TAPPING
(Superseded to Discontinued)

$

$

Not available

22

Echo Y16052078010

SPARK PLUG -- BPM-8Y

$

$

Currently unavailable

23

Echo Y16066778060

FLYWHEEL MAGNETO ASSY
(Superseded to Discontinued)

$

$

Not available

25

Echo Y16066778510

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

26

Echo Y26476060252

BOLT - 6X25
(Superseded to Discontinued)

$

$

Not available
