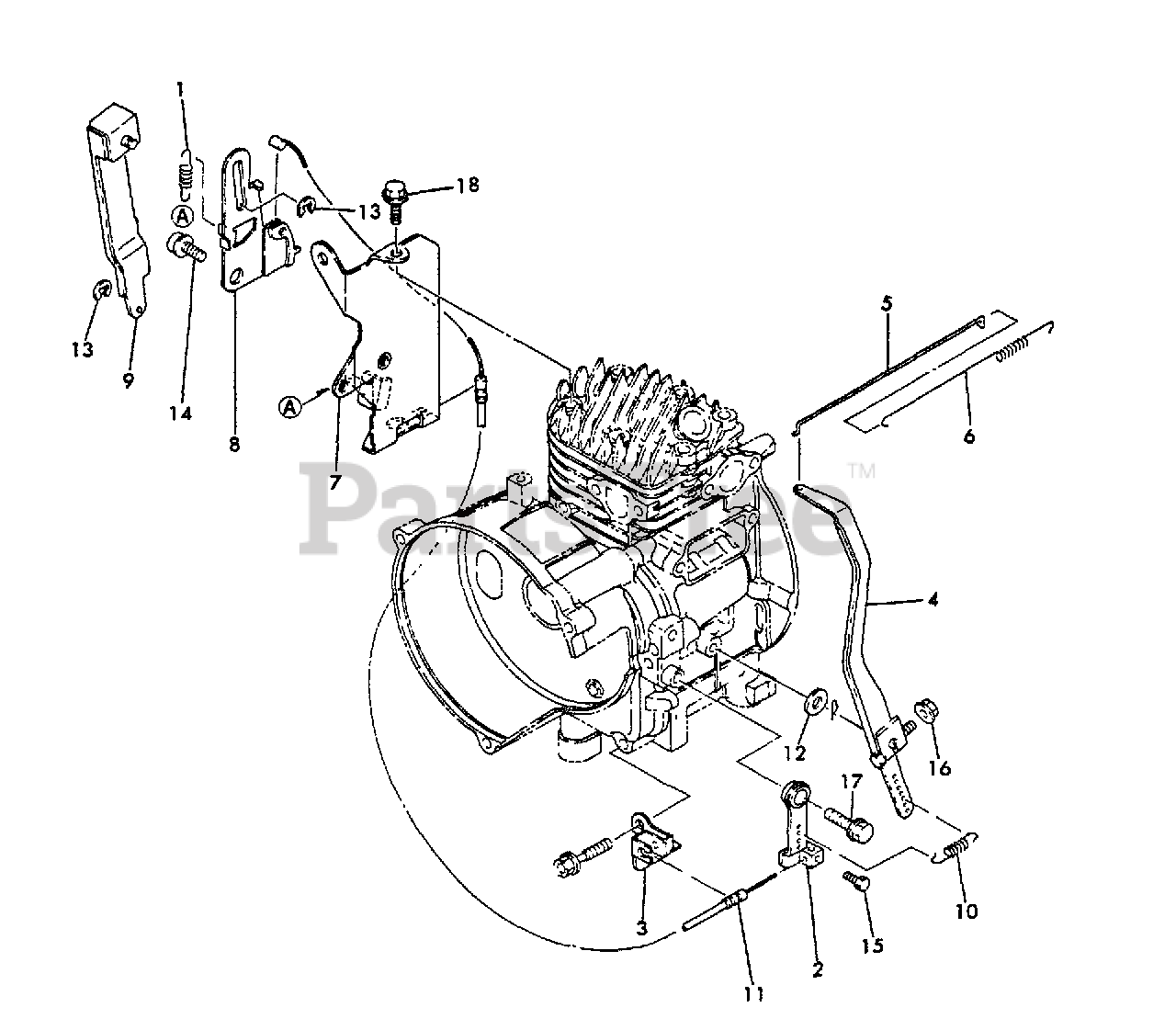

EG-750 - Echo Generator Throttle, Governor Parts Diagram

Generator

Throttle, Governor Parts Diagram

  • Title

1

Echo Y16066766020

SPRING, REGULATOR
(Superseded to Discontinued)

$

$

Not available

2

Echo Y16066766050

HANDLE ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo Y16066766110

WIRE HOLDER
(Superseded to Discontinued)

$

$

Not available

4

Echo Y16066766150

LEVER, GOVERNOR
(Superseded to Discontinued)

$

$

Not available

5

Echo Y16066766200

LINK, THROTTLE
(Superseded to Discontinued)

$

$

Not available

6

Echo Y16066766210

SPRING, TENSION
(Superseded to Discontinued)

$

$

Not available

7

Echo Y16066766300

BRACKET, CONT. LEVER
(Superseded to Discontinued)

$

$

Not available

8

Echo Y16066766310

LEVER, CONTROL
(Superseded to Discontinued)

$

$

Not available

9

Echo Y16066766320

LEVER, CONT. SHIFT
(Superseded to Discontinued)

$

$

Not available

10

Echo Y16066766330

SPRING, CONT. LEVER
(Superseded to Discontinued)

$

$

Not available

11

Echo Y16066766380

THROTTLE CABLE ASSY
(Superseded to Discontinued)

$

$

Not available

12

Echo Y16012076940

WASHER
(Superseded to Discontinued)

$

$

Not available

13

Echo Y22272000050

RING, RETAINING - 5
(Superseded to Discontinued)

$

$

Not available

14

Echo Y18321008850

SCREW M6×10

$

$

Not available

15

Echo Y26117040088

BOLT - 4×8 -- PLATED
(Superseded to Discontinued)

$

$

Not available

16

Echo Y26366060002

U-NUT M6
(Superseded to Discontinued)

$

$

Not available

17

Echo Y26476060142

BOLT - 6×8 -- PLATED
(Superseded to Discontinued)

$

$

Not available

18

Echo Y26476060142

BOLT - 6×8 -- PLATED
(Superseded to Discontinued)

$

$

Not available
