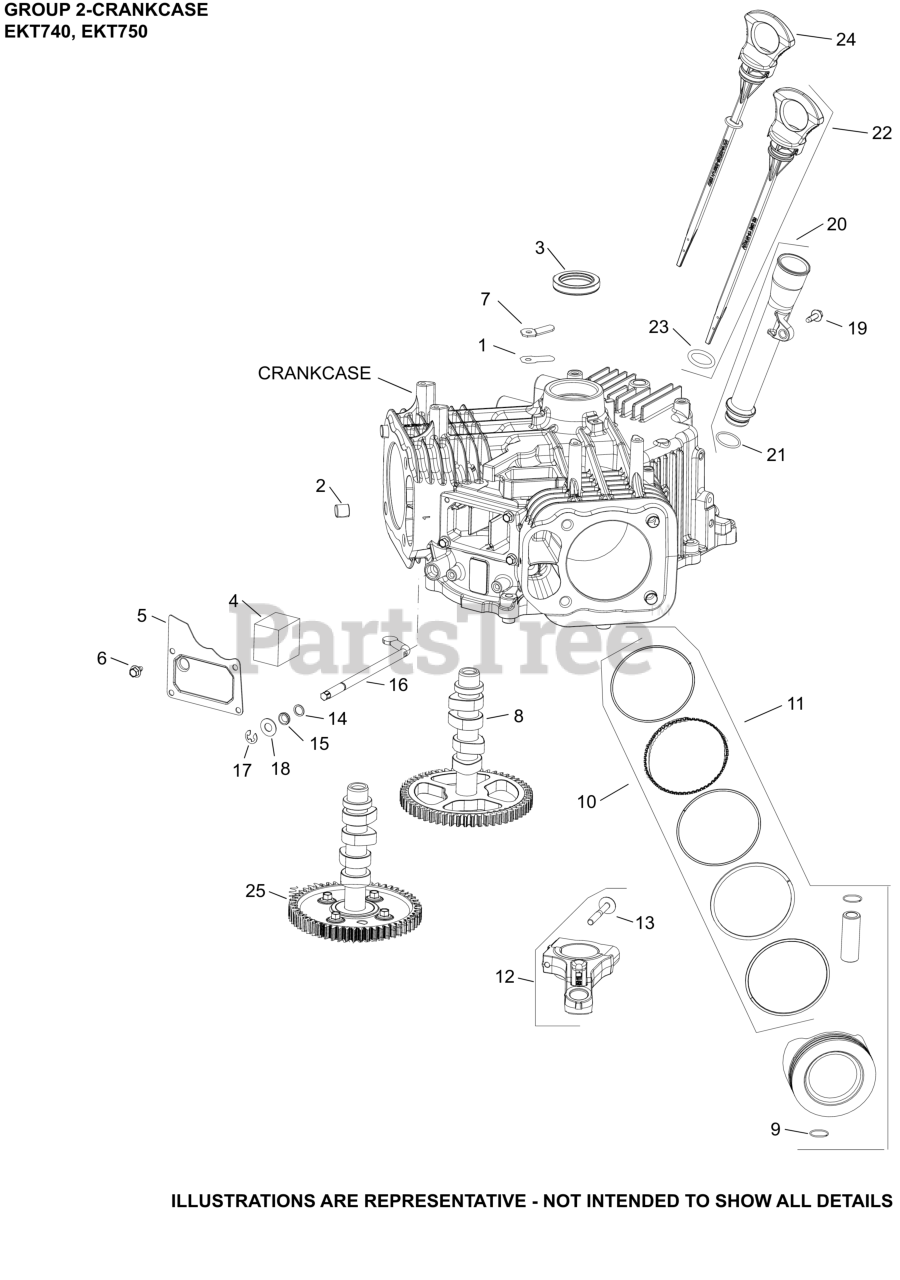

EKT750-3017 - Kohler 7500 Series PRO EFI Engine, Made for Konig Industries, 27hp, 20.1kW 02 CrankCase Parts Diagram

7500 Series PRO EFI Engine, Made for Konig Industries, 27hp, 20.1kW

02 CrankCase Parts Diagram

  • Title

1

Kohler 12 402 02-S

REED, BREATHER

$3.99

$

In Stock, only 1 left!

0

2

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, Qty 20+

0

3

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$8.99

$

In Stock, Qty 20+

0

4

Kohler 32 050 06-S

FILTER, BREATHER

$2.99

$

In Stock, Qty 12

0

5

Kohler 16 096 02-S

COVER, BREATHER MEDIA

$2.99

$

In Stock, only 3 left!

0

7

Kohler 66 018 04-S

RETAINER, REED

$4.99

$

In Stock, Qty 5

0

8

Kohler 32 010 07-S

CAMSHAFT ASSY

$96.99

$

In Stock, Qty 9

0

9

Kohler 24 018 01-S

RETAINER, PISTON PIN

$3.49

$

In Stock, Qty 6

0

11

Kohler 25 874 14-S

KIT,PSTN/RNG STYLE B(STD)

$209.99

$

In Stock, Qty 16

0

12

Kohler 25 067 04-S

ROD, ASSEMBLY CONNECTING

$71.99

$

In Stock, Qty 15

0

14

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, Qty 20+

0

15

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$3.99

$

In Stock, Qty 20+

0

16

Kohler 32 755 22-S

KIT, CROSS SHAFT

$5.49

$

In Stock, Qty 11

0

17

Kohler 32 154 03-S

CLIP, RETAINER GOVERNOR SHAFT

$2.49

$

In Stock, only 2 left!

0

18

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, Qty 11

0

19

Kohler 25 086 651-S

SCREW, THREAD FORMING

$2.99

$

Usually ships in 2-5 days

0

20

Kohler 32 123 14-S

TUBE ASSEMBLY, OIL FILL

$6.99

$

In Stock, Qty 7

0

21

Kohler 12 153 07-S

O-RING

$2.49

$

In Stock, Qty 10

0

22

Kohler 32 038 14-S

DIPSTICK, ASSY

$9.49

$

In Stock, only 2 left!

0

23

Kohler 25 153 09-S

O-RING

$4.49

$

In Stock, Qty 11

0
