EKT750-3017 - Kohler 7500 Series PRO EFI Engine, Made for Konig Industries, 27hp, 20.1kW 03 Lubrication Parts Diagram

7500 Series PRO EFI Engine, Made for Konig Industries, 27hp, 20.1kW

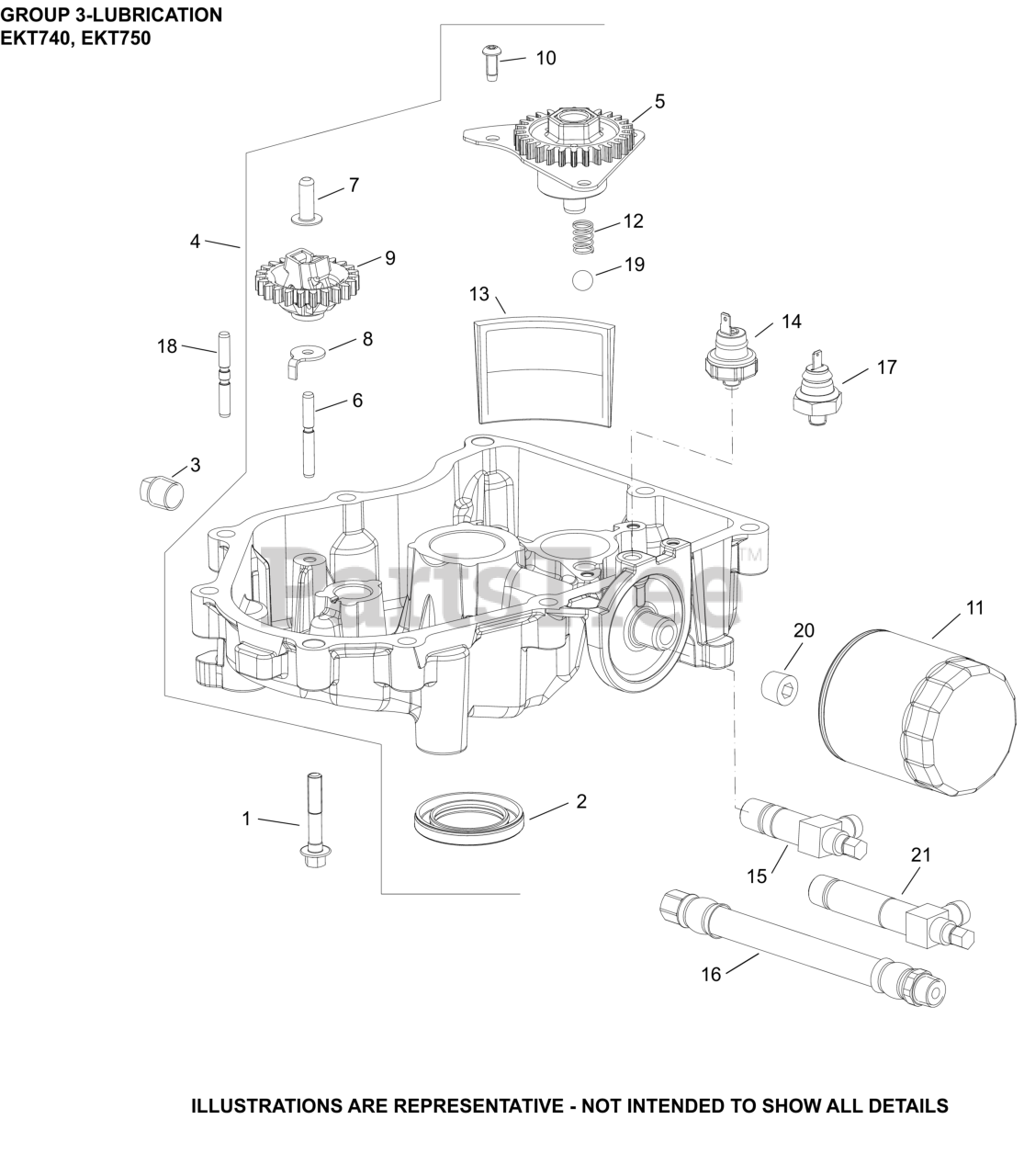

03 Lubrication Parts Diagram

  • Title

1

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$3.49

$

In Stock, Qty 20+

0

2

Kohler 25 032 06-S

OIL SEAL

$13.99

$

In Stock, Qty 20+

0

4

Kohler 32 199 34-S

OIL PAN ASSEMBLY, (ROLLER BURNISHED)

$197.99

$

In Stock, only 2 left!

0

5

Kohler 32 393 18-S

PUMP ASSEMBLY, OIL

$30.99

$

In Stock, Qty 5

0

7

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 20+

0

8

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, Qty 20+

0

9

Kohler 32 310 02-S

KIT, GOVERNOR GEAR

$10.99

$

In Stock, Qty 7

0

10

Kohler 25 086 792-S

SCREW, BUTTON HEAD

$2.49

$

Usually ships in 2-5 days

0

11

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

12

Kohler 24 089 74-S

SPRING, COMPRESSION

$2.49

$

In Stock, only 2 left!

0

13

Kohler 32 162 06-S

SCREEN, OIL

$5.49

$

In Stock, Qty 13

0

17

Kohler 25 099 42-S

SWITCH, OIL PRESSURE(NC 3-6 PSI TO OPEN)

$20.99

$

Usually ships in 2-5 days

0

18

Kohler 25 144 22-S

SHAFT, GOVERNOR GEAR

$5.49

$

Usually ships in 2-5 days

0

19

Kohler 25 194 03-S

PRESSURE RELIEF BALL

$3.49

$

In Stock, only 2 left!

0

20

Kohler 25 139 62-S

PLUG, PIPE CTSK 3/8"

$3.49

$

In Stock, only 2 left!

0

21

Kohler 25 462 13-S

VALVE, OIL DRAIN MEDIUM

$59.99

$

Usually ships in 2-5 days

0
