EKT750-3017 - Kohler 7500 Series PRO EFI Engine, Made for Konig Industries, 27hp, 20.1kW 08 Fuel System Parts Diagram

7500 Series PRO EFI Engine, Made for Konig Industries, 27hp, 20.1kW

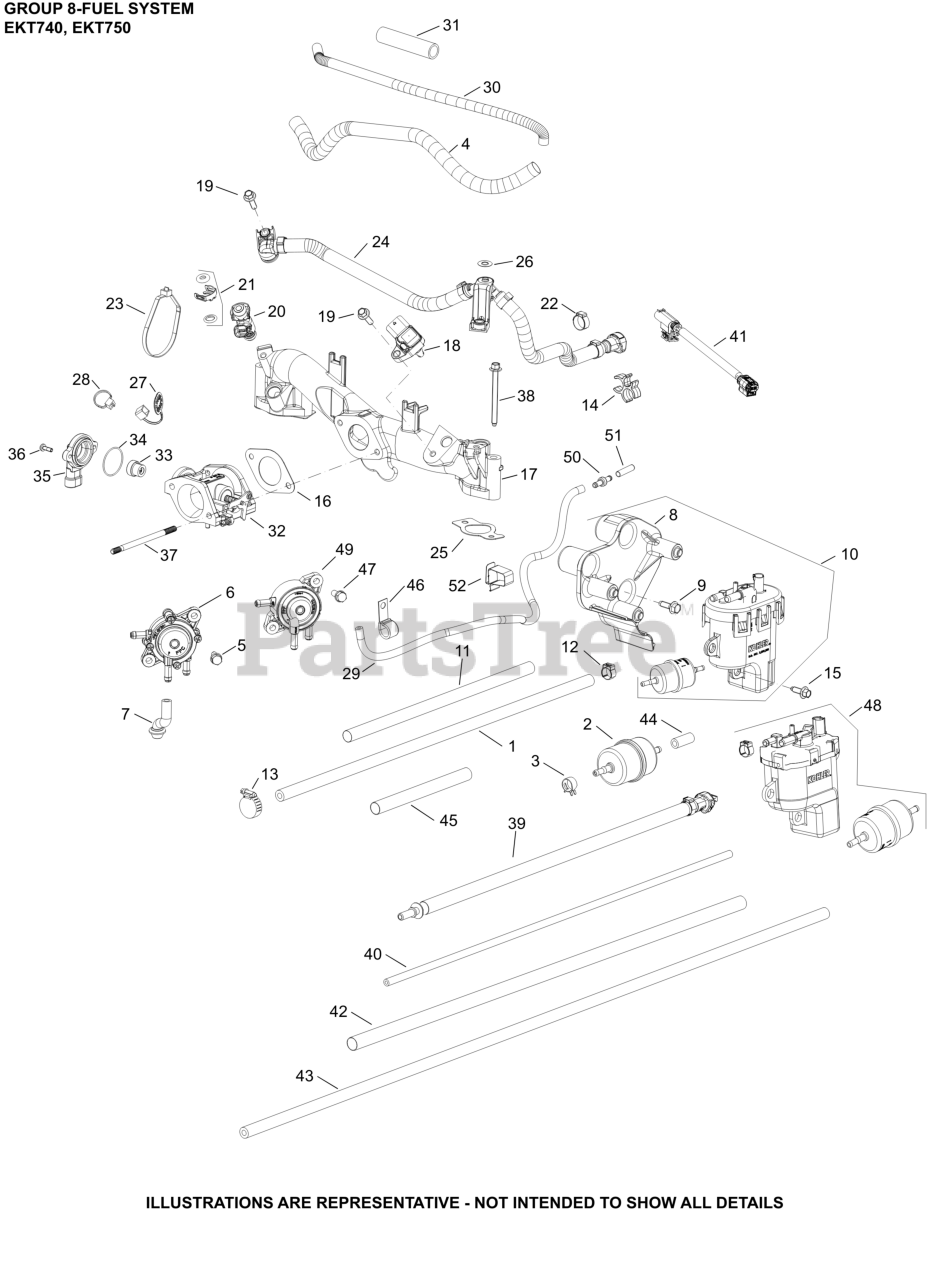

08 Fuel System Parts Diagram

  • Title

2

Kohler 24 050 13-S

FILTER, FUEL

$17.99

$

In Stock, Qty 20+

0

3

Kohler 25 237 37-S

SPRING CLAMP, HOSE

$2.49

$

In Stock, Qty 14

0

4

Kohler 25 431 33-S

SLEEVE, ANTI ABRASION

$7.49

$

Usually ships in 2-5 days

0

8

Kohler 16 063 07-S

BAFFLE, FUEL MODULE

$26.99

$

Usually ships in 2-5 days

0

9

Kohler 25 086 413-S

SCREW, THREAD FORMING

$2.99

$

In Stock, only 3 left!

0

11

Kohler 25 431 41-S

SLEEVE, INSULATING

$7.49

$

Usually ships in 2-5 days

0

12

Kohler 25 237 28-S

CLAMP, OETIKER

$2.99

$

In Stock, Qty 6

0

14

Kohler 25 018 08-S

RETAINER, HOSE

$2.49

$

Usually ships in 2-5 days

0

15

Kohler 25 086 658-S

SCREW, HEX FLANGE (M6 W/DOG POINT)

$2.49

$

Usually ships in 2-5 days

0

16

Kohler 16 041 02-S

GASKET, THROTTLE BODY

$2.49

$

In Stock, only 1 left!

0

17

Kohler 16 164 04-S

MANIFOLD MACHINED (EFI)

$115.99

$

Usually ships in 2-5 days

0

18

Kohler 25 418 13-S

SENSOR, T-MAP

$85.99

$

In Stock, only 2 left!

0

19

Kohler M-651020-S

SCREW, FLG M6x1.0x20

$2.49

$

In Stock, only 3 left!

0

20

Kohler 25 331 01-S

INJECTOR, FUEL

$102.99

$

In Stock, only 2 left!

0

21

Kohler 25 755 41-S

KIT, FUEL INJECTOR O-RING

$32.99

$

In Stock, only 1 left!

0

22

Kohler 24 237 17-S

CLAMP, HOSE

$2.49

$

In Stock, only 1 left!

0

23

Kohler 25 454 07-S

TIE

$2.49

$

Usually ships in 2-5 days

0

24

Kohler 24 399 36-S

FUEL HOSE ASSY(ECV,FCV,EZT,EKT,PCH,PCV)

$137.99

$

In Stock, only 2 left!

0

25

Kohler 24 041 79-S

KIT, INTAKE MANIFOLD GASKET

$3.49

$

In Stock, only 4 left!

0

26

Kohler 25 154 31-S

CLIP, RETAINER

$2.49

$

In Stock, only 2 left!

0

27

Kohler 24 173 08-S

CAP, CONNECTOR

$8.99

$

Usually ships in 2-5 days

0

28

Kohler 12 454 03-S

TIE, CABLE

$3.49

$

Usually ships in 2-5 days

0

29

Kohler 25 326 08-S

HOSE, EVAPORATIVE 20"- (#24326143S)
(Superseded to 24 326 143-S)

$5.49

$

In Stock, only 3 left!

0

30

Kohler 25 431 22-S

SLEEVE, ANTI-ABRASION

$5.49

$

In Stock, only 1 left!

0

31

Kohler 25 431 49-S

SLEEVE, CORRUGATED

$2.49

$

Usually ships in 2-5 days

0

32

Kohler 16 583 02-S

BODY ASSEMBLY, THROTTLE W/TPS

$169.99

$

Usually ships in 2-5 days

0

33

Kohler 25 152 09-S

MAGNET, TPS SENSOR

$3.99

$

Usually ships in 2-5 days

0

34

Kohler 25 153 17-S

O-RING, TPS SENSOR

$2.99

$

Usually ships in 2-5 days

0

35

Kohler 16 418 01-S

SENSOR, THROTTLE POSITION

$54.99

$

Usually ships in 2-5 days

0

36

Kohler 25 086 600-S

SCREW, M4

$2.49

$

Usually ships in 2-5 days

0

37

Kohler 25 072 33-S

STUD-USE 25 072 48-S

$

$

Not available

38

Kohler 25 086 691-S

SCREW, HEX FLANGE (M6 W/DOG POINT)

$2.49

$

In Stock, only 4 left!

0

47

Kohler 25 086 784-S

SCREW, HEX HEAD

$2.49

$

In Stock, only 3 left!

0

48

Kohler 25 393 19-S

KIT, FUEL PUMP MODULE

$359.99

$

In Stock, only 2 left!

0

49

Kohler 25 393 26-S

PUMP, FUEL (PULSE)

$

$

Currently unavailable

50

Kohler 17 294 12-S

FITTING, FUEL SYSTEM

$3.49

$

Usually ships in 2-5 days

0

51

Kohler 25 173 33-S

CAP, MASKING

$2.49

$

In Stock, only 1 left!

0

52

Kohler 32 154 02-S

CLIP, BLOWER HOUSING

$2.49

$

Usually ships in 2-5 days

0
