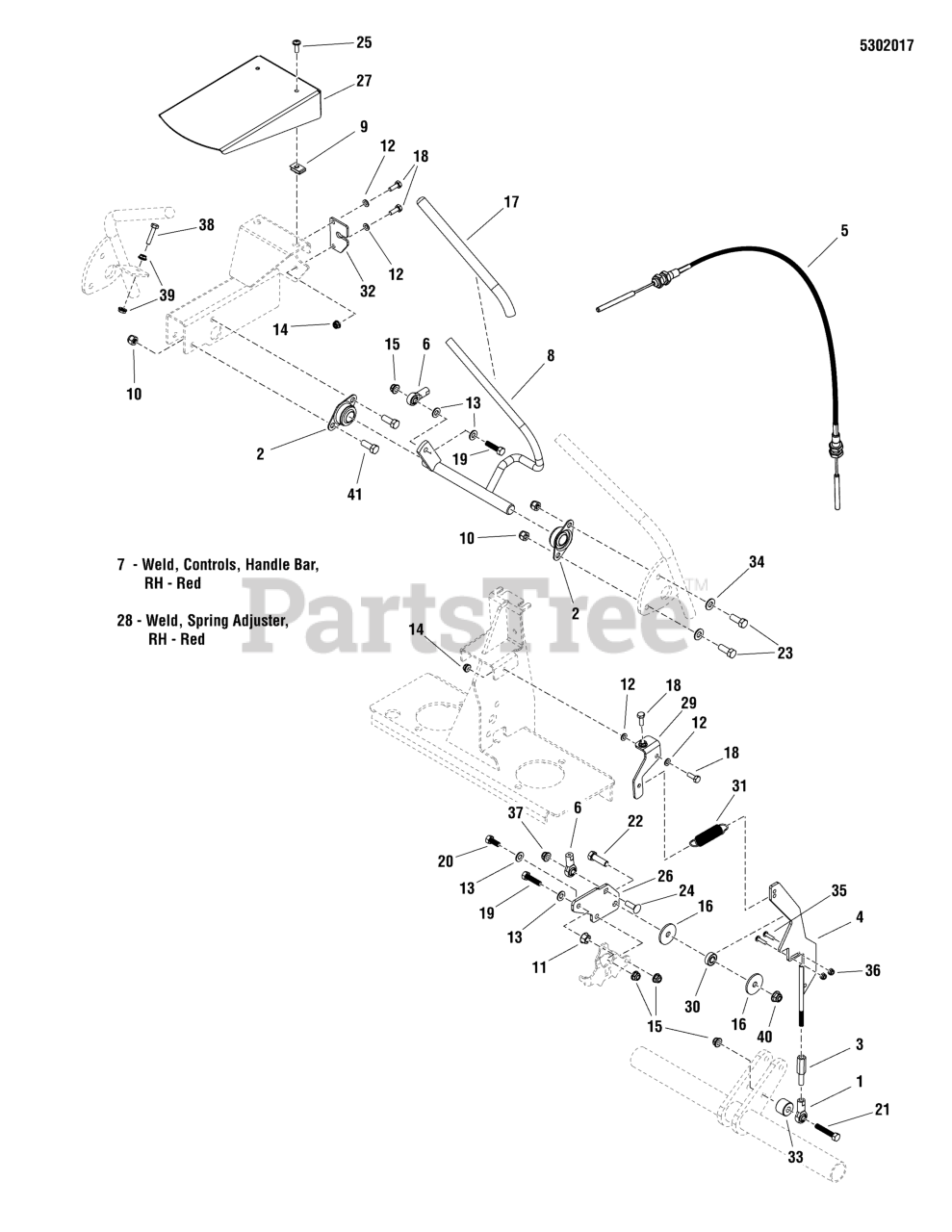

EVS (5900910) - Snapper Pro EVS Series 36" Stand-On Mower, 19hp Kawasaki Motion Control Group Parts Diagram

EVS Series 36" Stand-On Mower, 19hp Kawasaki

Motion Control Group Parts Diagram

  • Title

1

Snapper Pro 5104578

BALL JOINT 5/16-24 RH FEMALE STAMPED STL
(Superseded to 5104578YP)

$11.99

$

In Stock, only 2 left!

0

2

Snapper Pro 5100561

BEARING, BRONZE FLANGE, 3/4"
(Superseded to 5100561SM)

$14.99

$

In Stock, only 2 left!

0

3

Snapper Pro 5101243

ADJUSTER, ROD LINKAGE 5/16-24

$15.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5102149

WELD, CONTROL RAMP, EVO
(Superseded to 5102149FS)

$36.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5102273

CABLE, PUSH/PULL, 30" SPEED CONTROL
(Superseded to 5102273FS)

$98.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5101801

ROD END, FEMALE, 10-32 W 5/16" BORE
(Superseded to 5101801YP)

$19.99

$

In Stock, only 1 left!

0

7

Snapper Pro 5405636D

WELD, CONTROLS, HANDLE BAR, RH, EVO

Note: (NOT SHOWN)

$

$

Currently unavailable

8

Snapper Pro 5405638D

WELD, CONTROLS, HANDLE BAR, LH, EVO

$

$

Currently unavailable

9

Snapper Pro 5022665

BODY CLIP, 1/4-20 X 1/2 DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 8

0

11

Snapper Pro 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0

12

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

13

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

14

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

In Stock, only 1 left!

0

17

Snapper Pro 5101715

GRIP, FOAM, .48 x 10 x .125 Black
(Superseded to 5101715FS)

$7.49

$

Usually ships in 2-12 days

0

18

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

19

Snapper Pro 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

20

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

21

Snapper Pro 5025011X16

BOLT, 5/16-18 X 2.00 GD5
(Superseded to 5025011X16YP)

$3.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

24

Snapper Pro 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

25

Snapper Pro 5025299X6

USE 5106757 - SCREW,1/4-20X3/4, ZINC
(Superseded to 5106757)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper Pro 5404201D

PLATE, PUMP CONTROL, 36 - RED

$

$

Currently unavailable

27

Snapper Pro 5404625D

PLATE, MOTION CONTROL GUARD - RED

$

$

Currently unavailable

28

Snapper Pro 5404835D

WELD, SPRING ADJUSTER, RH - RED

$

$

Currently unavailable

29

Snapper Pro 5404836D

WELD, SPRING ADJUSTER, LH - RED

$

$

Currently unavailable

30

Snapper Pro 5102003

BEARING, .375" ID X .875" OD X .341" THK
(Superseded to 5102003YP)

$9.49

$

Usually ships in 2-12 days

0

31

Snapper Pro 5101339

SPRING-EXT, 3.281 x .751 x .075 WIRE
(Superseded to 5101339FS)

$13.99

$

Usually ships in 2-12 days

0

32

Snapper Pro 5404848D

PLATE, CABLE - RED

$

$

Currently unavailable

33

Snapper Pro 5043815

SPACER, .39 X 1.00 X .75
(Superseded to 5043815YP)

$10.99

$

Usually ships in 2-12 days

0

34

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

35

Snapper Pro 5025179X6

SCREW, #10-24 X 3/4 ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

36

Snapper Pro 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

37

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

38

Snapper Pro 5025010X10

BOLT, 1/4-20 X 1-1/4, GD5
(Superseded to 5025010X10SM)

$3.99

$

In Stock, Qty 9

0

39

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

40

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 15

0

41

Snapper Pro 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

42

Snapper Pro 5025526

SHIM, .375" X .625 X .031 THK

$

$

Currently unavailable
