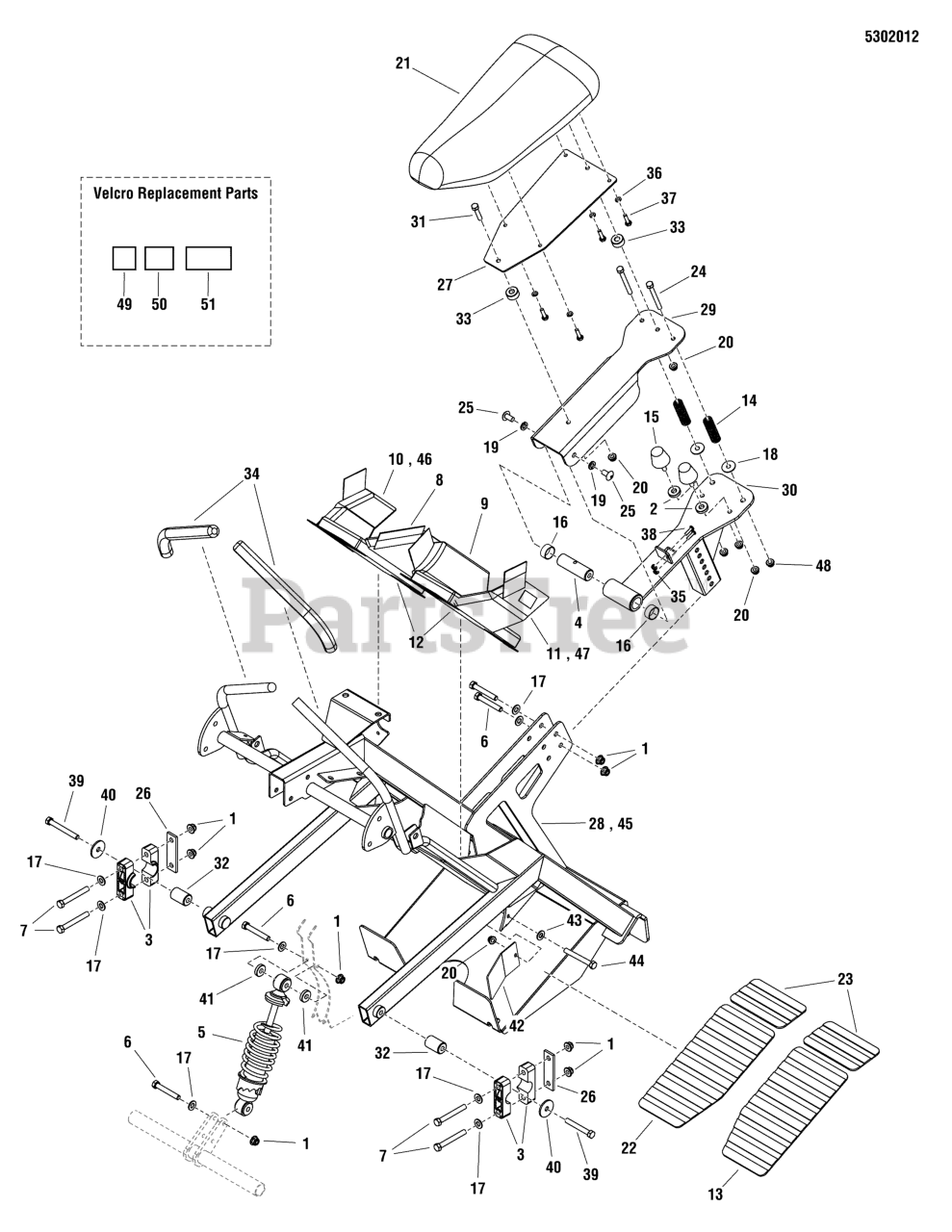

EVS (5900910) - Snapper Pro EVS Series 36" Stand-On Mower, 19hp Kawasaki Operator Platform Group Parts Diagram

EVS Series 36" Stand-On Mower, 19hp Kawasaki

Operator Platform Group Parts Diagram

  • Title

1

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 7

0

2

Snapper Pro 5044960

SPACER, .39 X 1.00 X .25
(Superseded to 5044960SM)

$5.49

$

Usually ships in 2-12 days

0

3

Snapper Pro 5100634

PIVOT BLOCK, PLASTIC
(Superseded to 5100634SM)

$7.49

$

Usually ships in 2-12 days

0

4

Snapper Pro 5101635

SPACER, 1.00 X 3.25 THRD BOTH ENDS

$26.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5101650

SHOCK ABSORBER

$219.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, Qty 5

0

8

Snapper Pro 5101802

KNEE PAD, INNER RH, EVOLUTION 36"/48"

$65.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5101803

KNEE PAD, INNER LH, EVOLUTION 36"/48"

$74.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5101804

KNEE PAD, OUTER RH, EVOLUTION 36"

$96.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5101805

KNEE PAD, OUTER LH, EVOLUTION 36"

$92.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5101806

KNEE PAD, CENTER, EVOLUTION 36"/48"

$108.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5101807

SAFETY WALK, EVOLUTION 36"

$

$

Currently unavailable

14

Snapper Pro 5021004

STAINLESS STEEL COMP. SPRING

$5.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5022612

BUMPER, RUBBER 5/16-18
(Superseded to 5022612SM)

$23.99

$

In Stock, only 2 left!

0

16

Snapper Pro 5023343

BUSHING, 1.00 X 1.13 X 1.38, PLASTIC
(Superseded to 5023343SM)

$6.49

$

In Stock, only 3 left!

0

17

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

19

Snapper Pro 5025171

WASHER, 3/8 SPLIT LOCK
(Superseded to 5025171SM)

$3.99

$

In Stock, only 3 left!

0

20

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper Pro 5101648

SEAT, EVOLUTION

$420.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5101828

SAFETY WALK, 6.00 X 11.25

$10.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5101829

SAFETY WALK, 3.5 X 6.00

$4.49

$

Usually ships in 2-12 days

0

24

Snapper Pro 5025011X26

BOLT, 5/16-18 X 3-1/4 GD5
(Superseded to 5025011X26FS)

$2.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5025075X6

BOLT, 3/8-16 X 3/4,ALLEN BUTTON
(Superseded to 5025075X6SM)

$2.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5403925A

PLATE, PIVOT BLOCK SUPPORT - BLK
(Superseded to 5403925AAFS)

$3.49

$

In Stock, only 1 left!

0

27

Snapper Pro 5404206D

PLATE, SEAT RAIL ADAPTER - RED

$

$

Currently unavailable

28

Snapper Pro 5404283D

WELD, OPERATOR COMPARTMENT, 36

$

$

Currently unavailable

29

Snapper Pro 5404336D

PLATE, SEAT MOUNT, TOP - RED

$

$

Currently unavailable

30

Snapper Pro 5404340D

WELD, SEAT MOUNT - RED

$

$

Currently unavailable

31

Snapper Pro 5025145X14

BOLT, 5/16-18 X 1-3/4, CARRIAGE

$

$

Currently unavailable

32

Snapper Pro 5101846

SPACER, .515 X 1.00 X 1.22, YZ

$8.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 5046860

SPACER, .39 X 1.00 X .50
(Superseded to 5046860SM)

$6.49

$

In Stock, only 1 left!

0

34

Snapper Pro 5101830

FOAM, GRIP, 3/4" ID X 12" LG X .187 BLK

$6.99

$

Usually ships in 2-12 days

0

35

Snapper Pro 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

36

Snapper Pro 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$3.99

$

Usually ships in 2-12 days

0

37

Snapper Pro 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

Usually ships in 2-12 days

0

38

Snapper Pro 5025179X6

SCREW, #10-24 X 3/4 ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

39

Snapper Pro 5025018X18

BOLT, 1/2-20 X 2-1/4 GD5 CZ
(Superseded to 5025018X18SM)

$3.99

$

Usually ships in 2-12 days

0

40

Snapper Pro 5025150

WASHER, 1/2 USS
(Superseded to 5025150SM)

$3.99

$

In Stock, only 3 left!

0

41

Snapper Pro 5101965

SPACER, .390 X 1.00 X .190
(Superseded to 5101965YP)

$6.49

$

In Stock, only 1 left!

0

42

Snapper Pro 5404912D

GUARD, FOOT, EVO 36-48 - RED

$

$

Currently unavailable

43

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

44

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

45

Snapper Pro 5404176D

WELD, OPERATOR COMPARTMENT, 48 - RED

$

$

Currently unavailable

46

Snapper Pro 5101810

KNEE PAD, OUTER RH, EVOLUTION 48/52

$85.99

$

Usually ships in 2-12 days

0

47

Snapper Pro 5101811

KNEE PAD, OUTER LH, EVOLUTION 48/52

$85.99

$

Usually ships in 2-12 days

0

48

Snapper Pro 5025528

ACORN NUT, 5/16-18 S/S

Note: (USE LOCTITE 271 TO INSTALL)

$3.99

$

Usually ships in 2-12 days

0

49

Snapper Pro 5101913

VELCRO, 2" X 2", HOOK MATERIAL

$3.99

$

Usually ships in 2-12 days

0

50

Snapper Pro 5101914

VELCRO, 2" X 2-1/2", HOOK MATERIAL

$4.99

$

Usually ships in 2-12 days

0

51

Snapper Pro 5101916

VELCRO, 2" X 4", HOOK MATERIAL

$6.99

$

Usually ships in 2-12 days

0
