EVS (5900910) - Snapper Pro EVS Series 36" Stand-On Mower, 19hp Kawasaki Parking Brake Group Parts Diagram

EVS Series 36" Stand-On Mower, 19hp Kawasaki

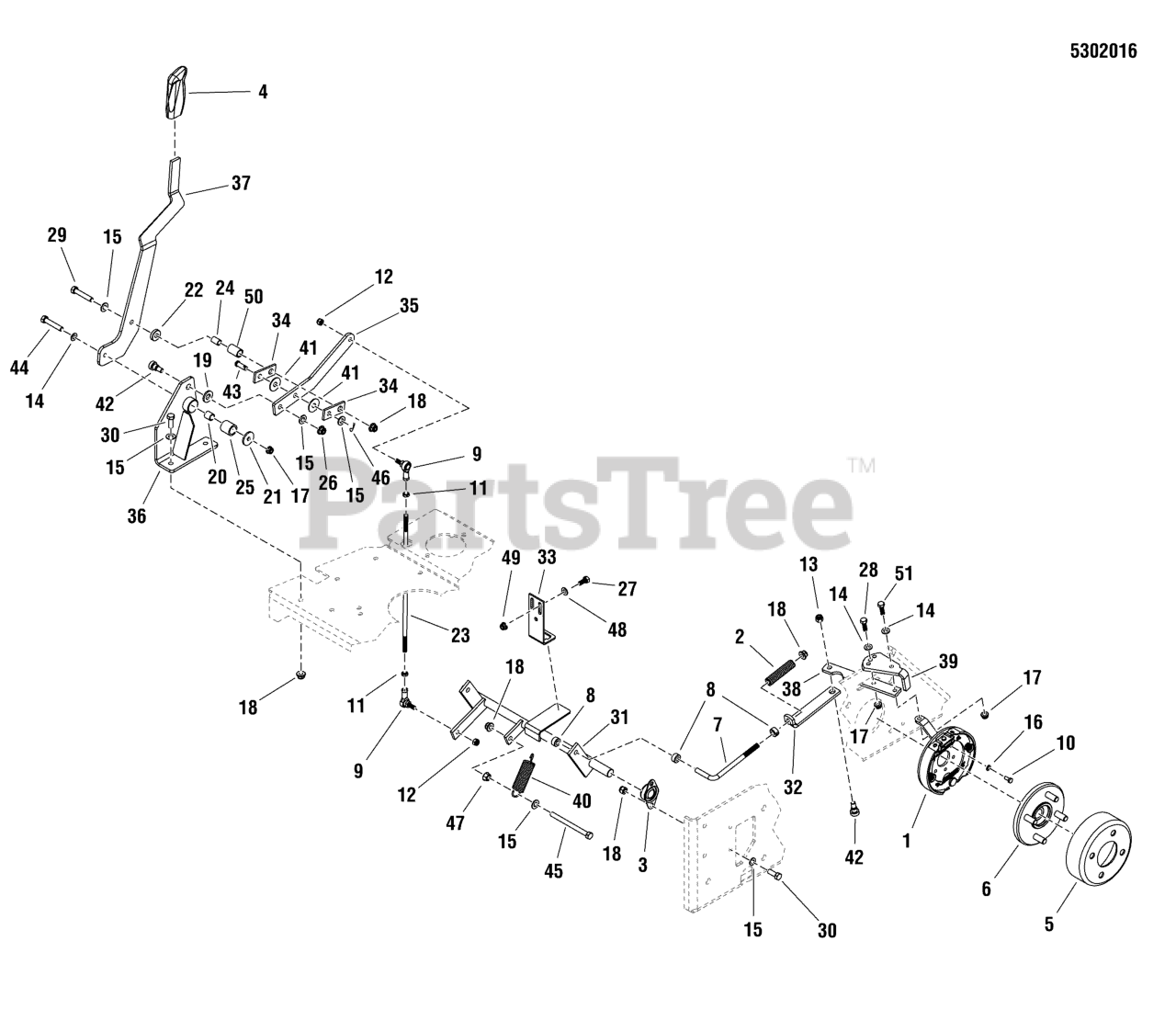

Parking Brake Group Parts Diagram

  • Title

1

Snapper Pro 5101628

CAM BRAKE SHOE ASSM, KNOTT

$186.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5023242

SPRING-COMP, .496ID X 3.00LG X .112WR
(Superseded to 5023242SM)

$6.99

$

In Stock, only 1 left!

0

3

Snapper Pro 5021098

BEARING, BRONZE FLANGE, 3/4"
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 7

0

4

Snapper Pro 5100171

GRIP, BLACK FLEXIBLE
(Superseded to 5100171SM)

$13.99

$

In Stock, only 1 left!

0

5

Snapper Pro 5023367

BRAKE DRUM

$

$

Currently unavailable

6

Snapper Pro 5023309

HUB-W/STUD, 1TPR 800645
(Superseded to 5023309SM)

$207.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5101751

ROD, BRAKE LINKAGE

$7.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5010546

COLLAR, 3/8 SET
(Superseded to 5010546SM)

$5.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5104495

BALL JOINT 5/16-24 LH FEMALE W/STUD, BR
(Superseded to 5104495YP)

$22.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5023215

CAPSCREW-HEX HEAD M6-1.0X 14MM
(Superseded to 5023215SM)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5023216

NUT, 5/16-24 JAM
(Superseded to 5023216SM)

$2.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 6

0

13

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 8

0

14

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

15

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 15

0

19

Snapper Pro 5025440

WASHER, 1/2 GD9 YZ
(Superseded to 5025440SM)

$4.49

$

In Stock, only 1 left!

0

20

Snapper Pro 5042134

SPACER, .32 X .75 X 1.06
(Superseded to 5042134SM)

$6.49

$

Usually ships in 2-12 days

0

21

Snapper Pro 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

22

Snapper Pro 5044960

SPACER, .39 X 1.00 X .25
(Superseded to 5044960SM)

$5.49

$

In Stock, only 2 left!

0

23

Snapper Pro 5045914

ROD, CHUTE PIVOT

$

$

Currently unavailable

24

Snapper Pro 5047199

SPACER, .38 X .50 X .75
(Superseded to 5047199FS)

$7.49

$

Usually ships in 2-12 days

0

25

Snapper Pro 5020876B

BUSHING, BRASS, 3/4 X 1 X 1
(Superseded to 5020876BSM)

$11.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5025100

NUT, 3/8-16 SIDE LOCK
(Superseded to 5025100SM)

$3.49

$

Usually ships in 2-12 days

0

27

Snapper Pro 5025010X6

BOLT,1/4-18 X 3/4 GD5
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

28

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

29

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, Qty 6

0

30

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

31

Snapper Pro 5404595D

WELD, BRAKE SHAFT, 36 - RED

$

$

Currently unavailable

32

Snapper Pro 5405168D

BAR, BRAKE BRACKET -RED

$

$

Currently unavailable

33

Snapper Pro 5404599D

PLATE, SWITCH BRACKET - RED

$

$

Currently unavailable

34

Snapper Pro 5404603D

PLATE, BRAKE HANDLE TAB - RED

$8.49

$

Usually ships in 2-12 days

0

35

Snapper Pro 5404604D

PLATE, BRAKE HANDLE BRACKET - RED

$24.99

$

Usually ships in 2-12 days

0

36

Snapper Pro 5404627D

WELD, BRAKE HANDLE MOUNT - RED

$

$

Currently unavailable

37

Snapper Pro 5404866D

PLATE, HANDLE, PARKING BRAKE - RED

$

$

Currently unavailable

38

Snapper Pro 5405166D

LINKAGE, BREAKE LOWER, 36 - RED

$

$

Currently unavailable

39

Snapper Pro 5405163D

PLATE, LINKAGE ADJUSTABLE, LH - RED

$

$

Currently unavailable

40

Snapper Pro 1608395

SPRING-EXTN 1.040ODX 04.000LG .105WIRE D

$15.99

$

Usually ships in 2-12 days

0

41

Snapper Pro 5025165

WASHER-3/8 FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 3 left!

0

42

Snapper Pro 5025356

BOLT, 3/8-16 X 3/8, 1/2 SHOULDER
(Superseded to 5025356SM)

$6.99

$

In Stock, Qty 6

0

43

Snapper Pro 5025214X8

PIN, CLEVIS, 3/8 X 1
(Superseded to 5025214X8FS)

$6.99

$

Usually ships in 2-12 days

0

44

Snapper Pro 5025011X16

BOLT, 5/16-18 X 2, GD5
(Superseded to 5025011X16YP)

$3.99

$

Usually ships in 2-12 days

0

45

Snapper Pro 5025013X36

BOLT, 3/8-16 X 4-1/2" GD5 CZ
(Superseded to 5025013X36YP)

$5.99

$

In Stock, only 3 left!

0

46

Snapper Pro 5025203X6

COTTER PIN, 1/8 X 3/4
(Superseded to 5025203X6SM)

$3.99

$

In Stock, only 1 left!

0

47

Snapper Pro 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 1 left!

0

48

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

49

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

50

Snapper Pro 5101928

SPACER, .564 X .904 X .310, YZ

$6.49

$

Usually ships in 2-12 days

0

51

Snapper Pro 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

52

Snapper Pro 5405164D

PLATE, LINKAGE ADJUSTABLE,RH - RED

Note: (NOT SHOWN)

$

$

Currently unavailable
