EVS (5900910) - Snapper Pro EVS Series 36" Stand-On Mower, 19hp Kawasaki Wheel & Tire Group Parts Diagram

EVS Series 36" Stand-On Mower, 19hp Kawasaki

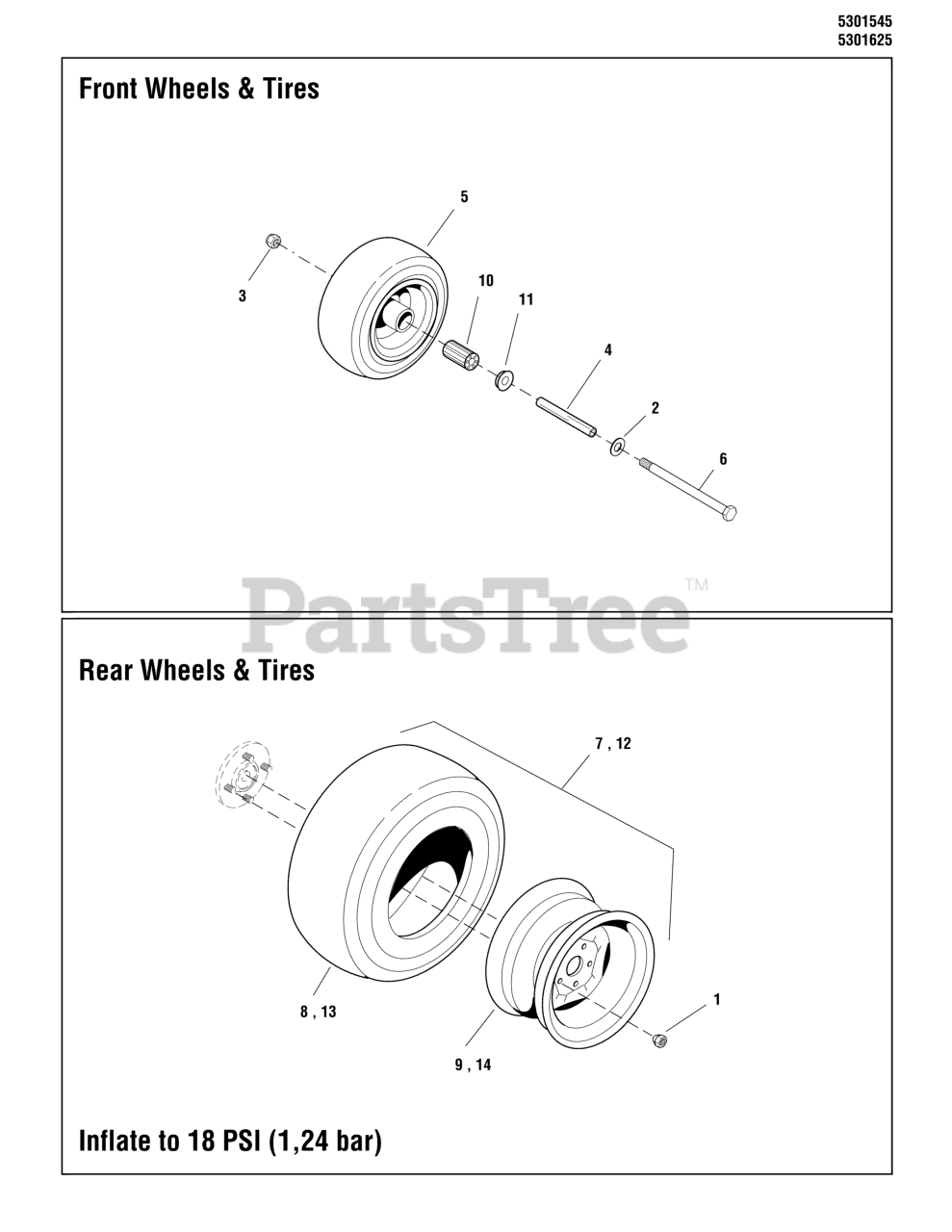

Wheel & Tire Group Parts Diagram

  • Title

1

Snapper Pro 5020601

NUT, 1/2-20, FOR WHEEL BOLT SILVER
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 9

0

2

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 7

0

3

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 9

0

4

Snapper Pro 5045996

CASTER AXLE DDSH
(Superseded to 5045996SM)

$15.99

$

In Stock, only 1 left!

0

5

Snapper Pro 5100715

TIRE/WHEEL ASSM 11/4.00-5 FLAT FREE
(Superseded to 5100715YP)

$154.99

$

In Stock, only 1 left!

0

6

Snapper Pro 5025017X56

BOLT, HEX, 1/2-13 X 7, GD 8, YZ
(Superseded to 5025017X56YP)

$14.99

$

In Stock, only 1 left!

0

7

Snapper Pro 5101277

TIRE ASSM, 18 X 8.5 X 10

Note: (36" Models Only)

$295.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5101277X1

TIRE, 18 X 8.5 X 10

Note: (SV)

$154.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5101277X2

RIM, 10 X 7, 4/4 BOLT CIRCLE, 2.625 POS

Note: (SV)

$122.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5101418X1

BEARING, CASTER WHEEL

$27.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5021043

BEARING, RETAINER

$6.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5101661

TIRE/WHEEL ASM, 22X10.00 - 10 TURF MASTE

Note: (48" & 52" Models)

$326.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5100006X1

TIRE, 22 X 10 X 10
(Superseded to 5100006X1FS)

$192.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5101661X1

WHEEL, 22 X 10 X 10

$201.99

$

Usually ships in 2-12 days

0
