EZT715-3000 - Kohler Confidant EFI Engine, Basic Version, 20hp, 725cc 02 CrankCase Parts Diagram

Confidant EFI Engine, Basic Version, 20hp, 725cc

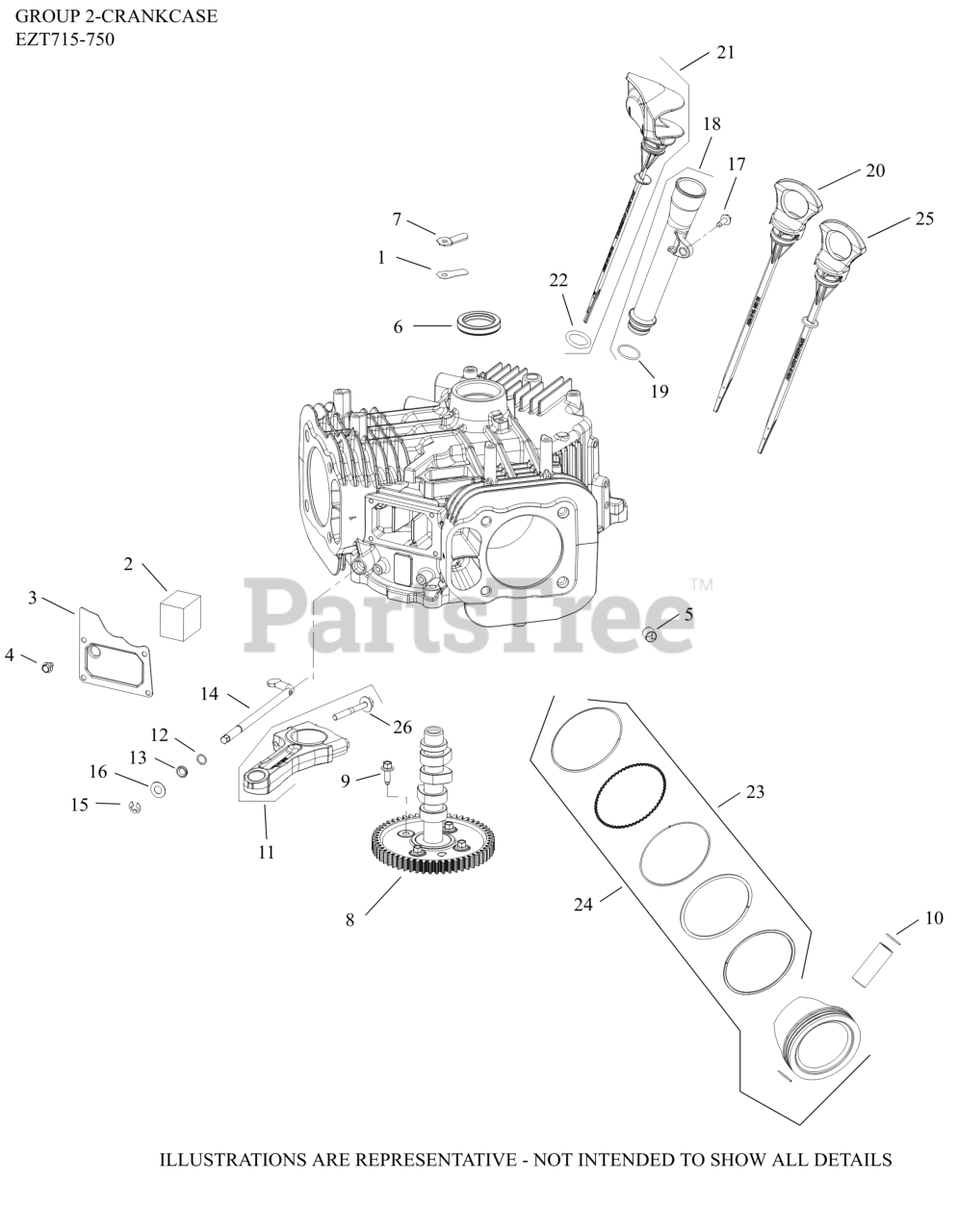

02 CrankCase Parts Diagram

  • Title

1

Kohler 12 402 02-S

REED, BREATHER

$3.99

$

In Stock, only 1 left!

0

2

Kohler 32 050 06-S

FILTER, BREATHER

$2.99

$

In Stock, Qty 6

0

3

Kohler 16 096 02-S

COVER, BREATHER MEDIA

$2.99

$

In Stock, only 1 left!

0

4

Kohler 25 086 400-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

5

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, Qty 8

0

6

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$7.49

$

In Stock, Qty 20+

0

7

Kohler 66 018 04-S

RETAINER, REED

$4.99

$

In Stock, Qty 8

0

8

Kohler 32 010 07-S

CAMSHAFT ASSY

$83.99

$

In Stock, Qty 9

0

10

Kohler 24 018 01-S

RETAINER, PISTON PIN

$2.49

$

In Stock, only 2 left!

0

11

Kohler 25 067 04-S

ROD, ASSEMBLY CONNECTING

$59.99

$

In Stock, Qty 17

0

12

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, Qty 9

0

13

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$3.49

$

In Stock, Qty 19

0

14

Kohler 32 755 22-S

KIT, CROSS SHAFT

$4.49

$

Usually ships in 2-5 days

0

15

Kohler 32 154 03-S

CLIP, RETAINER GOVERNOR SHAFT

$2.49

$

Usually ships in 2-5 days

0

16

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, Qty 9

0

17

Kohler 25 086 651-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 1 left!

0

18

Kohler 32 123 14-S

TUBE ASSEMBLY, OIL FILL

$6.99

$

In Stock, only 1 left!

0

19

Kohler 12 153 07-S

O-RING

$2.49

$

In Stock, Qty 7

0

20

Kohler 32 038 14-S

DIPSTICK, ASSY

$9.49

$

In Stock, Qty 5

0

22

Kohler 25 153 09-S

O-RING

$3.49

$

In Stock, Qty 5

0

23

Kohler 25 108 01-S

RING SET(STD)STYLE B-1.2mm Tp RING THICK

$63.99

$

In Stock, only 1 left!

0

23

Kohler 25 108 02-S

RING SET(.08)STYLE B-1.2mm RING THICK

$25.99

$

In Stock, only 1 left!

0

23

Kohler 25 108 03-S

RING SET(.25)STYLE B-1.2mm Tp RING THICK

$25.99

$

Usually ships in 2-5 days

0

23

Kohler 25 108 04-S

RING SET(.50)STYLE B-1.2mm Tp RING THICK

$102.99

$

Usually ships in 2-5 days

0

24

Kohler 25 874 13-S

KIT, PISTON 725CC (STD) STYLE B

$269.99

$

In Stock, only 3 left!

0

24

Kohler 25 874 15-S

KIT, PISTON 725CC (.08) STYLE B

$261.99

$

Usually ships in 2-5 days

0

24

Kohler 25 874 16-S

KIT, PISTON 725CC (.25) STYLE B

$261.99

$

In Stock, only 1 left!

0

24

Kohler 25 874 17-S

KIT, PISTON 725CC (.50) STYLE B

$261.99

$

Usually ships in 2-5 days

0

26

Kohler 25 086 452-S

KIT, ROD BOLTS-(#25086677S)
(Superseded to 25 086 677-S)

$2.49

$

In Stock, only 4 left!

0
