EZT740-3002 - Kohler Confidant EFI Engine, Basic Version, 25hp, 747cc 05 Ignition/Charging Parts Diagram

Confidant EFI Engine, Basic Version, 25hp, 747cc

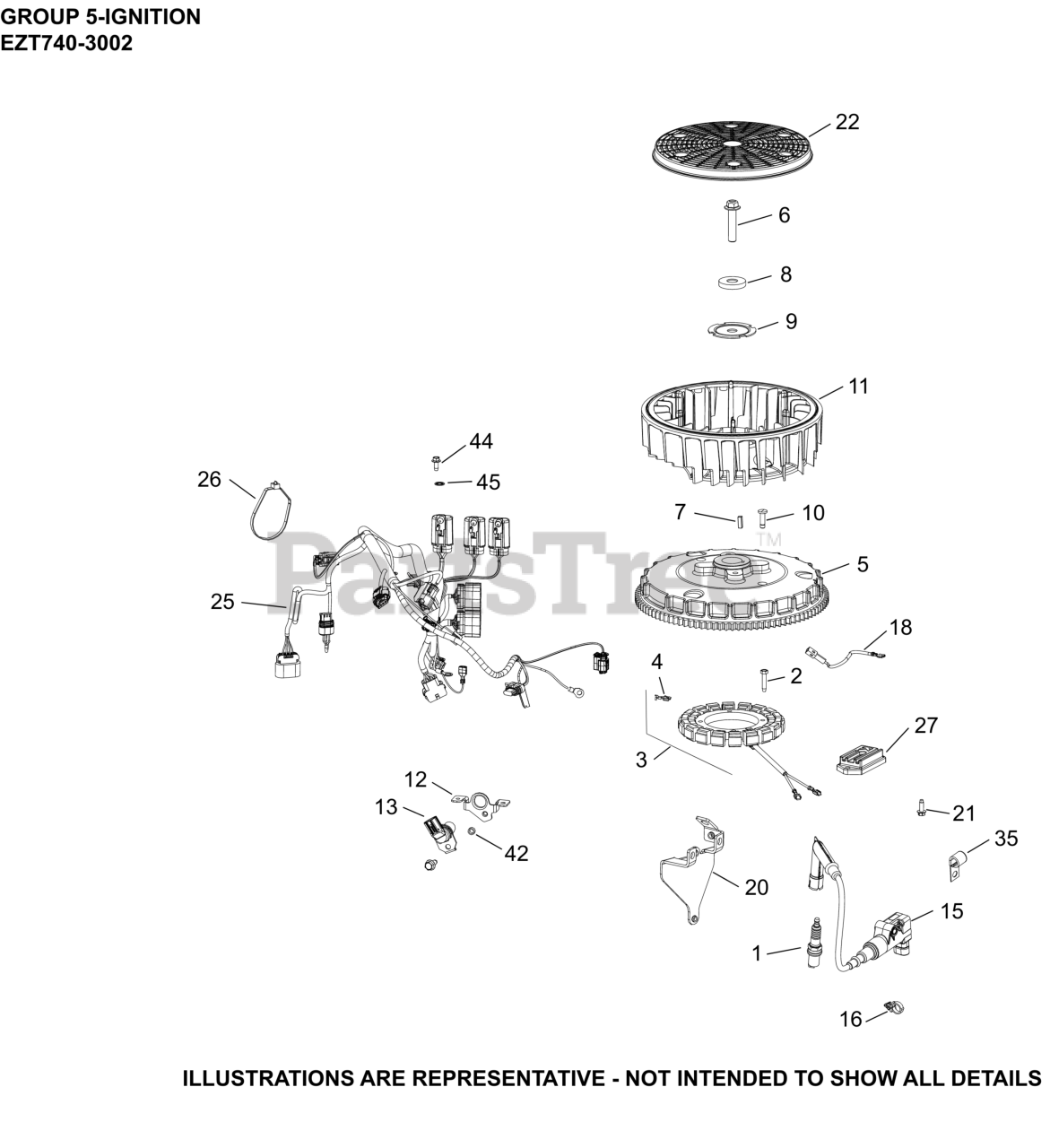

05 Ignition/Charging Parts Diagram

  • Title

1

Kohler 25 132 14-S

SPARK PLUG, RFI

$15.99

$

Usually ships in 2-5 days

0

2

Kohler 25 086 402-S

SCREW, THREAD FORMING

$2.99

$

In Stock, only 2 left!

0

3

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

$149.99

$

In Stock, Qty 12

0

4

Kohler 25 452 01-S

TERMINAL

$5.49

$

In Stock, only 1 left!

0

5

Kohler 16 025 01-S

FLYWHEEL, ASSEMBLY

$193.99

$

In Stock, only 1 left!

0

6

Kohler 25 086 361-S

SCREW, HEX FLANGE

$4.49

$

Usually ships in 2-5 days

0

7

Kohler 25 340 04-S

KEY, SQUARE

$3.99

$

In Stock, only 2 left!

0

8

Kohler 25 468 09-S

WASHER, FLAT

$6.49

$

In Stock, only 2 left!

0

9

Kohler 20 146 05-S

PLATE, FAN MOUNTING

$2.99

$

In Stock, only 2 left!

0

10

Kohler 32 018 03-S

RETAINER, FLYWHEEL FAN

$2.49

$

In Stock, only 2 left!

0

11

Kohler 32 157 04-S

FAN

$15.99

$

In Stock, only 3 left!

0

12

Kohler 25 126 18-S

BRACKET, SENSOR

$5.49

$

In Stock, only 1 left!

0

13

Kohler 25 418 01-S

SENSOR, SPEED

$

$

Not available

15

Kohler 25 519 04-S

COIL, IGNITION - EFI (RFI/EMC)

$215.99

$

In Stock, only 2 left!

0

16

Kohler 62 154 05-S

CLIP

$11.99

$

Usually ships in 2-5 days

0

18

Kohler 16 518 01-S

LEAD, REGULATOR RECTIFIER JUMPER

$5.49

$

Usually ships in 2-5 days

0

20

Kohler 16 126 03-S

BRACKET, ECU

$7.49

$

Usually ships in 2-5 days

0

21

Kohler 25 086 651-S

SCREW, THREAD FORMING

$2.99

$

In Stock, only 2 left!

0

22

Kohler 32 162 03-S

SCREEN, GRASS

$5.49

$

In Stock, only 3 left!

0

25

Kohler 16 176 02-S

HARNESS, W/TEMP SENSOR

$288.99

$

Usually ships in 2-5 days

0

26

Kohler 25 454 07-S

TIE

$2.49

$

Usually ships in 2-5 days

0

27

Kohler 25 403 38-S

REG/RECT (15AMP,HW,OVP)

$99.99

$

Usually ships in 2-5 days

0

35

Kohler 48 154 01-S

CLIP, CABLE (KM)

$2.49

$

In Stock, only 2 left!

0

42

Kohler 25 112 27-S

SPACER

$2.49

$

Usually ships in 2-5 days

0

44

Kohler 25 086 693-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

45

Kohler X-22-9-S

WASHER, INT TOOTH LOCK #10

$3.99

$

In Stock, only 1 left!

0

NI

Kohler 16 584 18-S

MODULE, ECU

$284.99

$

Usually ships in 2-5 days

0

NI

Kohler 25 086 786-S

SCREW, HEX FLANGE

$2.49

$

In Stock, only 2 left!

0
