FCV740-3011 - Kohler Command PRO EFI Engine, Made for John Deere, 25hp 08 Fuel System Parts Diagram

Command PRO EFI Engine, Made for John Deere, 25hp

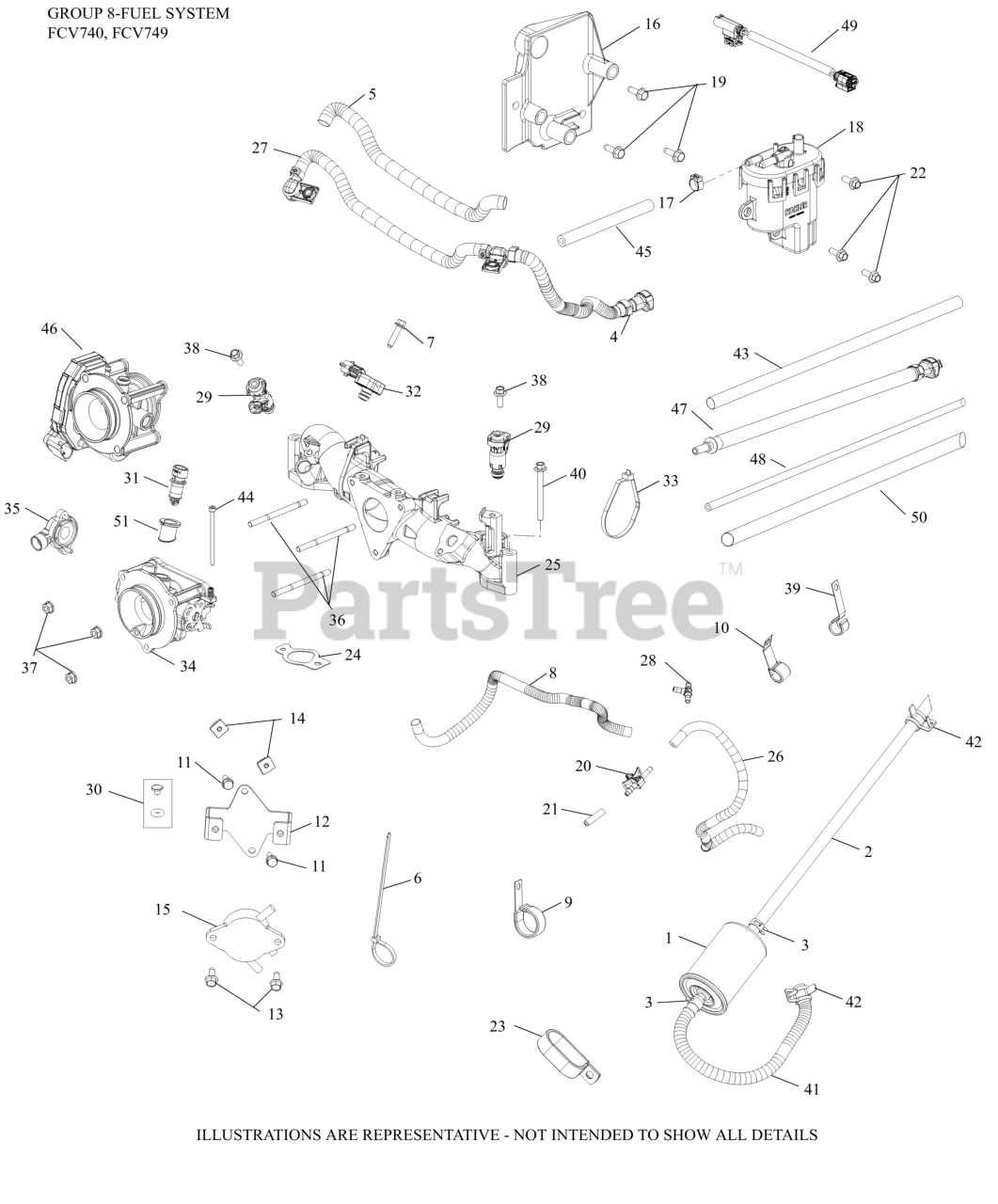

08 Fuel System Parts Diagram

  • Title

1

Kohler 24 050 03-S

FILTER, FUEL

$83.99

$

In Stock, only 2 left!

0

2

Kohler 25 111 71-S

HOSE, FUEL LOW PERM

$47.99

$

Usually ships in 2-5 days

0

3

Kohler 25 237 08-S

CLAMP, BAND SPRING HOSE-(#2523737S)
(Superseded to 25 237 37-S)

$2.49

$

In Stock, Qty 20+

0

3

Kohler 25 237 37-S

SPRING CLAMP, HOSE

$2.49

$

In Stock, Qty 20+

0

4

Kohler 24 237 17-S

CLAMP, HOSE

$2.49

$

In Stock, only 1 left!

0

5

Kohler 25 431 12-S

SLEEVE, FUEL LINE

$10.99

$

In Stock, only 1 left!

0

6

Kohler 25 454 04-S

TIE

$3.49

$

Usually ships in 2-5 days

0

6

Kohler 25 454 05-S

TIE

$2.49

$

In Stock, only 2 left!

0

8

Kohler 25 431 22-S

SLEEVE, ANTI-ABRASION

$5.99

$

Usually ships in 2-5 days

0

9

Kohler 25 154 09-S

CLIP, CABLE

$3.99

$

Usually ships in 2-5 days

0

10

Kohler 25 154 26-S

CLIP, CABLE

$2.99

$

Usually ships in 2-5 days

0

11

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

12

Kohler 24 126 183-S

BRACKET, FUEL PUMP MOUNTING

$7.99

$

Usually ships in 2-5 days

0

13

Kohler 25 086 397-S

SCREW, THREAD FORMING

$4.99

$

In Stock, Qty 19

0

14

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, only 2 left!

0

15

Kohler 25 393 13-S

PUMP, PULSE FLEX FUEL

$63.99

$

Usually ships in 2-5 days

0

16

Kohler 24 063 106-S

KIT,BAFFLE, FUEL MODULE

$25.99

$

Usually ships in 2-5 days

0

17

Kohler 25 237 28-S

CLAMP, OETIKER

$2.99

$

Usually ships in 2-5 days

0

18

Kohler 25 393 17-S

PUMP, FUEL MODULE

$482.99

$

Usually ships in 2-5 days

0

19

Kohler 25 086 413-S

SCREW, THREAD FORMING

$3.49

$

In Stock, only 3 left!

0

20

Kohler 25 155 51-S

CONNECTOR, EVAPORATIVE

$13.99

$

In Stock, only 2 left!

0

21

Kohler 25 173 33-S

CAP, MASKING

$2.49

$

In Stock, only 1 left!

0

22

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, only 4 left!

0

23

Kohler 25 237 45-S

CLAMP, INSULATED DOUBLE

$2.99

$

Usually ships in 2-5 days

0

24

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD-USE 24 041 79-S
(Superseded to 24 041 79-S)

$2.99

$

In Stock, Qty 20+

0

25

Kohler 24 164 102-S

KIT, MANIFOLD

$185.99

$

Usually ships in 2-5 days

0

26

Kohler 24 326 119-S

HOSE, EVAPORATIVE (15.0)

$3.99

$

Usually ships in 2-5 days

0

27

Kohler 24 399 25-S

FUEL HOSE ASSY (STRAIGHT FITTING)

$116.99

$

In Stock, only 2 left!

0

27

Kohler 24 399 26-S

FUEL HOSE ASSY (90? FITTING)

$116.99

$

In Stock, only 3 left!

0

28

Kohler 25 155 56-S

TEE CONNECTOR

$2.99

$

Usually ships in 2-5 days

0

29

Kohler 25 331 01-S

INJECTOR, FUEL

$80.99

$

In Stock, Qty 5

0

30

Kohler 25 755 41-S

KIT, FUEL INJECTOR O-RING

$32.99

$

In Stock, only 2 left!

0

31

Kohler 25 418 03-S

SENSOR, AIR TEMPERATURE

$16.99

$

In Stock, only 2 left!

0

32

Kohler 25 418 09-S

SENSOR, MAP

$69.99

$

Usually ships in 2-5 days

0

34

Kohler 25 583 09-S

KIT, THROTTLE BODY ASSEMBLY

$305.99

$

Usually ships in 2-5 days

0

35

Kohler 25 418 08-S

SENSOR, THROTTLE POSITION

$120.99

$

In Stock, only 3 left!

0

36

Kohler M-629085-S

STUD,M6X1.0X84

$3.99

$

Usually ships in 2-5 days

0

37

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 12

0

38

Kohler M-651016-S

SCREW, FLG M6X1.0X16

$2.49

$

Usually ships in 2-5 days

0

39

Kohler 25 154 04-S

CLIP, CABLE

$3.49

$

Usually ships in 2-5 days

0

40

Kohler M-651060-S

SCREW, FLG M6X1.0X60

$3.99

$

Usually ships in 2-5 days

0

41

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 20+

0

42

Kohler 24 237 14-S

CLAMP, OIL COOLER HOSE-USE 25 237 31-S
(Superseded to 25 237 31-S)

$6.49

$

In Stock, Qty 16

0

42

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$6.49

$

In Stock, Qty 16

0

42

Kohler 25 237 31-S

CLAMP, HOSE

$6.49

$

In Stock, Qty 16

0

43

Kohler 25 431 33-S

SLEEVE, ANTI ABRASION

$7.49

$

Usually ships in 2-5 days

0
