FCV740-3012 - Kohler Command PRO EFI Engine, Made for John Deere, 25hp 03 Lubrication Parts Diagram

Command PRO EFI Engine, Made for John Deere, 25hp

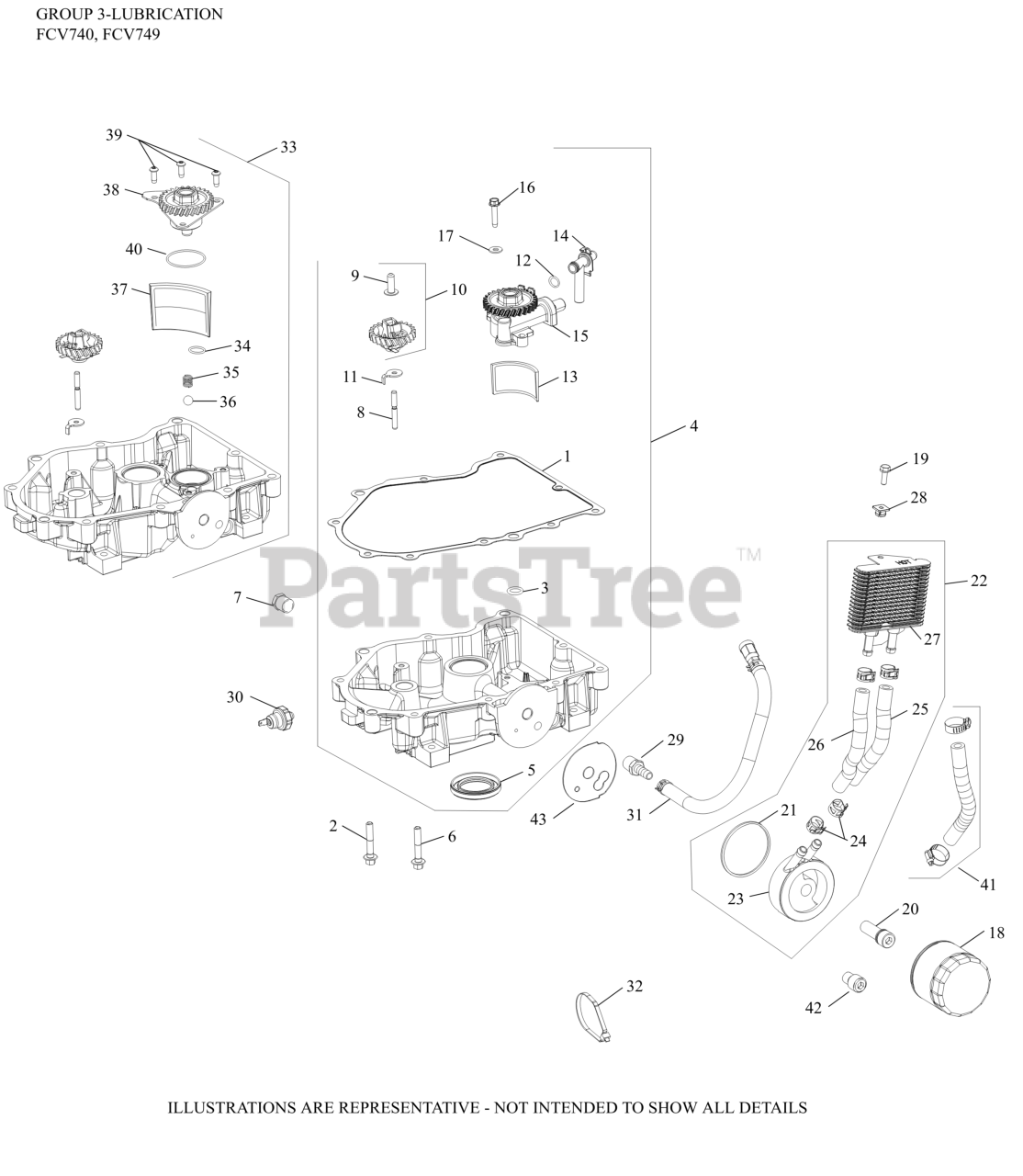

03 Lubrication Parts Diagram

  • Title

1

Kohler 24 041 66-S

GASKET, OIL PAN

Note: Before S/N 4923000011

$24.99

$

In Stock, Qty 20+

0

1

Kohler 24 041 94-S

GASKET, OIL PAN

Note: After S/N 4923000001

$19.99

$

Usually ships in 2-5 days

0

2

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 20+

0

3

Kohler 24 153 08-S

O-RING

$6.49

$

Usually ships in 2-5 days

0

5

Kohler 25 032 06-S

OIL SEAL

$10.99

$

In Stock, Qty 20+

0

6

Kohler 25 086 317-S

SCREW, HEX FLANGE

$2.49

$

In Stock, only 2 left!

0

7

Kohler 52 139 02-S

PLUG, HD PIPE 3/8"

$8.49

$

In Stock, only 2 left!

0

8

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, Qty 6

0

9

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 16

0

10

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

$68.99

$

In Stock, Qty 5

0

11

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, only 2 left!

0

18

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

19

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

21

Kohler 24 153 21-S

O-RING, OIL COOLER

$5.99

$

In Stock, Qty 9

0

22

Kohler 24 594 57-S

COOLER, OIL & DIVERTER ASSEMBLY

$226.99

$

In Stock, only 1 left!

0

23

Kohler 24 029 80-S

ADAPTER, OIL FILTER (CV EFI)

$

$

Not available

24

Kohler 24 237 16-S

CLAMP, HOSE LOW PROFILE

$4.49

$

In Stock, Qty 8

0

24

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, Qty 6

0

28

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, only 3 left!

0

29

Kohler 24 294 22-S

FITTING, BARBED

$6.49

$

Usually ships in 2-5 days

0

30

Kohler 25 099 27-S

SENSOR, OIL PSI

$15.99

$

In Stock, only 4 left!

0

31

Kohler 25 326 25-S

HOSE, OIL ASSEMBLY-(#25326116S)
(Superseded to 25 326 116-S)

$47.99

$

Usually ships in 2-5 days

0

32

Kohler 25 454 07-S

TIE

$2.49

$

Usually ships in 2-5 days

0

33

Kohler 24 199 35-S

KIT, OIL PAN ASSEMBLY

Note: Before S/N 4923000011

$337.99

$

In Stock, Qty 6

0

33

Kohler 24 199 39-S

PAN, ASSEMBLY OIL (SERVICE)

Note: After S/N 4923000001

$267.99

$

Usually ships in 2-5 days

0

35

Kohler 24 089 74-S

SPRING, COMPRESSION

$2.49

$

In Stock, only 1 left!

0

36

Kohler 25 194 03-S

PRESSURE RELIEF BALL

$2.49

$

In Stock, only 1 left!

0

37

Kohler 32 162 06-S

SCREEN, OIL

$4.99

$

In Stock, only 2 left!

0

38

Kohler 24 393 89-S

PUMP, OIL ASSEMBLY

$29.99

$

In Stock, only 1 left!

0

39

Kohler 25 086 414-S

SCREW, BUTTON HEAD
(Superseded to 25 086 792-S)

$2.49

$

Usually ships in 2-5 days

0

40

Kohler 12 153 05-S

O-RING (1.78" DIA)

$7.99

$

In Stock, Qty 7

0

41

Kohler 24 326 17-S

KIT, HOSE 140MM

$14.99

$

In Stock, Qty 10

0

NI

Kohler 24 136 08-S

NIPPLE, OIL FILTER

$12.99

$

In Stock, only 4 left!

0
