FX850V-AS45 - Kawasaki Engine CYLINDER/CRANKCASE Parts Diagram

Engine

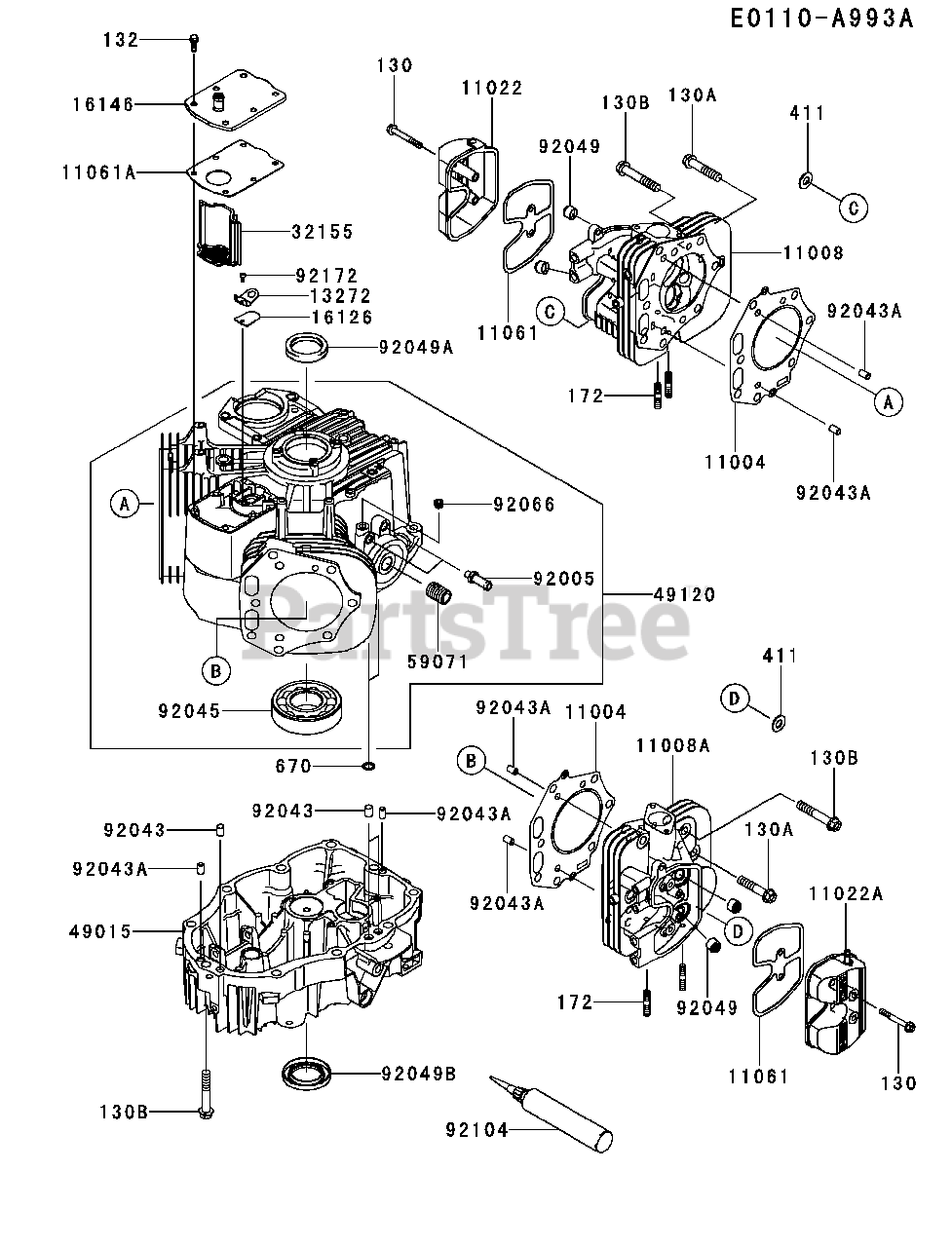

CYLINDER/CRANKCASE Parts Diagram

  • Title

11004

Kawasaki 110040771

GASKET-HEAD

$56.99

$

In Stock, only 2 left!

0

11008

Kawasaki 110080936

HEAD-COMP-CYLINDER,#1

$246.99

$

Usually ships in 2-5 days

0

11008A

Kawasaki 110080937

HEAD-COMP-CYLINDER,#2

$247.99

$

Usually ships in 2-5 days

0

11022

Kawasaki 110220050

CASE-ROCKER

$16.99

$

Usually ships in 2-5 days

0

11022A

Kawasaki 110226014

CASE-ROCKER

$16.99

$

Usually ships in 2-5 days

0

11061

Kawasaki 110610899

GASKET
(Superseded to 11061-7080)

$6.49

$

In Stock, Qty 20+

0

11061A

Kawasaki 110611202

GASKET,BREATHER

$3.49

$

In Stock, only 2 left!

0

13272

Kawasaki 132721374

PLATE
(Superseded to 13272-7004)

$1.99

$

In Stock, Qty 20+

0

16126

Kawasaki 161267020

VALVE,BREATHER

$4.99

$

In Stock, Qty 20+

0

16146

Kawasaki 161460807

COVER-ASSY,BREATHER

$17.99

$

Usually ships in 2-5 days

0

32155

Kawasaki 321552587

PIPE,BREATHER

$2.99

$

In Stock, only 1 left!

0

49015

Kawasaki 490150049

COVER-CRANKCASE

$237.99

$

Usually ships in 2-5 days

0

49120

Kawasaki 491200870

CRANKCASE-COMP

$646.99

$

Usually ships in 2-5 days

0

59071

Kawasaki 590710743

JOINT,OIL FILTER

$2.99

$

In Stock, only 2 left!

0

92005

Kawasaki 920050881

FITTING

$7.49

$

In Stock, only 4 left!

0

92043

Kawasaki 920430858

PIN

$2.49

$

In Stock, Qty 20+

0

92043A

Kawasaki 920431263

PIN,6.2X8X14

$0.99

$

In Stock, Qty 20+

0

92045

Kawasaki 920450712

BEARING-BALL,6308

$

$

Not available

92049

Kawasaki 920497020

SEAL-OIL

$4.49

$

In Stock, Qty 20+

0

92049A

Kawasaki 920497024

SEAL-OIL,SD 40X54X9 R

$6.99

$

In Stock, Qty 20+

0

92049B

Kawasaki 920497026

SEAL-OIL,SD 40X62X8 L

$9.99

$

In Stock, Qty 20+

0

92066

Kawasaki 920660881

PLUG

$4.49

$

In Stock, Qty 12

0

92104

Kawasaki 921040007

GASKET-LIQUID,TB1217H

$51.99

$

In Stock, Qty 14

0

92172

Kawasaki 921720870

SCREW,4X8

$0.99

$

In Stock, Qty 10

0

130

Kawasaki 130BA0650

BOLT-FLANGED,6X50
(Superseded to 92003-179)

$1.49

$

In Stock, Qty 20+

0

130A

Kawasaki 130CA1050

BOLT-FLANGED,10X50

$4.49

$

In Stock, Qty 20+

0

130B

Kawasaki 130CA1060

BOLT-FLANGED,10X60

$4.49

$

In Stock, Qty 10

0

132

Kawasaki 132BA0616

BOLT-FLANGED-SMALL,6X16

$1.99

$

Usually ships in 2-5 days

0

172

Kawasaki 172BA0822

BOLT-STUD,8X22
(Superseded to 172G0822)

$2.49

$

In Stock, Qty 20+

0

411

Kawasaki 411AA1000

WASHER-PLAIN,10MM
(Superseded to 92200-1095)

$0.99

$

Usually ships in 2-5 days

0

670

Kawasaki 670B2011

O RING,11MM

$1.49

$

In Stock, Qty 20+

0
