GT-2400 - Echo String Trimmer (Original Version) Carburetor S/N: 001001-103574 Parts Diagram

String Trimmer

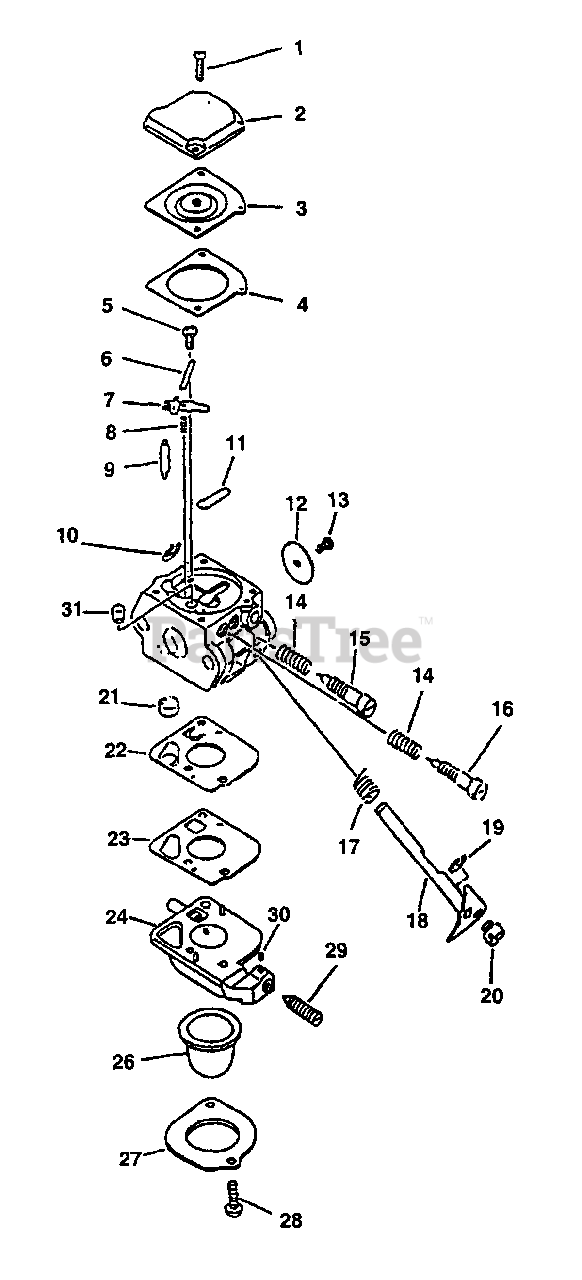

Carburetor S/N: 001001-103574 Parts Diagram

  • Title

Echo 12520052131

CARBURETOR C1U-K23A
(Superseded to 12520013313)

Note: INCLUDES THE FOLLOWING ITEMS

$94.99

$

In Stock, Qty 10

0

1

Echo 12534452130

SCREW

$0.99

$

In Stock, Qty 10

0

2

Echo 12534252130

COVER, METERING

$4.99

$

In Stock, only 2 left!

0

3

------------------

DIAPHRAGM

Note: INCLUDED IN GASKET/DIAPHRAGM KIT P/N 12530351030 AND REBUILD KIT P/N 12530051330

$

$

Not available

4

------------------

GASKET, METERING

Note: INCLUDED IN GASKET/DIAPHRAGM KIT P/N 12530351030 AND REBUILD KIT P/N 12530051330

$

$

Not available

5

Echo 12533942030

SCREW, METERING LEVER PIN

$0.99

$

In Stock, Qty 11

0

6

------------------

PIN

Note: INCLUDED IN REBUILD KIT P/N 12530051330

$

$

Not available

7

------------------

LEVER, METERING

Note: INCLUDED IN REBUILD KIT P/N 12530051330

$

$

Not available

8

------------------

SPRING, METERING LEVER

Note: INCLUDED IN REBUILD KIT P/N 12530051330

$

$

Not available

9

------------------

VALVE, NEEDLE

Note: INCLUDED IN REBUILD KIT P/N 12530051330

$

$

Not available

10

Echo 12532715130

RING, RETAINING

$0.99

$

In Stock, Qty 5

0

11

------------------

PLUG, WELCH

Note: INCLUDED IN REBUILD KIT P/N 12530051330

$

$

Not available

12

Echo 12531651230

VALVE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

13

Echo 12531451230

SCREW

$1.49

$

Usually ships in 2-4 days

0

14

Echo 12531942030

SPRING

$1.49

$

Usually ships in 2-4 days

0

15

Echo 12531851330

NEEDLE - MIXTURE
(Superseded to Discontinued)

$

$

Not available

16

Echo 12532051230

NEEDLE - HIGH SPEED

$4.99

$

Usually ships in 2-4 days

0

17

Echo 12531342030

SPRING, RETURN

$1.49

$

In Stock, Qty 12

0

18

Echo 12531711820

SHAFT, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

19

Echo 12532713930

RING, RETAINING

$0.99

$

In Stock, Qty 5

0

20

Echo 12537242030

SWIVEL

$5.49

$

Usually ships in 2-4 days

0

21

------------------

STRAINER

Note: INCLUDED IN REBUILD KIT P/N 12530051330

$

$

Not available

22

------------------

DIAPHRAGM, PURGE

Note: INCLUDED IN GASKET/DIAPHRAGM KIT P/N 12530351030 AND REBUILD KIT P/N 12530051330

$

$

Not available

23

------------------

GASKET, PURGE

Note: INCLUDED IN GASKET/DIAPHRAGM KIT P/N 12530351030 AND REBUILD KIT P/N 12530051330

$

$

Not available

24

Echo 12532411610

BASE, PURGE

$25.99

$

In Stock, only 4 left!

0

26

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$7.49

$

In Stock, Qty 20+

0

27

Echo 12536311610

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 14

0

28

Echo 12531011610

SCREW, RETAINER

$1.99

$

In Stock, Qty 5

0

29

Echo 12533413930

SCREW, IDLE ADJUST

$1.99

$

In Stock, only 2 left!

0

30

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

31

Echo 12537651030

NOZZLE, CHECK VALVE

$6.99

$

In Stock, only 1 left!

0

Echo 12530351030

DIAPHRAGM/GASKET KIT

$22.99

$

In Stock, only 3 left!

0

Echo 12530051330

REPAIR KIT

$20.99

$

In Stock, only 2 left!

0
