GT-2400 - Echo String Trimmer (Original Version) Clutch, Ignition, Starter Parts Diagram

String Trimmer

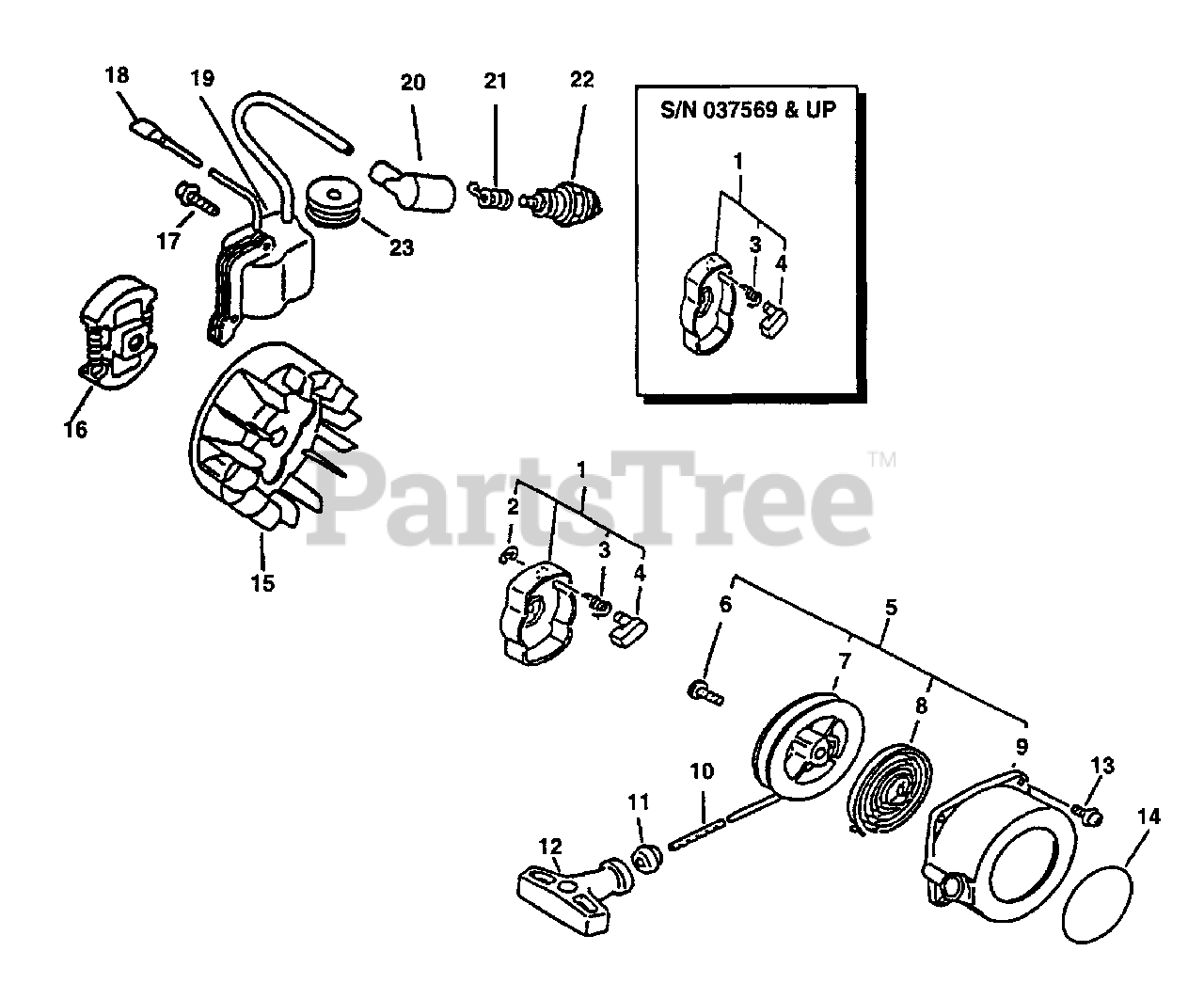

Clutch, Ignition, Starter Parts Diagram

  • Title

1

Echo 17720242030

STARTER PAWL ASSY
(Superseded to 17720244330)

Note: INCLUDES ITEMS 2 - 4. S/N 001001 - 037568

$18.99

$

In Stock, only 3 left!

0

1

Echo 17720244330

STARTER PAWL ASSY
(Superseded to 17720244331)

Note: INCLUDES ITEMS 3 - 4. S/N 037569 & UP

$18.99

$

In Stock, only 3 left!

0

2

Echo 90070000004

RING, RETAINING - 4

Note: S/N 001001 - 037568

$0.99

$

In Stock, Qty 20+

0

3

Echo 17723412220

SPRING, RETURN

$4.49

$

In Stock, Qty 20+

0

4

Echo 17721842030

PAWL, STARTER

Note: S/N 001001 - 037568

$3.99

$

Usually ships in 2-4 days

0

4

Echo 17721844330

PAWL, STARTER - BLACK

Note: S/N 037569 & UP

$3.99

$

In Stock, Qty 20+

0

5

Echo 17720042032

STARTER ASSY
(Superseded to 17720042033)

Note: INCLUDES ITEMS 6 - 12

$54.99

$

In Stock, Qty 20+

0

6

Echo 17723644330

SCREW

$3.99

$

In Stock, Qty 15

0

7

Echo 17721542030

REEL, ROPE
(Superseded to 17721544430)

$9.99

$

In Stock, only 3 left!

0

8

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$10.99

$

In Stock, Qty 20+

0

9

Echo 17723242032

CASE, STARTER

$23.99

$

In Stock, only 2 left!

0

10

Echo 17722605530

ROPE, STARTER - 3X890

Note: RePower BULK OPTION: 99944440000

$4.99

$

In Stock, Qty 8

0

11

Echo 17722742030

GUIDE, ROPE

$2.99

$

Usually ships in 2-4 days

0

12

Echo 17722806530

GRIP, STARTER

$5.49

$

In Stock, Qty 8

0

13

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 20+

0

14

Echo 89011849130

LABEL - ECHO
(Superseded to X502000190)

$0.99

$

In Stock, Qty 20+

0

15

Echo 15680144730

FLYWHEEL
(Superseded to 15680144731)

Note: S/N 001001 - 120980

$117.99

$

Usually ships in 2-4 days

0

15

Echo 15680109660

FLYWHEEL

Note: S/N 120981 & UP

$83.99

$

Usually ships in 2-4 days

0

16

Echo 17500042031

CLUTCH ASSY
(Superseded to 17500056830)

$30.99

$

In Stock, only 1 left!

0

17

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

18

Echo 16202152130

LEAD - GROUND
(Superseded to 16201052830)

Note: S/N 103037 & UP

$4.49

$

In Stock, only 2 left!

0

19

Echo 15660144730

COIL, IGNITION
(Superseded to 15660144731)

Note: S/N 001001 - 103036

$

$

Not available

19

Echo 15660152130

COIL, IGNITION
(Superseded to 15660152131)

Note: S/N 103037 - 120980

$133.99

$

In Stock, only 1 left!

0

19

Echo 15662609660

COIL, IGNITION
(Superseded to 15662609661)

Note: S/N 120981 & UP

$115.99

$

Usually ships in 2-4 days

0

20

Echo 15901201620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 7

0

21

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

22

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

23

Echo 15011244330

GROMMET
(Superseded to Discontinued)

Note: S/N 001001 - 082499

$

$

Not available

23

Echo 15611240630

GROMMET

Note: S/N 082500 & UP

$1.49

$

In Stock, Qty 20+

0

Echo 99944400040

BULK ROPE - 3X1000
(Superseded to 99944440000)

$33.99

$

In Stock, only 3 left!

0
