GT-2400 - Echo String Trimmer (Original Version) Crankcase, Engine, Fan Case Parts Diagram

String Trimmer

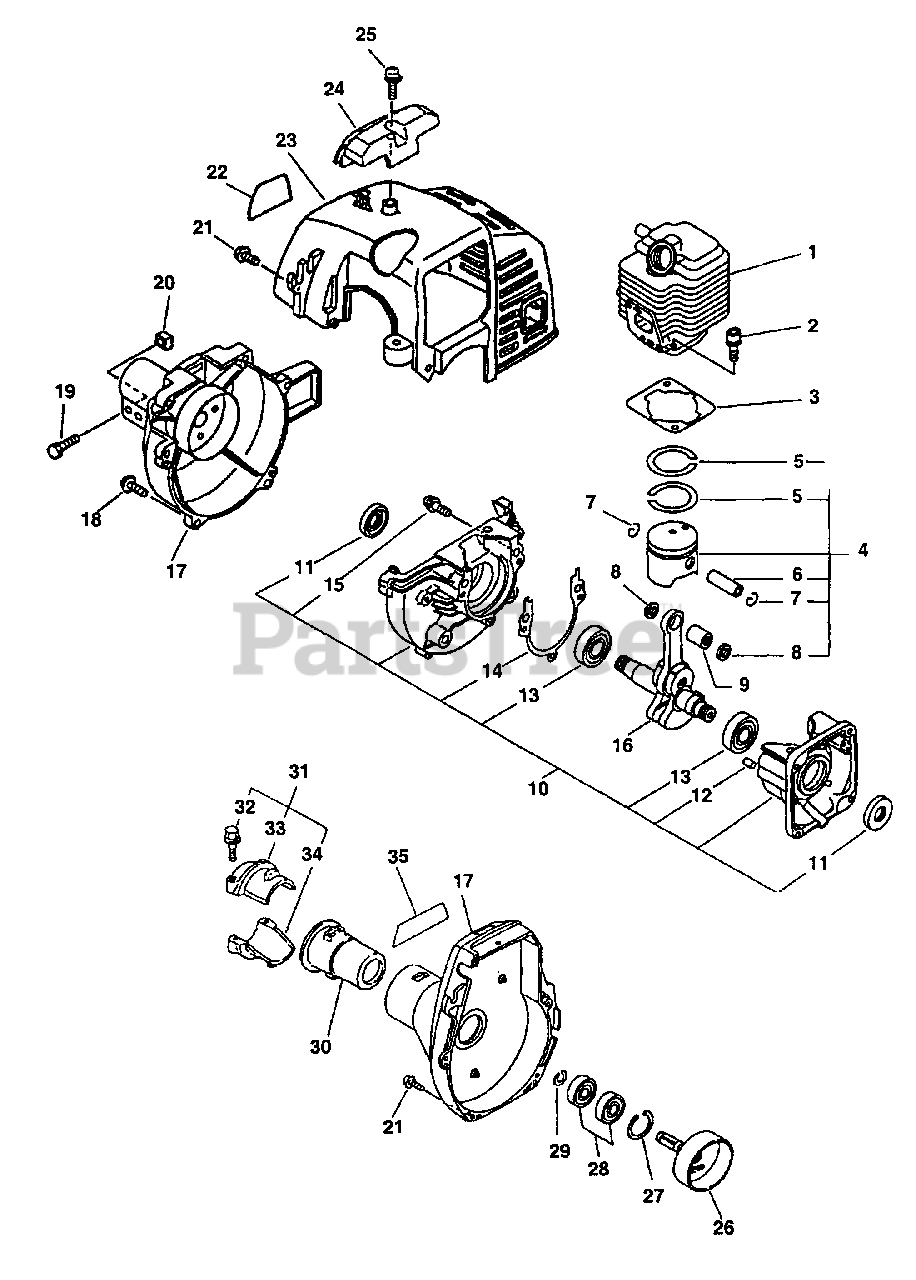

Crankcase, Engine, Fan Case Parts Diagram

  • Title

1

Echo 10101109560

CYLINDER
(Superseded to 10101108960)

$

$

Not available

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 8

0

3

Echo 10101044331

GASKET, CYLINDER
(Superseded to 10101044332)

Note: USE GASKET KIT P/N 88900044632

$4.99

$

In Stock, Qty 13

0

4

Echo 10000052130

PISTON KIT

Note: S/N 001001 - 053399. INCLUDES ITEMS 5-8

$84.99

$

In Stock, only 1 left!

0

4

Echo 10000009560

PISTON KIT
(Superseded to 10000009561)

Note: S/N 054000 & UP. INCLUDES ITEMS 5 - 8

$84.99

$

In Stock, only 1 left!

0

5

Echo 10001121230

RING, PISTON

Note: S/N 001001 - 053399

$8.99

$

Usually ships in 2-4 days

0

5

Echo 10001109560

RING, PISTON

Note: S/N 054000 & UP

$9.99

$

In Stock, only 2 left!

0

6

Echo 10001311520

PIN, PISTON

$8.49

$

In Stock, only 2 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

8

Echo 10001411520

SPACER, PISTON

$3.99

$

In Stock, only 2 left!

0

9

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

10

------------------

CRANKCASE KIT

Note: INCLUDES ITEMS 11 - 15 (USE P/N SB1024)

$

$

Not available

11

Echo 10021242031

SEAL, OIL

$7.99

$

In Stock, Qty 8

0

12

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 5

0

13

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

Usually ships in 2-4 days

0

14

------------------

GASKET, CRANKCASE

Note: USE GASKET KIT P/N 88900044632

$

$

Not available

15

Echo 90016205028

SCREW - 5X28

$2.49

$

In Stock, Qty 11

0

16

------------------

CRANKSHAFT ASSY

Note: Includes ITEM 8 (USE P/N SB1024)

$

$

Not available

17

Echo 10150348730

FAN CASE ASSY
(Superseded to 10150356630)

Note: S/N 001001 - 082499

$

$

Not available

17

Echo 10150352131

CASE, FAN

Note: S/N 082500 & UP

$78.99

$

In Stock, only 1 left!

0

18

Echo 90023804018

SCREW - 4X18

$0.99

$

In Stock, Qty 7

0

19

Echo 90014205028

BOLT - 5X28

$0.99

$

In Stock, Qty 20+

0

20

Echo 90056500005

NUT - 5 -- SQUARE
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

21

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 20+

0

22

Echo 89011552730

LABEL - MODEL GT-2400
(Superseded to 89011252730)

$1.99

$

Usually ships in 2-4 days

0

23

Echo 10151448730

COVER, ENGINE - GRAY
(Superseded to 10151448731)

Note: S/N 001001 - 082499

$23.99

$

In Stock, only 2 left!

0

23

Echo 10151448930

COVER, ENGINE

Note: S/N 082500 & UP

$14.99

$

In Stock, only 2 left!

0

24

Echo 15991248630

GUARD, TOP - GRAY
(Superseded to Discontinued)

Note: S/N 001001 - 082499

$

$

Not available

24

Echo 15991254130

GUARD - TOP

Note: S/N 082500 & UP

$9.49

$

In Stock, only 3 left!

0

25

Echo 90025305016

SCREW - 5X16 -- TAPPING

$0.99

$

In Stock, Qty 20+

0

26

Echo 17500548930

DRUM, CLUTCH
(Superseded to 17500548931)

Note: S/N 082500 & UP

$16.99

$

In Stock, Qty 5

0

27

Echo 90070200028

RING, RETAINING - 28

Note: S/N 082500 & UP

$1.99

$

In Stock, Qty 20+

0

28

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

Note: S/N 082500 & UP

$7.49

$

In Stock, Qty 20+

0

29

Echo 90070100012

RING, RETAINING - 12

Note: SIN 082500 & UP

$0.99

$

In Stock, Qty 20+

0

30

Echo 61091052730

CUSHION
(Superseded to Discontinued)

Note: S/N 082500 & UP

$

$

Not available

31

Echo 61090352130

HOLDER KIT

Note: S/N 082500 & UP. INCLUDES ITEM 32 - 34

$16.99

$

Usually ships in 2-4 days

0

32

Echo 90014205025

BOLT - 5X25

Note: S/N 082500 & UP

$0.99

$

In Stock, Qty 9

0

33

Echo 61092251030

CLAMP, MAIN PIPE - UPPER

Note: S/N 082500 & UP

$5.49

$

Usually ships in 2-4 days

0

34

Echo 61092352130

CLAMP, MAIN PIPE - LOWER

Note: S/N 082500 & UP

$8.49

$

Usually ships in 2-4 days

0

35

Echo 89011252730

LABEL - MODEL GT-2400

Note: S/N 082500 & UP

$1.99

$

Usually ships in 2-4 days

0

Echo SB1024

SHORT BLOCK -- SB1024
(Superseded to SB1027)

$

$

Not available

Echo 88900044632

GASKET KIT
(Superseded to 88900005063)

$41.99

$

In Stock, only 2 left!

0

Echo 10101044331

GASKET, CYLINDER
(Superseded to 10101044332)

$4.99

$

In Stock, Qty 13

0

Echo 14586642031

GASKET, EXHAUST

$2.99

$

In Stock, Qty 6

0

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

------------------

GASKET, CRANKCASE

$

$

Not available

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 20+

0

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo 90000

MAINTENANCE KIT
(Superseded to 90050)

Note: REPOWER KIT. S/N 027404 & UP

$21.99

$

In Stock, Qty 20+

0

Echo 90008

RePower FILTER KIT
(Superseded to 90152)

Note: REPOWER KIT

$21.99

$

In Stock, Qty 20+

0

Echo 90010

Repower CAP AND VENT KIT
(Superseded to 90248)

Note: REPOWER KIT. FOR ALL MODELS

$

$

Not available
