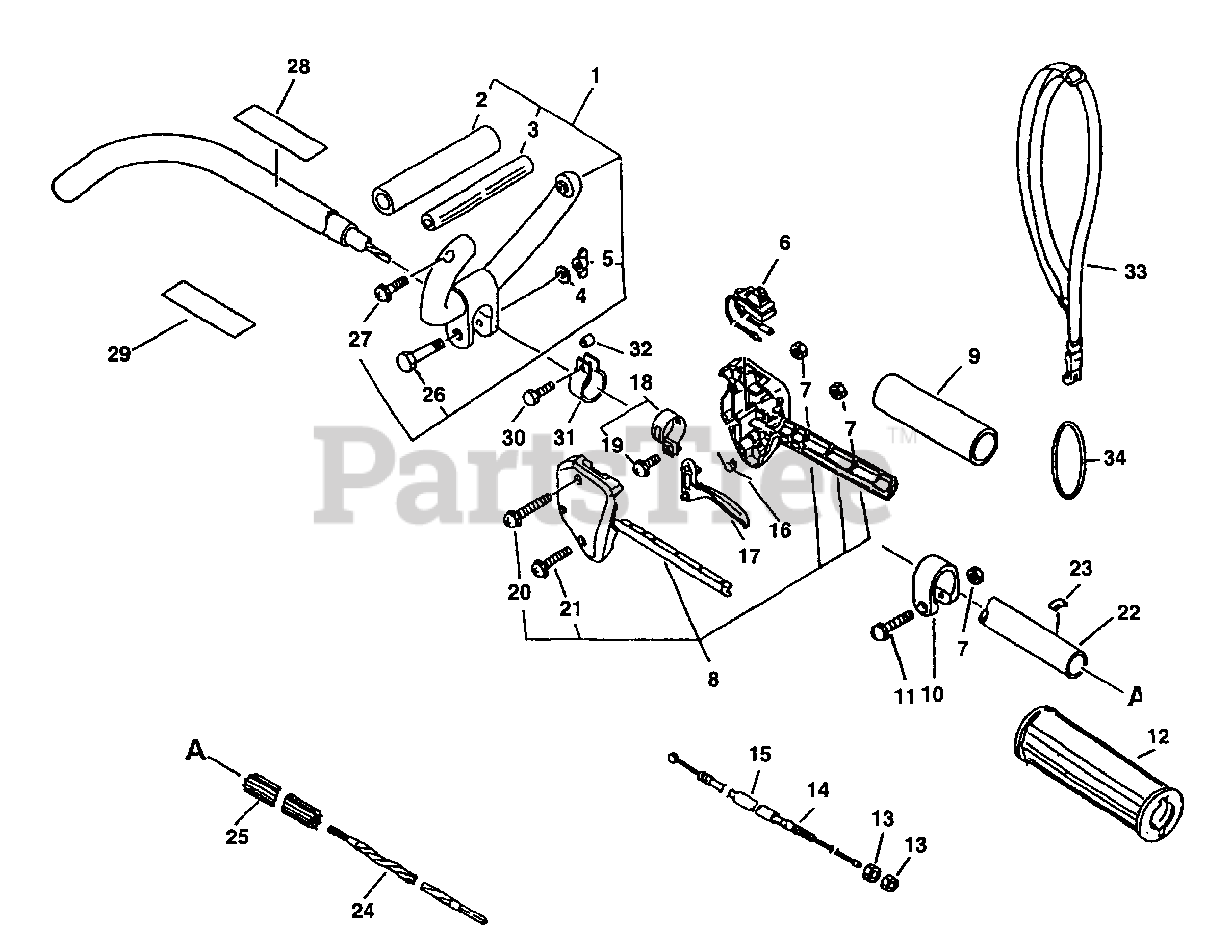

GT-2400 - Echo String Trimmer (Original Version) Driveshaft, Handles, Throttle, Stop Switch, Harness Parts Diagram

String Trimmer

Driveshaft, Handles, Throttle, Stop Switch, Harness Parts Diagram

  • Title

1

Echo 35120150630

LOOP HANDLE ASSY

Note: INCLUDES ITEMS 2 - 5, 26 & 27

$36.99

$

Usually ships in 2-4 days

0

2

Echo 35121351730

GRIP, HANDLE

$9.99

$

In Stock, only 2 left!

0

3

Echo 35121051730

HANDLE

$5.49

$

Usually ships in 2-4 days

0

4

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

5

Echo 90052500006

NUT, WING 6

$1.99

$

In Stock, only 4 left!

0

6

Echo 16340049230

IGNITION SWITCH ASSY
(Superseded to 16340155631)

$10.99

$

In Stock, only 2 left!

0

7

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

8

Echo 17800352730

THROTTLE BRACKET SET
(Superseded to 17800352731)

Note: INCLUDES ITEMS 7, 20 & 21

$12.99

$

Usually ships in 2-4 days

0

9

Echo 35121352730

GRIP, HANDLE
(Superseded to Discontinued)

$

$

Not available

10

Echo 61027252730

CLAMP

$11.99

$

Usually ships in 2-4 days

0

11

Echo 90024205028

SCREW 5×28

$0.99

$

In Stock, Qty 6

0

12

Echo 35111144530

GRIP

$14.99

$

Usually ships in 2-4 days

0

13

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

14

Echo 17800144430

CABLE, THROTTLE

$12.99

$

In Stock, only 2 left!

0

15

Echo 17812750330

PIPE

$1.49

$

In Stock, Qty 7

0

16

Echo 178043-42230

SPRING, TORSION

$0.99

$

In Stock, Qty 20+

0

17

Echo 17801052130

TRIGGER, THROTTLE

$4.49

$

In Stock, Qty 20+

0

18

Echo 30120152730

CLAMP KIT

Note: Includes ITEM 19

$11.99

$

Usually ships in 2-4 days

0

19

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

20

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

21

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

22

Echo 61060944530

MAIN PIPE ASSY

Note: INCLUDES ITEMS 25, 28 & 29

$63.99

$

Usually ships in 2-4 days

0

23

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

24

Echo 61001323330

DRIVESHAFT - FLEXIBLE
(Superseded to C506000090)

$25.99

$

In Stock, only 2 left!

0

25

Echo 61021744530

LINER - FLEXIBLE

$19.99

$

In Stock, Qty 14

0

26

Echo 90010006040

BOLT - 6×40

$0.99

$

Usually ships in 2-4 days

0

27

Echo 90024605030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

0

28

Echo 89031744530

LABEL, CAUTION

$1.99

$

Usually ships in 2-4 days

0

29

Echo 89017740630

LABEL, CAUTION
(Superseded to 89022809560)

$0.99

$

In Stock, only 2 left!

0

30

Echo 900100-05018

BOLT 5×18

Note: S/N 054000 & UP

$0.99

$

In Stock, Qty 8

0

31

Echo 30120723330

HOOK

Note: S/N 054000 & UP

$5.99

$

Usually ships in 2-4 days

0

32

Echo 699012-03330

SPACER, GUARD

Note: S/N 054000 & UP

$1.99

$

In Stock, Qty 13

0

33

Echo 30100054331

SHOULDER STRAP ASSY
(Superseded to C062000080)

Note: S/N 054000 & UP

$24.99

$

Usually ships in 2-4 days

0

34

Echo 30101652730

RING, HARNESS Ø32

Note: S/N 054000 & UP

$1.99

$

Usually ships in 2-4 days

0
