GT-2400 - Echo String Trimmer (Original Version) Exhaust, Fuel System Parts Diagram

String Trimmer

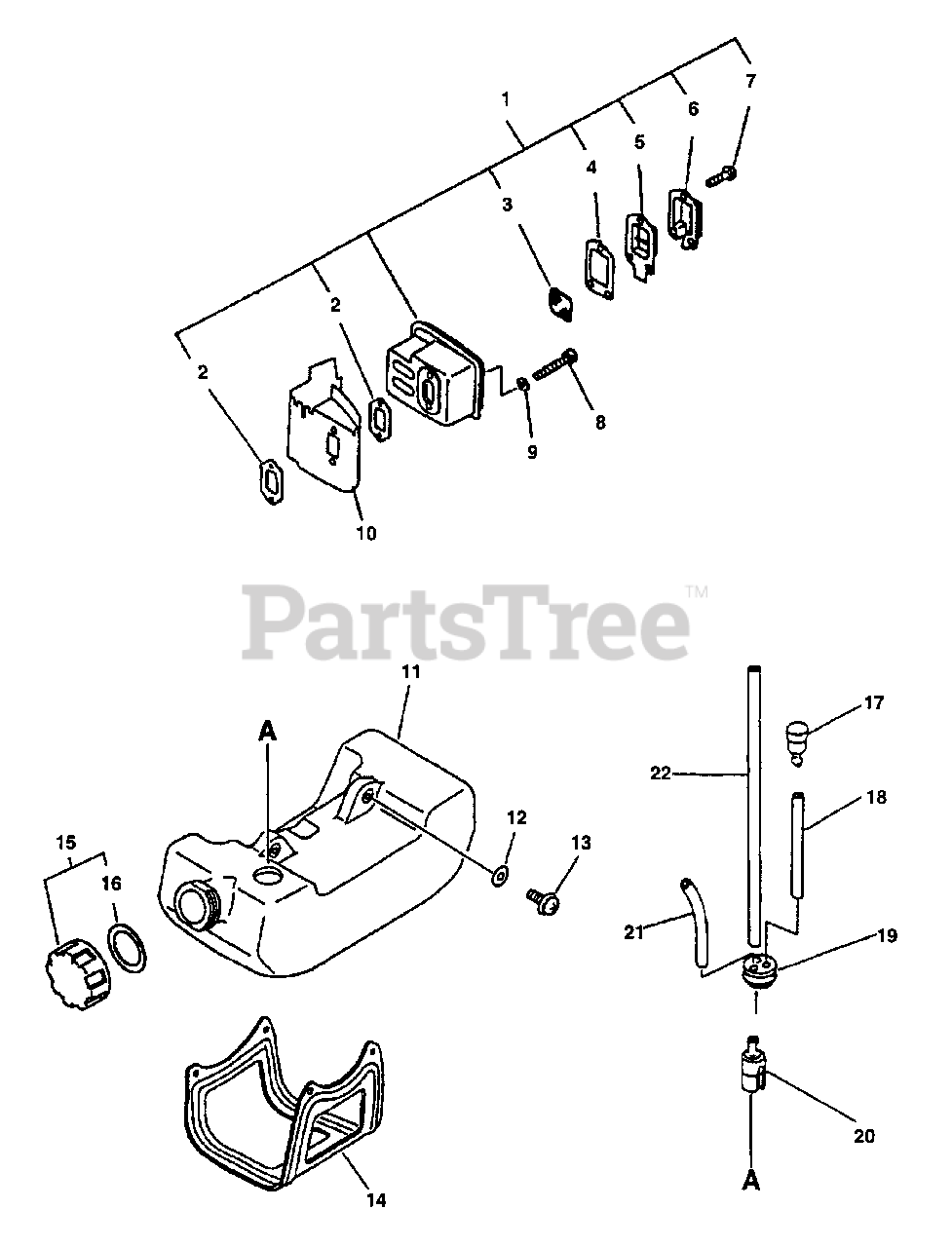

Exhaust, Fuel System Parts Diagram

  • Title

1

Echo 14580052630

MUFFLER ASSY
(Superseded to 14580052631)

Note: INCLUDES ITEMS 2 - 7

$

$

Not available

2

Echo V104000160

GASKET, EXHAUST

Note: INCLUDED IN KIT P/N 88900044632

$2.49

$

In Stock, Qty 20+

0

3

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 20+

0

4

Echo 145866-42031

GASKET, EXHAUST

Note: INCLUDED IN KIT P/N 88900044632

$2.99

$

In Stock, only 2 left!

0

5

Echo 14587642030

GUIDE, EXHAUST

$4.99

$

In Stock, only 3 left!

0

6

Echo 14581852130

OUTLET, EXHAUST

$8.49

$

Usually ships in 2-4 days

0

7

Echo 90023804010

SCREW 4×10

$0.99

$

In Stock, Qty 6

0

8

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

9

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

10

Echo 14587144331

COVER, EXHAUST
(Superseded to 14587152130)

$5.99

$

In Stock, only 2 left!

0

11

Echo 131005-44331

TANK, FUEL
(Superseded to 13100544332)

$21.99

$

In Stock, Qty 6

0

12

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

13

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

14

Echo 305110-42030

GUARD, FUEL TANK

$

$

Not available

15

Echo 13100455830

CAP ASSY, FUEL
(Superseded to P200000830)

Note: Includes ITEM 16 INCLUDED IN KIT 90008

$5.49

$

In Stock, only 2 left!

0

16

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

17

Echo 13130040630

VENT ASSY
(Superseded to 13130056430)

Note: INCLUDED IN KIT 90010

$8.99

$

In Stock, Qty 7

0

18

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

19

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

20

Echo 131205-07320

FILTER, FUEL

Note: INCLUDED IN KIT 90008

$6.49

$

In Stock, Qty 20+

0

21

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 20+

0

22

Echo V471001190

PIPE, FUEL 3x-5x-180
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

Echo 88900044632

GASKET KIT
(Superseded to 88900005063)

$41.99

$

In Stock, only 2 left!

0

Echo 90010

CAP/VENT KIT - REPOWER
(Superseded to 90248)

$

$

Not available

Echo 90008

FILTER KIT - REPOWER
(Superseded to 90152)

$21.99

$

In Stock, Qty 20+

0
