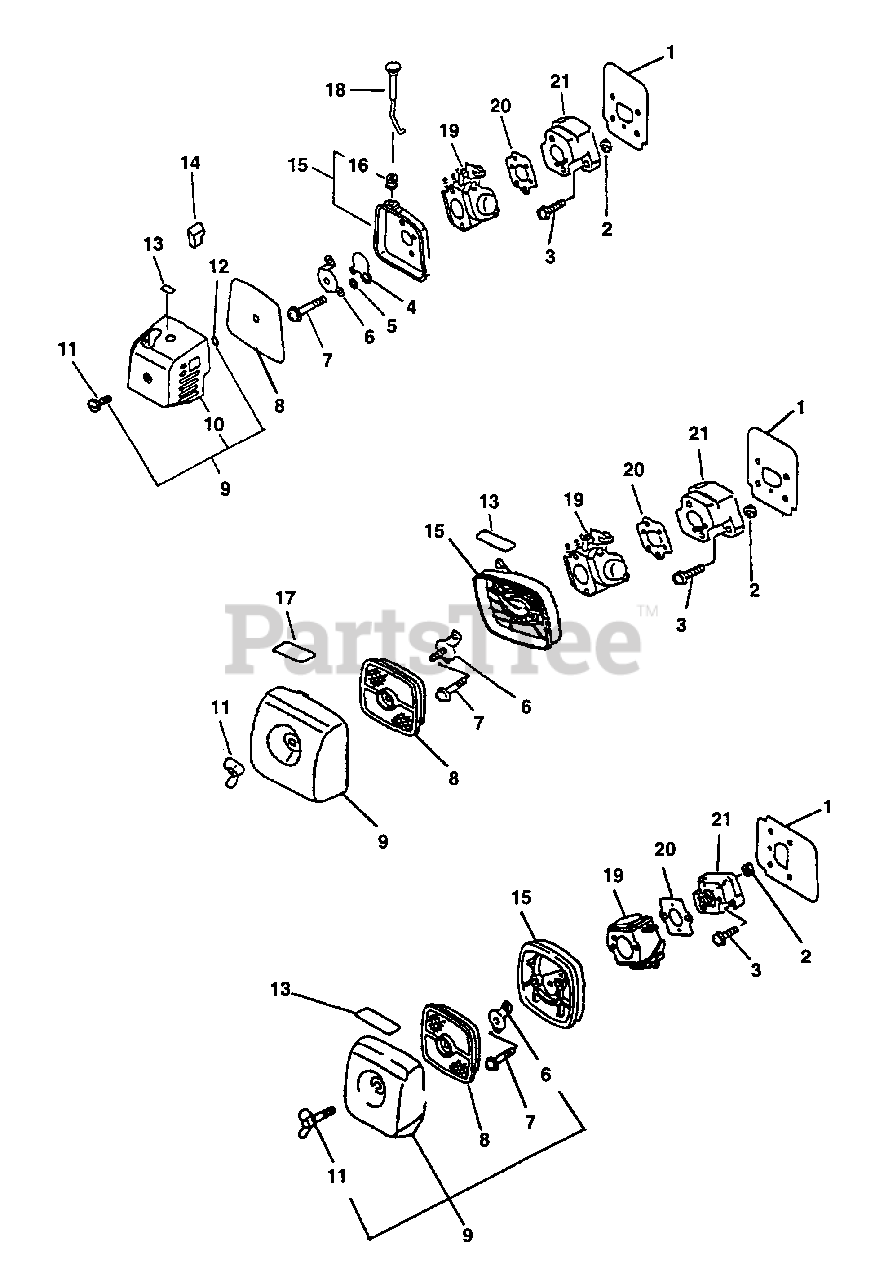

GT-2400 - Echo String Trimmer (Original Version) Intake, Air Cleaner Parts Diagram

String Trimmer

Intake, Air Cleaner Parts Diagram

  • Title

1

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

Note: INCLUDED IN KIT P/N 88900044632

$2.49

$

In Stock, Qty 20+

0

2

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

3

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

4

Echo 17851504560

SHUTTER, CHOKE

$2.49

$

In Stock, only 1 left!

0

5

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

6

Echo 13041044730

BRACKET, AIR CLEANER

Note: S/N 001001 - 027403

$9.99

$

In Stock, only 1 left!

0

6

Echo 12901105060

PLATE, PREVENT

Note: S/N 027404 - 100005

$5.99

$

In Stock, Qty 10

0

6

Echo 12901106360

PLATE, PREVENT
(Superseded to 12901106361)

Note: S/N 100006 & UP

$3.99

$

In Stock, Qty 20+

0

7

Echo 90024205057

SCREW - 5X57

Note: S/N 001001 - 027403

$0.99

$

In Stock, Qty 8

0

7

Echo 90024205065

SCREW - 5X65

Note: S/N 027404 & UP

$0.99

$

In Stock, Qty 15

0

8

Echo 13031004560

FILTER, AIR

Note: S/N 001001 - 027403

$4.99

$

In Stock, Qty 20+

0

8

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

Note: INCLUDED IN KIT 90008

$7.49

$

In Stock, Qty 20+

0

9

Echo 13030250630

AIR FILTER COVER ASSY

Note: Includes ITEMS 10-12

$10.99

$

Usually ships in 2-4 days

0

9

Echo 13031306560

COVER, AIR FILTER
(Superseded to 13031306561)

Note: S/N 027404 - 100005

$7.99

$

In Stock, Qty 19

0

9

Echo 13030206561

COVER, AIR FILTER - GRAY

Note: S/N 100006 & UP. INCLUDES ITEMS 6 & 11

$7.99

$

In Stock, Qty 19

0

10

Echo 13031350630

COVER, AIR FILTER

$9.99

$

Usually ships in 2-4 days

0

11

Echo 13041540630

SCREW

Note: S/N 001001 - 027403

$2.99

$

In Stock, only 1 left!

0

11

Echo 90052800005

WINGNUT - 6

Note: S/N 027404 - 100005

$1.49

$

In Stock, Qty 20+

0

11

Echo 21041752730

THUMBSCREW

Note: S/N 100006 & UP

$1.49

$

In Stock, Qty 20+

0

12

Echo 90072000004

O-RING - 4

$1.99

$

In Stock, Qty 14

0

13

Echo X506000070

LABEL - CHOKE

Note: S/N 001001 - 027403

$0.99

$

In Stock, Qty 9

0

13

Echo 89012106360

LABEL - CHOKE

Note: S/N 027404 & UP

$1.99

$

In Stock, Qty 20+

0

14

Echo 13033652130

PLUG

$2.49

$

In Stock, only 1 left!

0

15

Echo 13030104560

CASE, AIR FILTER

Note: S/N 001001 - 027403. INCLUDES ITEM 16

$8.49

$

Usually ships in 2-4 days

0

15

Echo 13030706561

AIR FILTER CASE ASSY
(Superseded to P021002921)

Note: S/N 027404 & UP

$12.99

$

In Stock, Qty 19

0

16

Echo 17881005230

GROMMET

$1.99

$

In Stock, Qty 15

0

17

Echo 89018706960

LABEL - TOP

Note: S/N 027404 - 096000

$3.49

$

In Stock, only 1 left!

0

18

Echo 17851048830

ROD, CHOKE

$7.49

$

Usually ships in 2-4 days

0

19

Echo 12520052131

CARBURETOR C1U-K23A
(Superseded to 12520013313)

Note: S/N 001001 - 103574

$78.99

$

In Stock, Qty 20+

0

19

Echo 12300052131

CARBURETOR WT-424A
(Superseded to 12300052132)

Note: S/N 103575 & UP

$94.99

$

In Stock, only 2 left!

0

20

Echo 13001642031

GASKET, INTAKE

Note: INCLUDED IN KIT P/N 88900044632

$1.49

$

In Stock, Qty 20+

0

21

Echo 13001742031

INSULATOR, INTAKE

$9.49

$

In Stock, Qty 16

0

Echo 88900044632

GASKET KIT
(Superseded to 88900005063)

$34.99

$

Usually ships in 2-4 days

0

Echo 90008

RePower FILTER KIT
(Superseded to 90152)

$20.99

$

In Stock, Qty 20+

0
