GXV160 A12 (GJ03) - Honda Engine, Made in Japan (SN: GJ03-1000001 - GJ03-1366578) RECOIL STARTER Parts Diagram

Engine, Made in Japan

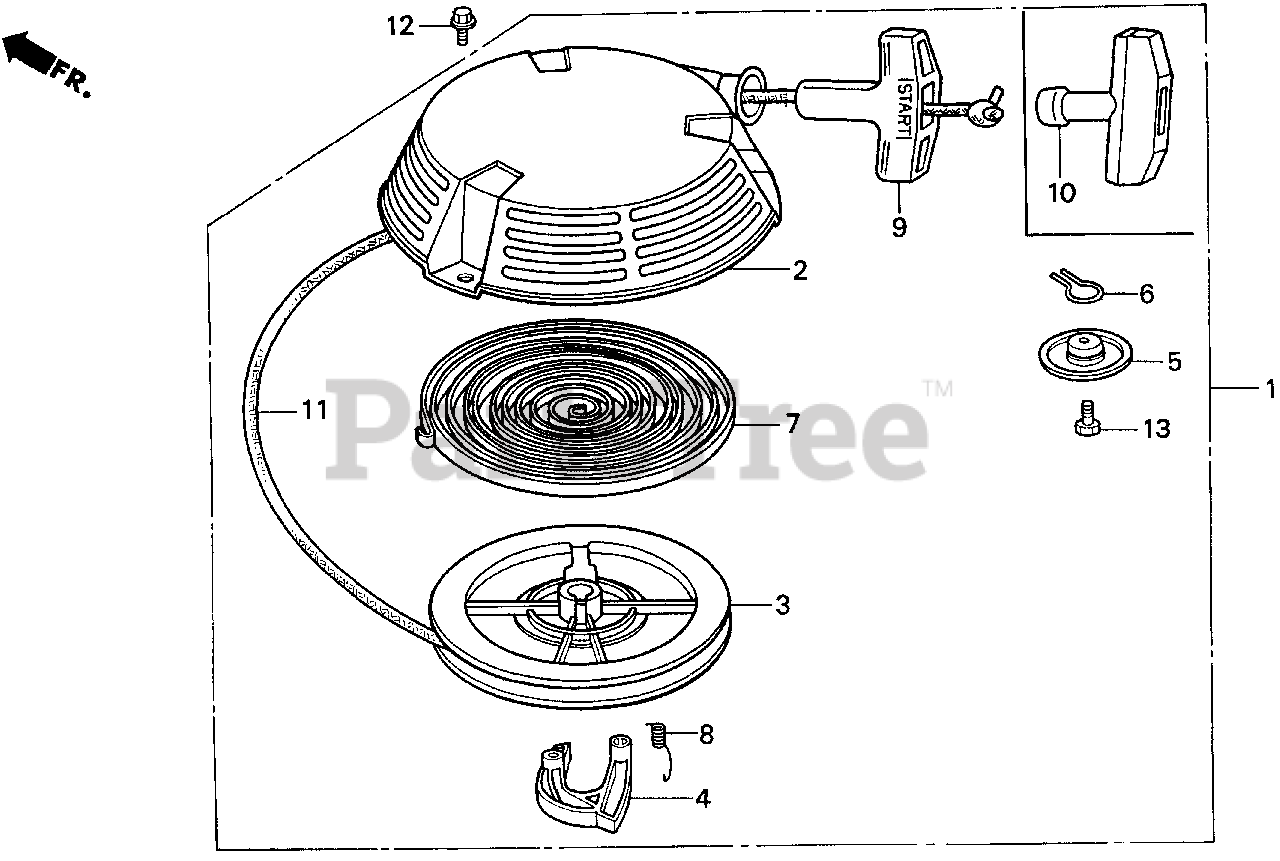

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZE7-003ZA

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R8* (BRIGHT RED)

Note: (Honda Code 3528577).

$

$

Not available

2

Honda 28410-ZE7-003ZA

SEE PART DETAILS - PRI; CASE, RECOIL STARTER *R8* (BRIGHT RED)
(Superseded to 28410-ZE7-003ZD)

Note: (Honda Code 3622552).

$

$

Not available

3

Honda 28420-ZE7-003

PULLEY, RECOIL STARTER

Note: (Honda Code 2289973).

$37.99

$

Usually ships in 3-6 days

0

4

Honda 28422-896-010

SEE PART DETAILS - PRI; RATCHET, STARTER

Note: (Honda Code 1033224).

$7.49

$

In Stock, only 1 left!

0

5

Honda 28431-896-000

PLATE, FRICTION

Note: (Honda Code 0927913).

$5.99

$

Usually ships in 3-6 days

0

6

Honda 28441-896-000

SPRING, FRICTION

Note: (Honda Code 0927921).

$7.99

$

Usually ships in 3-6 days

0

7

Honda 28442-896-700

SPRING, RETURN

Note: (Honda Code 0933101).

$31.99

$

In Stock, only 1 left!

0

8

Honda 28443-896-000

SPRING, RETURN

Note: (Honda Code 0927939).

$4.49

$

In Stock, only 1 left!

0

9

Honda 28461-ZE1-003

KNOB, RECOIL STARTER
(Superseded to 28461-ZE1-013)

Note: (Honda Code 1428747).

$7.99

$

In Stock, Qty 15

0

11

Honda 28462-ZA7-003

SEE PART DETAILS - SUP; ROPE, RECOIL STARTER (#4X55")
(Superseded to 28462-ZE6-T02)

Note: (Honda Code 1410844).

$5.99

$

In Stock, only 1 left!

0

11

Honda 28462-ZE6-T02

SEE PART DETAILS - PRI; ROPE (#4X55")

Note: (Honda Code 3979903).

$5.99

$

In Stock, only 1 left!

0

12

Honda 95701-06008-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X8)

Note: (Honda Code 2581353).

$3.49

$

In Stock, only 1 left!

0

13

Honda 92101-06012-0H

SEE PART DETAILS - PRI; BOLT, HEX. (6X20)

Note: (Honda Code 3438264).

$1.99

$

Usually ships in 3-6 days

0
