HD675-3012 - Kohler HD Series Engine, Made for Stihl, 6.75 ft-lbs, 149cc 08 Fuel System Parts Diagram

HD Series Engine, Made for Stihl, 6.75 ft-lbs, 149cc

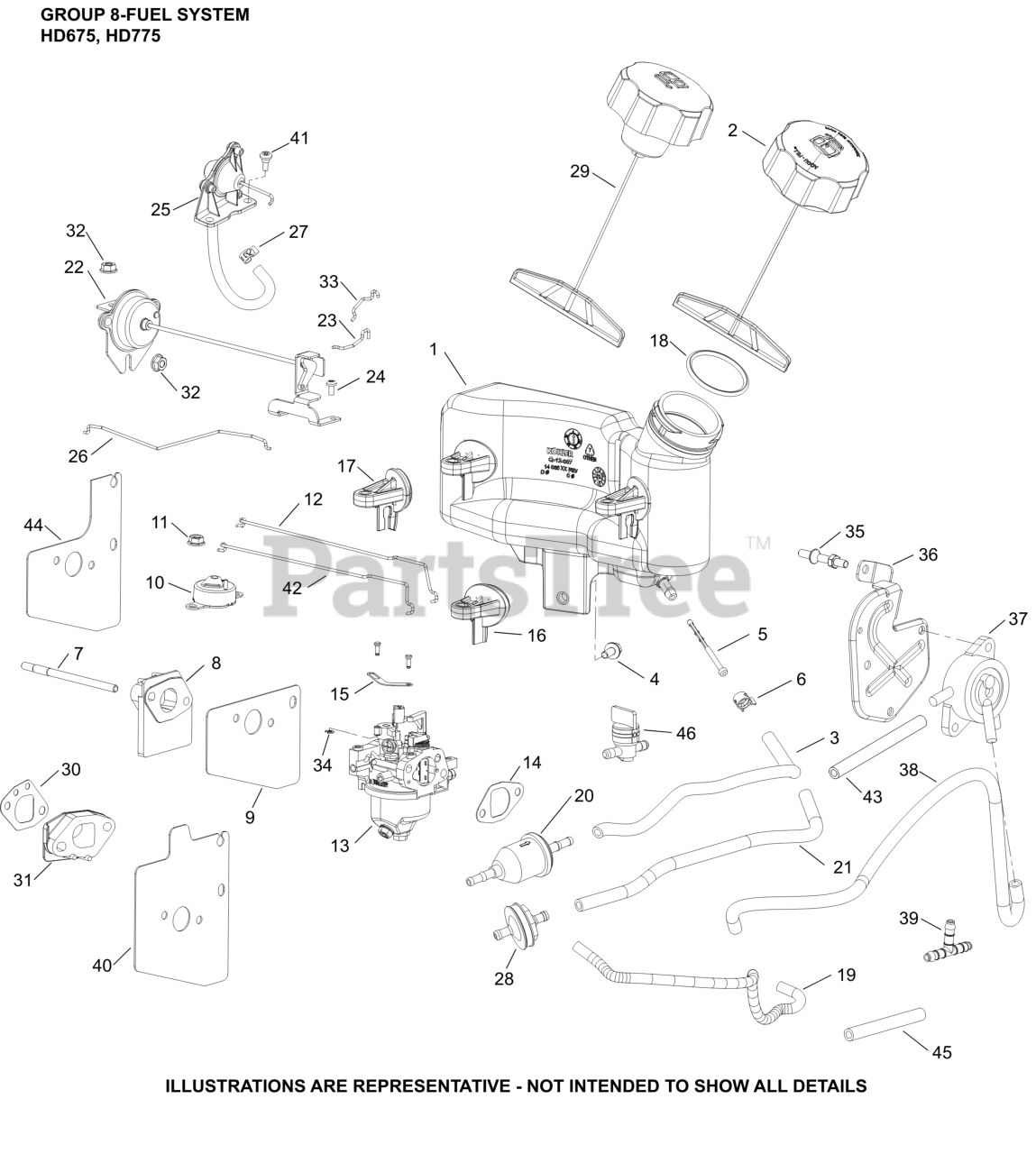

08 Fuel System Parts Diagram

  • Title

1

Kohler 14 065 65-S

FUEL TANK (50-STATE)

$60.99

$

Usually ships in 2-5 days

0

4

Kohler 25 086 429-S

SCREW, THREAD FORMING-USE 25 086 472-S
(Superseded to 25 086 472-S)

$3.99

$

In Stock, Qty 12

0

5

Kohler 14 050 14-S

FILTER, FUEL IN-NIPPLE

$8.49

$

In Stock, Qty 20+

0

6

Kohler 14 237 10-S

CLAMP, HOSE

$2.99

$

In Stock, only 2 left!

0

7

Kohler 14 072 27-S

STUD,M6X1.0X100.2MM

$6.49

$

Usually ships in 2-5 days

0

9

Kohler 14 041 31-S

KIT, CARBURETOR HEAT SHIELD GASKET

$17.99

$

In Stock, Qty 13

0

13

Kohler 14 853 114-S

KIT, CARBURETOR COMPLETE

Note: After S/N 4915700001

$55.99

$

Usually ships in 2-5 days

0

13

Kohler 14 853 67-S

KIT, CARBURETOR

Note: Before S/N 4915700011

$55.99

$

Usually ships in 2-5 days

0

14

Kohler 17 041 03-S

KIT, INTAKE GASKET

$13.99

$

In Stock, Qty 13

0

15

Kohler 14 079 28-S

LINKAGE, CHOKE

$5.99

$

Usually ships in 2-5 days

0

21

Kohler 25 111 69-S

HOSE, FUEL LOW-PERMEATION (CKY)

$11.99

$

In Stock, Qty 14

0

22

Kohler 14 187 17-S

ARM ASSEMBLY, AUTO CHOKE

$36.99

$

Usually ships in 2-5 days

0

24

Kohler 25 086 439-S

SCREW, M4 THREAD FORMING

$2.99

$

In Stock, Qty 15

0

29

Kohler 14 227 24-S

FUEL CAP (CARB)

$35.99

$

Usually ships in 2-5 days

0

30

Kohler 14 041 16-S

GASKET, SPACER - USE 14 041 24-S
(Superseded to 14 041 31-S)

$17.99

$

In Stock, Qty 13

0

31

Kohler 14 112 27-S

SPACER, CARBURETOR

$6.99

$

In Stock, only 3 left!

0

32

Kohler 14 100 16-S

NUT, HEX FLANGE (M6)

$2.99

$

In Stock, Qty 20+

0

33

Kohler 14 079 26-S

LINKAGE, AUTO CHOKE

$5.99

$

In Stock, only 4 left!

0

34

Kohler 14 154 10-S

CLIP

$2.99

$

Usually ships in 2-5 days

0

35

Kohler 14 072 31-S

STUD

$6.49

$

Usually ships in 2-5 days

0

36

Kohler 14 126 99-S

BRACKET,FUEL PUMP MOUNT-USE 14 126 103-S

$

$

Currently unavailable

37

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 20+

0

38

Kohler 14 326 14-S

HOSE, VENT

$7.99

$

Usually ships in 2-5 days

0

39

Kohler 14 294 02-S

FITTING, TEE

$4.99

$

Usually ships in 2-5 days

0

NI

Kohler 14 755 07-S

KIT, HIGH ALT (4000-8000 FT)

Note: Before S/N 4915700011

$22.99

$

Usually ships in 2-5 days

0

NI

Kohler 14 755 08-S

KIT, HIGH ALT (4000-8000 FT)

Note: After S/N 4915700001

$21.99

$

Usually ships in 2-5 days

0

NI

Kohler 14 757 01-S

KIT, CARB REPAIR - USE 14 757 03-S
(Superseded to 14 757 03-S)

Note: Before S/N 4915700011

$19.99

$

In Stock, Qty 16

0

NI

Kohler 14 757 03-S

KIT, CARBURETOR REPAIR (RUIXING)

Note: After S/N 4915700001

$19.99

$

In Stock, Qty 16

0
