HD775-3005 - Kohler HD Series Engine, Basic Version, 7.75 ft-lbs, 173cc 08 Fuel System Parts Diagram

HD Series Engine, Basic Version, 7.75 ft-lbs, 173cc

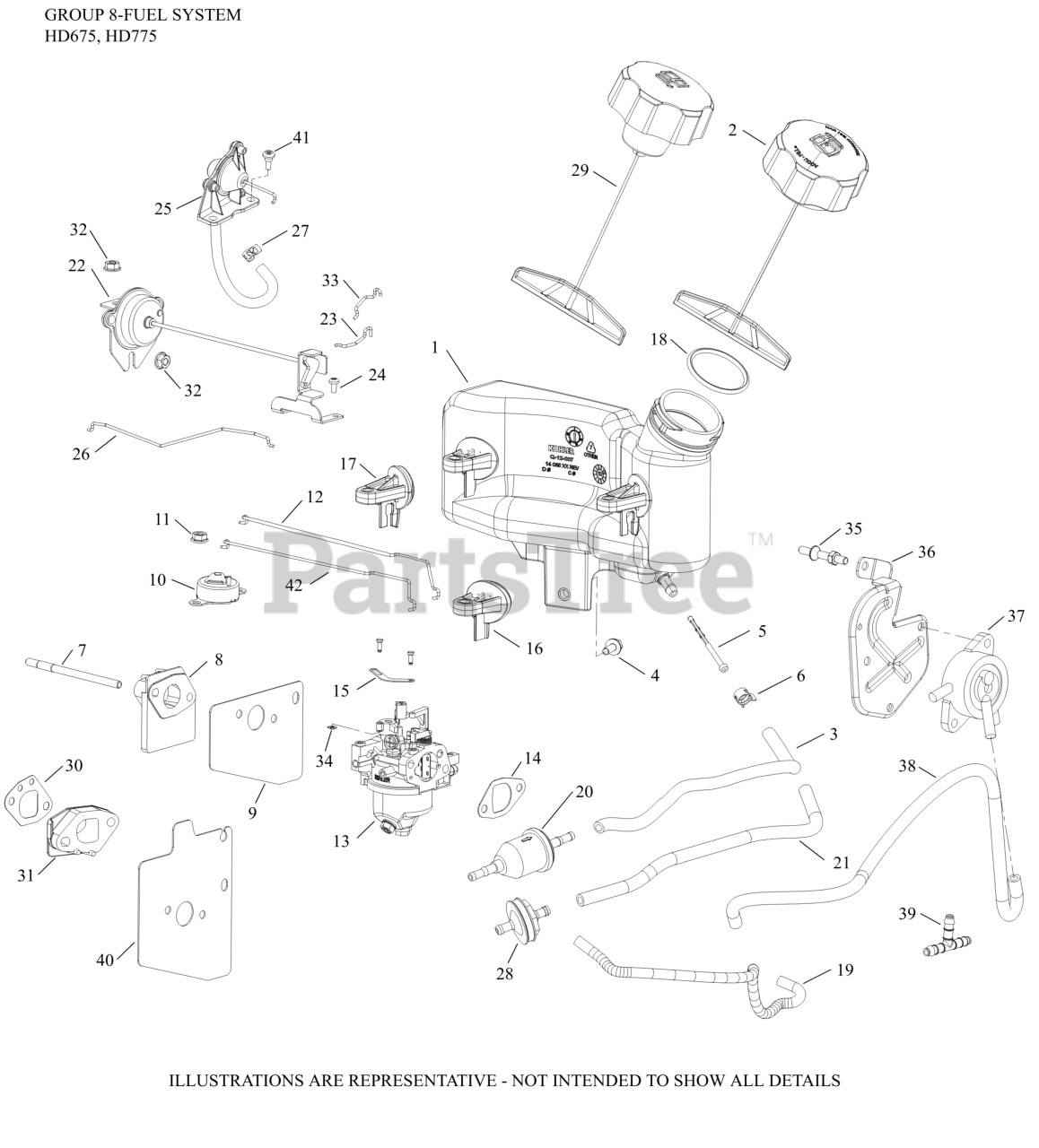

08 Fuel System Parts Diagram

  • Title

1

Kohler 14 065 72-S

TANK, FUEL

$47.99

$

Usually ships in 2-5 days

0

2

Kohler 14 227 26-S

FUEL CAP ASSEMBLY

$30.99

$

In Stock, only 4 left!

0

3

Kohler 25 111 102-S

HOSE, FUEL LOW-PERMEATION

$8.49

$

Usually ships in 2-5 days

0

4

Kohler 25 086 429-S

SCREW, THREAD FORMING-USE 25 086 472-S
(Superseded to 25 086 472-S)

$2.49

$

In Stock, only 2 left!

0

5

Kohler 14 050 14-S

FILTER, FUEL IN-NIPPLE

$6.49

$

In Stock, Qty 16

0

6

Kohler 14 237 10-S

CLAMP, HOSE

$2.49

$

In Stock, Qty 14

0

7

Kohler 14 072 27-S

STUD,M6X1.0X100.2MM

$4.99

$

Usually ships in 2-5 days

0

8

Kohler 14 112 09-S

KIT, SPACER

$16.99

$

Usually ships in 2-5 days

0

9

Kohler 14 041 31-S

KIT, CARBURETOR HEAT SHIELD GASKET

$13.99

$

In Stock, Qty 12

0

13

Kohler 14 853 57-S

KIT, CARBURETOR 13 MM AUTO CHOKE

$43.99

$

In Stock, only 4 left!

0

14

Kohler 17 041 03-S

KIT, INTAKE GASKET

$10.99

$

In Stock, Qty 15

0

16

Kohler 14 126 78-S

BRACKET, FUEL TANK

$

$

Not available

17

Kohler 14 126 79-S

BRACKET, FUEL TANK

$

$

Not available

22

Kohler 14 187 18-S

ARM ASSEMBLY, AUTO CHOKE

$28.99

$

Usually ships in 2-5 days

0

23

Kohler 14 079 31-S

LINKAGE AUTO CHOKE

$4.99

$

Usually ships in 2-5 days

0

24

Kohler 25 086 439-S

SCREW, M4 THREAD FORMING

$1.99

$

In Stock, Qty 5

0

25

Kohler 14 268 04-S

DIAPHRAGM, ASSEMBLY

$19.99

$

In Stock, Qty 8

0

26

Kohler 14 079 04-S

LINKAGE, CHOKE

$4.99

$

Usually ships in 2-5 days

0

27

Kohler 14 237 05-S

CLAMP, HOSE

$2.49

$

In Stock, Qty 5

0

32

Kohler 14 100 16-S

NUT, HEX FLANGE (M6)

$1.99

$

In Stock, only 2 left!

0

41

Kohler 25 086 440-S

SCREW, SHOULDER

$2.49

$

Usually ships in 2-5 days

0

NI

Kohler 14 755 21-S

KIT, HIGH ALTITUDE - USE 14 755 04-S
(Superseded to 14 755 04-S)

$16.99

$

Usually ships in 2-5 days

0

NI

Kohler 14 755 24-S

KIT, HIGH ALTITUDE (ABOVE 8,000 FT.)

$16.99

$

Usually ships in 2-5 days

0

NI

Kohler 14 757 03-S

KIT, CARBURETOR REPAIR (RUIXING)

$15.99

$

In Stock, Qty 20+

0
