HD775-3109 - Kohler HD Series Engine, Made for Shanghai MTD, 7.75 ft-lbs, 173cc 08 Fuel System Parts Diagram

HD Series Engine, Made for Shanghai MTD, 7.75 ft-lbs, 173cc

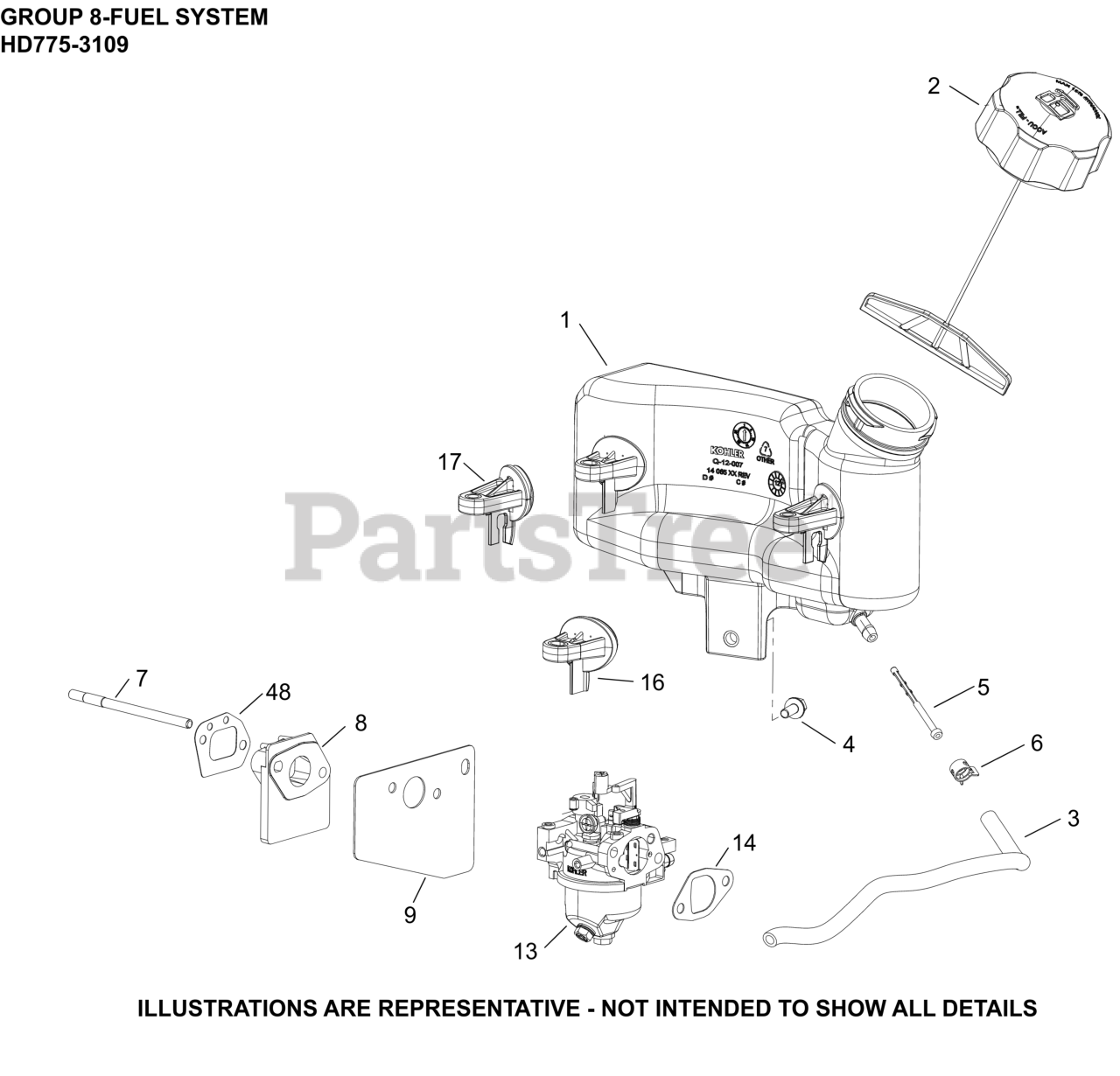

08 Fuel System Parts Diagram

  • Title

1

Kohler 14 065 72-S

TANK, FUEL

$62.99

$

Usually ships in 2-5 days

0

2

Kohler 14 227 26-S

FUEL CAP ASSEMBLY

$38.99

$

In Stock, only 2 left!

0

3

Kohler 25 111 102-S

HOSE, FUEL LOW-PERMEATION

$10.99

$

In Stock, only 1 left!

0

4

Kohler 25 086 459-S

SCREW, HEX FLANGE (M6)

$2.99

$

Usually ships in 2-5 days

0

5

Kohler 14 050 14-S

FILTER, FUEL IN-NIPPLE

$8.49

$

In Stock, Qty 20+

0

6

Kohler 14 237 07-S

CLAMP, HOSE (NON-CALIF)(#1423710S)
(Superseded to 14 237 10-S)

$2.99

$

In Stock, only 2 left!

0

7

Kohler 14 072 23-S

STUD,M6X1.0X100.2MM

$6.49

$

In Stock, Qty 12

0

8

Kohler 14 112 09-S

KIT, SPACER

$20.99

$

Usually ships in 2-5 days

0

9

Kohler 14 041 31-S

KIT, CARBURETOR HEAT SHIELD GASKET

$17.99

$

In Stock, Qty 11

0

13

Kohler 14 853 58-S

KIT, CARBURETOR 13 MM STD CHOKE

$55.99

$

In Stock, only 2 left!

0

14

Kohler 17 041 03-S

KIT, INTAKE GASKET

$13.99

$

In Stock, Qty 11

0

16

Kohler 14 126 78-S

BRACKET, FUEL TANK-DISCONTINUED

$

$

Not available

17

Kohler 14 126 79-S

BRACKET, FUEL TANK-DISCONTINUED

$

$

Not available

48

Kohler 14 041 07-S

GASKET SPACER

$2.99

$

Usually ships in 2-5 days

0

NI

Kohler 14 755 21-S

KIT,HIGH AL(4000-8000 FT)USE 14 755 04-S
(Superseded to 14 755 04-S)

$21.99

$

Usually ships in 2-5 days

0

NI

Kohler 14 757 03-S

KIT, CARBURETOR REPAIR (RUIXING)

$19.99

$

In Stock, Qty 15

0
