HEZ 2450 S - RedMax Edger (SN: 90900101 & Above) DRIVE Parts Diagram

Edger

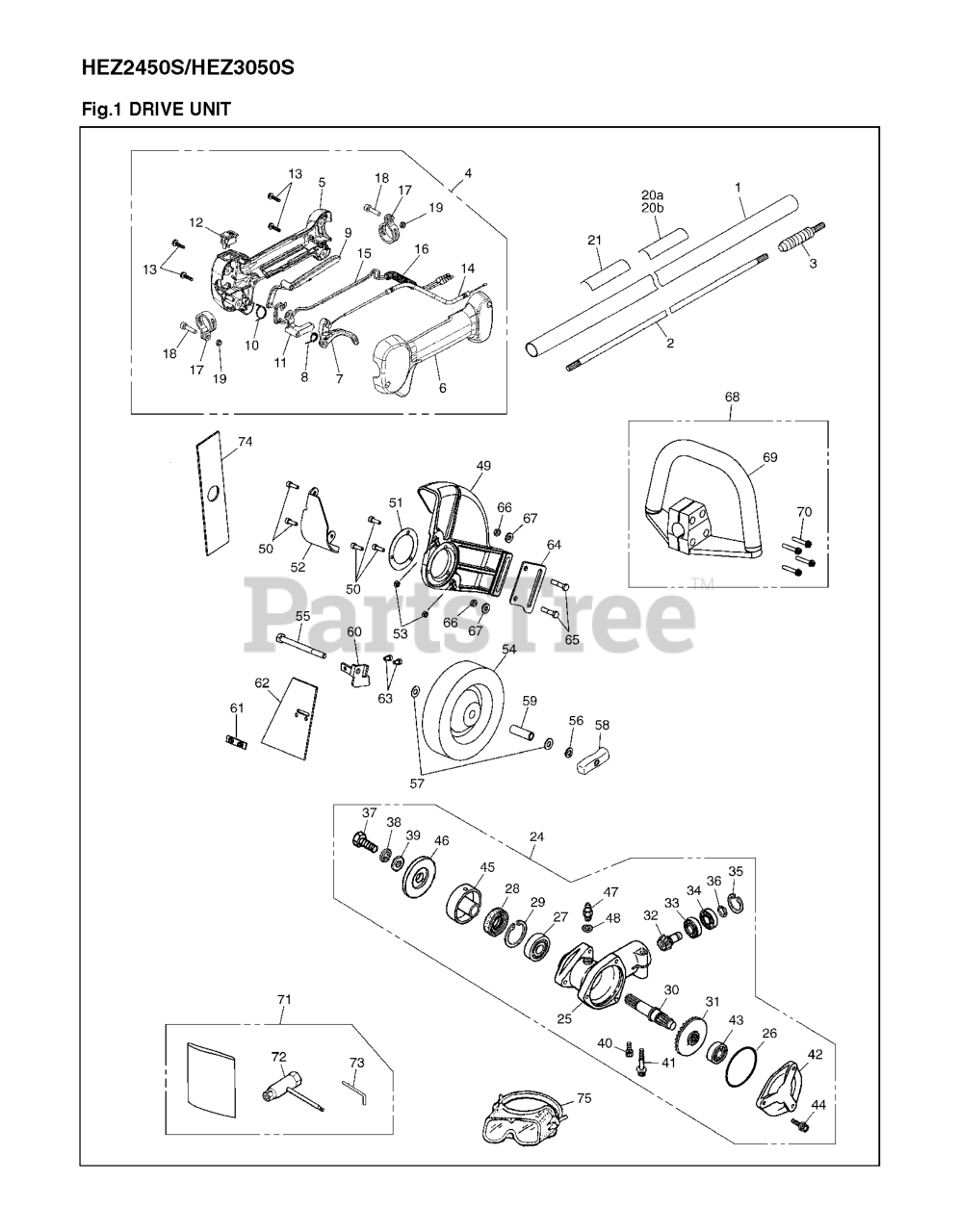

DRIVE Parts Diagram

  • Title

1

RedMax 510980701

PIPE COMP (RPLS 848A475820)

$79.99

$

Usually ships in 3-10 days

0

2

RedMax 511553501

DRIVE SHAFT (BCZ2601S)

$102.99

$

Usually ships in 3-10 days

0

3

RedMax 528797001

JOINT COMP

$

$

Not available

4

RedMax 529262601

Note: . 5-10 11-19

$

$

Not available

5

RedMax 529257701

BODY-R

Note: RIGHT

$

$

Not available

6

RedMax 529258601

BODY-L

Note: LEFT

$27.99

$

Usually ships in 3-10 days

0

7

RedMax 529258801

LEVER, THROTTLE

$7.49

$

In Stock, only 4 left!

0

8

RedMax 529259601

SPRING, THROTTLE

$7.49

$

In Stock, only 3 left!

0

9

RedMax 529259001

LEVER FOR GRIP (RPLS -0600)
(Superseded to 578778001)

$3.99

$

In Stock, only 1 left!

0

10

RedMax 511591801

SPRING

$3.99

$

In Stock, only 3 left!

0

11

RedMax 529259201

LEVER JOINT

$4.99

$

In Stock, only 2 left!

0

12

RedMax 521851601

SWITCH

$10.99

$

In Stock, Qty 12

0

13

RedMax 521517701

SCREW

$4.99

$

In Stock, Qty 5

0

14

RedMax 529257101

CABLE-C

$12.99

$

In Stock, Qty 6

0

15

RedMax 529256101

CORD - C

$7.49

$

In Stock, only 2 left!

0

16

RedMax 521805501

TUBE

$4.99

$

Usually ships in 3-10 days

0

17

RedMax 529259401

BAND

$10.99

$

Usually ships in 3-10 days

0

18

RedMax 504114301

BOLT

$6.49

$

In Stock, Qty 12

0

19

RedMax 510911101

NUT
(Superseded to 579000001)

$8.99

$

Usually ships in 3-10 days

0

20a

RedMax 527067201

$

$

Not available

20b

RedMax 527067601

$

$

Not available

21

RedMax 510962901

LABEL CAUTON FOR BC

$7.49

$

Usually ships in 3-10 days

0

24

RedMax 515589801

GEARCASE ASSY

Note: . 24-48

$278.99

$

Usually ships in 3-10 days

0

25

RedMax 505168401

GEARCASE

$91.99

$

In Stock, only 3 left!

0

26

RedMax 505168501

O-RING

$

$

Not available

27

RedMax 505168601

BEARING

$

$

Not available

28

RedMax 505168701

OIL SEAL

$6.49

$

In Stock, only 2 left!

0

29

RedMax 504121001

RING

$3.99

$

Usually ships in 3-10 days

0

30

RedMax 514366401

SHAFT

$36.99

$

Usually ships in 3-10 days

0

31

RedMax 505169001

GEAR

$

$

Not available

32

RedMax 505169101

PINION

$36.99

$

In Stock, only 3 left!

0

33

RedMax 505169201

BEARING

$10.99

$

In Stock, only 3 left!

0

34

RedMax 505169301

BEARING

$8.99

$

In Stock, only 3 left!

0

35

RedMax 505169401

RP_RING

$3.99

$

Usually ships in 3-10 days

0

36

RedMax 505169501

RING

$3.49

$

Usually ships in 3-10 days

0

37

RedMax 505169601

BOLT M8 X L25 L/H

$7.49

$

In Stock, Qty 20+

0

38

RedMax 505169701

WASHER

$4.99

$

In Stock, only 3 left!

0

39

RedMax 505169801

WASHER

$4.99

$

In Stock, only 3 left!

0

40

RedMax 516070401

BOLT, M5 x 12

$3.49

$

Usually ships in 3-10 days

0

41

RedMax 506614901

BOLT

$3.99

$

In Stock, only 1 left!

0

42

RedMax 505170101

COVER

$14.99

$

In Stock, only 2 left!

0

43

RedMax 505170201

BEARING

$9.99

$

In Stock, only 4 left!

0

44

RedMax 505170601

BOLT M5 X L14 ALLEN
(Superseded to 574081301)

$3.99

$

Usually ships in 3-10 days

0

45

RedMax 514366601

HOLDER(A)

Note: (A)

$26.99

$

In Stock, only 2 left!

0

46

RedMax 505171401

HOLDER (B)

Note: (B)

$12.99

$

In Stock, Qty 6

0

47

RedMax 505171501

FITTING

$6.49

$

Usually ships in 3-10 days

0

48

RedMax 505171601

WASHER

$3.99

$

Usually ships in 3-10 days

0

49

RedMax 510981001

GUARD
(Superseded to 510981002)

$53.99

$

In Stock, only 2 left!

0

50

RedMax 505171801

BOLT M5 X L16 ALLEN

$7.49

$

In Stock, Qty 10

0

51

RedMax 505171901

PLATE

$10.99

$

In Stock, only 4 left!

0

52

RedMax 526059401

PROTECTOR

$9.99

$

In Stock, Qty 15

0

53

RedMax 505172301

NUT

$4.99

$

In Stock, only 2 left!

0

54

RedMax 505172501

WHEEL

$42.99

$

In Stock, only 2 left!

0

55

RedMax 574069801

BOLT
(Superseded to 505172601)

$4.99

$

In Stock, only 4 left!

0

56

RedMax 505172901

WASHER

$4.99

$

In Stock, only 2 left!

0

57

RedMax 505173001

WASHER

$4.99

$

In Stock, Qty 12

0

58

RedMax 527068601

NUT

$15.99

$

In Stock, only 2 left!

0

59

RedMax 505173301

SLEEVE

$12.99

$

In Stock, Qty 7

0

60

RedMax 505173501

BRACKET

$8.99

$

In Stock, Qty 20+

0

61

RedMax 505173601

PLATE

$7.49

$

In Stock, Qty 17

0

62

RedMax 505173701

RUBBER

$15.99

$

In Stock, Qty 20+

0

63

RedMax 505169901

BOLT M5 X L10 ALLEN BOLT
(Superseded to 516070301)

$4.99

$

In Stock, only 3 left!

0

64

RedMax 505174601

MAIN BRACKET

$10.99

$

In Stock, only 1 left!

0

65

RedMax 574069701

BOLT
(Superseded to 505174701)

$4.99

$

In Stock, Qty 5

0

66

RedMax 505174801

NUT

$3.99

$

Usually ships in 3-10 days

0

67

RedMax 505173001

WASHER

$4.99

$

In Stock, Qty 12

0

68

RedMax 526056401

HANDLE ASSY. (RPLS T319514001)

Note: . 69-73

$34.99

$

In Stock, Qty 5

0

69

RedMax 512553501

HANDLE T

$

$

Not available

70

RedMax 521863101

SCREW

$4.99

$

In Stock, Qty 17

0

71

RedMax 510959301

TOOL SET

Note: . 72 73

$7.49

$

Usually ships in 3-10 days

0

72

RedMax 510960201

SOCKET

$8.49

$

Usually ships in 3-10 days

0

73

RedMax 505312001

BAR

$4.99

$

Usually ships in 3-10 days

0

74

RedMax 505175301

BLADE

$14.99

$

In Stock, Qty 20+

0

75

RedMax 510989401

GOGGLExxx (RPLS

$

$

Not available
