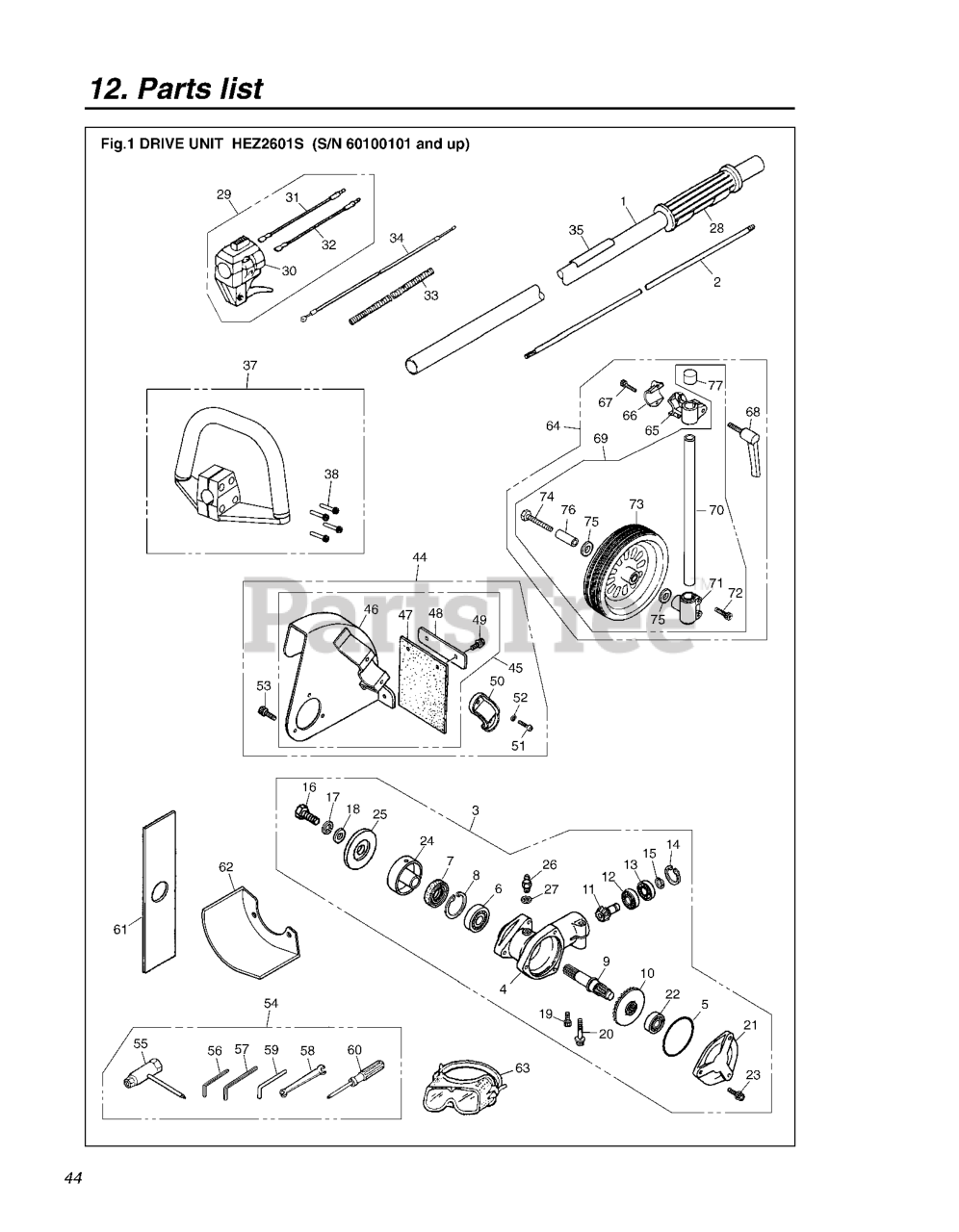

HEZ 2601 S - RedMax Edger (SN: 60100101 & Above) PRODUCT COMPLETE Parts Diagram

Edger

PRODUCT COMPLETE Parts Diagram

  • Title

1

RedMax 512514001

PIPE COMP

$66.99

$

Usually ships in 3-10 days

0

2

RedMax 514344201

SHAFT

$53.99

$

In Stock, only 2 left!

0

3

RedMax 515589801

GEARCASE ASSY

$278.99

$

Usually ships in 3-10 days

0

4

RedMax 505168401

GEARCASE

$91.99

$

In Stock, only 3 left!

0

5

RedMax 505168501

O-RING

$

$

Not available

6

RedMax 505168601

BEARING

$

$

Not available

7

RedMax 505168701

OIL SEAL

$6.49

$

In Stock, only 2 left!

0

8

RedMax 504121001

RING

$3.99

$

Usually ships in 3-10 days

0

9

RedMax 514366401

SHAFT

$36.99

$

Usually ships in 3-10 days

0

10

RedMax 505169001

GEAR

$

$

Not available

11

RedMax 505169101

PINION

$36.99

$

In Stock, only 3 left!

0

12

RedMax 505169201

BEARING

$10.99

$

In Stock, only 3 left!

0

13

RedMax 505169301

BEARING

$8.99

$

In Stock, only 3 left!

0

14

RedMax 505169401

RP_RING

$3.99

$

Usually ships in 3-10 days

0

15

RedMax 505169501

RING

$3.49

$

Usually ships in 3-10 days

0

16

RedMax 505169601

BOLT M8 X L25 L/H

$7.49

$

In Stock, Qty 20+

0

17

RedMax 505169701

WASHER

$4.99

$

In Stock, only 3 left!

0

18

RedMax 505169801

WASHER

$4.99

$

In Stock, only 3 left!

0

19

RedMax 516070401

BOLT, M5 x 12

$3.49

$

Usually ships in 3-10 days

0

20

RedMax 506614901

BOLT

$3.99

$

In Stock, only 1 left!

0

21

RedMax 505170101

COVER

$14.99

$

In Stock, only 2 left!

0

22

RedMax 505170201

BEARING

$9.99

$

In Stock, only 4 left!

0

23

RedMax 505170601

BOLT M5 X L14 ALLEN
(Superseded to 574081301)

$3.99

$

Usually ships in 3-10 days

0

24

RedMax 514366601

HOLDER(A)

$26.99

$

In Stock, only 2 left!

0

25

RedMax 505171401

HOLDER (B)

$12.99

$

In Stock, Qty 6

0

26

RedMax 505171501

FITTING

$6.49

$

Usually ships in 3-10 days

0

27

RedMax 505171601

WASHER

$3.99

$

Usually ships in 3-10 days

0

28

RedMax 521651001

OBSOLETE - GRIP (RPL 322011330&357732141)

$8.93

$

Usually ships in 3-10 days

0

29

RedMax 521529701

LEVER COMP (RPLS 8488R20343)

$

$

Not available

30

RedMax 521529601

LEVER (FLEX. LEVER)(RPLS -13)

$60.99

$

Usually ships in 3-10 days

0

31

RedMax 521803401

CORD (A), BLACK

$7.99

$

In Stock, only 1 left!

0

32

RedMax 521803501

CORD (B), RED

$8.99

$

Usually ships in 3-10 days

0

33

RedMax 512497101

TUBE

$4.99

$

Usually ships in 3-10 days

0

34

RedMax 512498601

CABLE-C

$18.99

$

Usually ships in 3-10 days

0

35

RedMax 527068401

$

$

Not available

37

RedMax 526056401

HANDLE ASSY. (RPLS T319514001)

$34.99

$

In Stock, Qty 5

0

38

RedMax 521863101

SCREW

$4.99

$

In Stock, Qty 17

0

44

RedMax 521453301

$

$

Not available

45

RedMax 515591301

$

$

Not available

46

RedMax 515591401

GUARD

$

$

Not available

47

RedMax 515591501

PLATE

$4.99

$

Usually ships in 3-10 days

0

48

RedMax 515591701

PLATE

$

$

Not available

49

RedMax 510455701

BOLT

$3.49

$

Usually ships in 3-10 days

0

50

RedMax 515479501

CLAMP

$

$

Not available

51

RedMax 516071901

BOLT, M6 x 18

$1.49

$

Usually ships in 3-10 days

0

52

RedMax 510488001

WASHER

$4.99

$

In Stock, only 1 left!

0

53

RedMax 505170601

BOLT M5 X L14 ALLEN
(Superseded to 574081301)

$3.99

$

Usually ships in 3-10 days

0

54

RedMax 510959101

TOOL SET

$

$

Not available

55

RedMax 510960201

SOCKET

$8.49

$

Usually ships in 3-10 days

0

56

RedMax 505311901

WRENCH

$

$

Not available

57

RedMax 516144701

Wrench Tool

$4.99

$

Usually ships in 3-10 days

0

58

RedMax 506615001

SPANNER

$7.49

$

In Stock, Qty 10

0

59

RedMax 505312001

BAR

$4.99

$

Usually ships in 3-10 days

0

60

RedMax 506689501

DRIVER

$7.99

$

Usually ships in 3-10 days

0

61

RedMax 505175301

BLADE

$14.99

$

In Stock, Qty 20+

0

62

RedMax 521807601

COVER

$24.99

$

In Stock, only 1 left!

0

63

RedMax 510989401

GOGGLExxx (RPLS

$

$

Not available

64

RedMax 521807801

WHEEL-ASSY***

$194.99

$

Usually ships in 3-10 days

0

65

RedMax 515591001

BRACKET-24

$

$

Not available

66

RedMax 514395601

CAP-L

$4.99

$

Usually ships in 3-10 days

0

67

RedMax 516070901

BOLT, M5 x 22

$3.49

$

Usually ships in 3-10 days

0

68

RedMax 515325001

LEVER

$24.99

$

Usually ships in 3-10 days

0

69

RedMax 526024901

WHEEL ASSY (RPLS -25100)
(Superseded to 521807801)

Note: T305225101

$194.99

$

Usually ships in 3-10 days

0

70

RedMax 515590901

PIPE

$27.99

$

Usually ships in 3-10 days

0

71

RedMax 515070401

$

$

Not available

72

RedMax 506609501

BOLT

$3.99

$

Usually ships in 3-10 days

0

73

RedMax 521807901

$

$

Not available

74

RedMax 516067401

BOLT (RPLS 0101081060)

$

$

Not available

75

RedMax 516078901

WASHER, M10 x 1.6

$

$

Not available

76

RedMax 521808001

SPACER, PIPE

$

$

Not available

77

RedMax 521807701

CAP

$3.99

$

Usually ships in 3-10 days

0
