HEZ 2602 S - RedMax Edger (SN: 60800001 - 70200100) CUTTING EQUIPMENT Parts Diagram

Edger

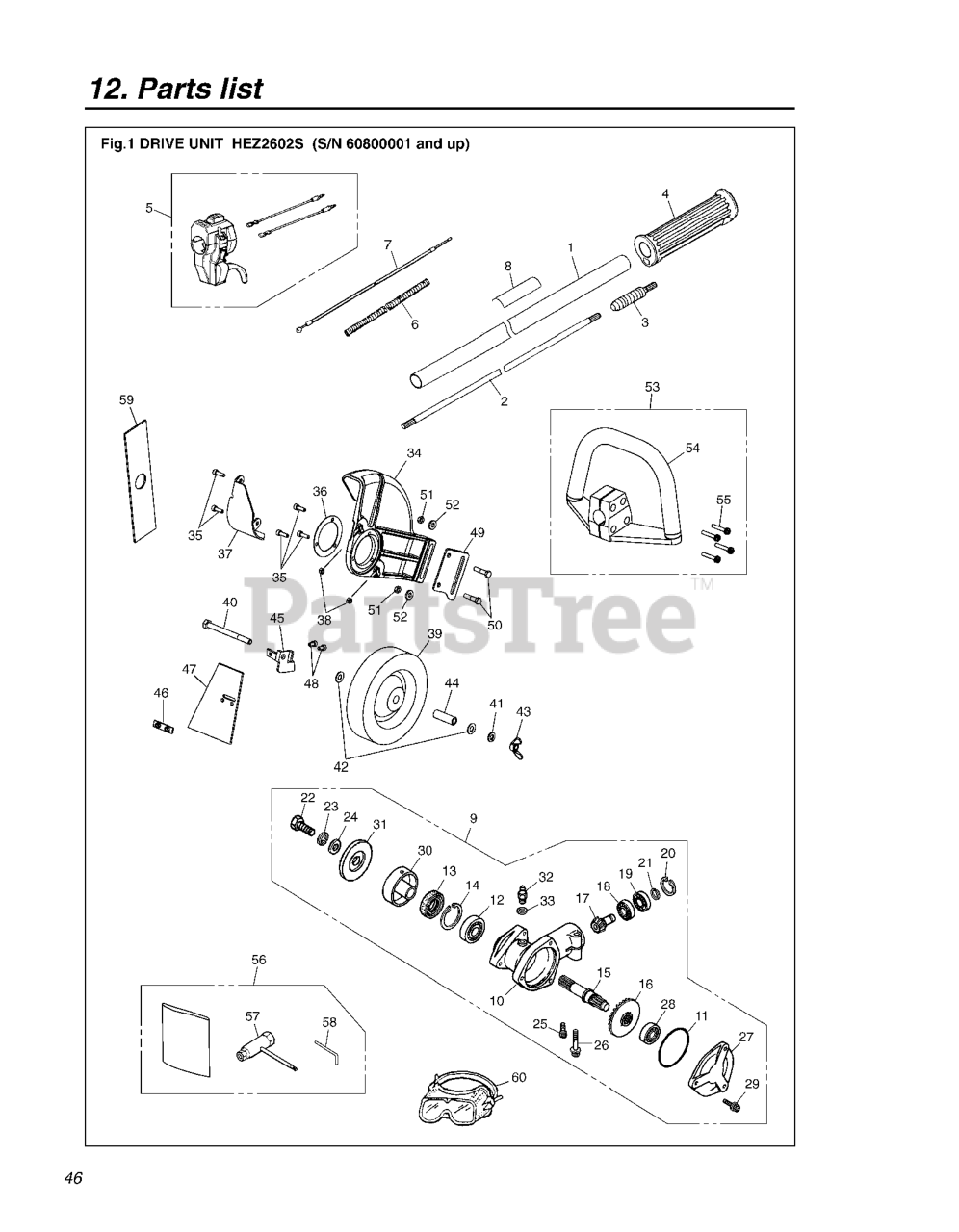

CUTTING EQUIPMENT Parts Diagram

  • Title

1

RedMax 510980701

PIPE COMP (RPLS 848A475820)

$159.99

$

Usually ships in 3-10 days

0

2

RedMax 511553501

DRIVE SHAFT (BCZ2601S)

$

$

Not available

3

RedMax 574508301

JOINT COMP
(Superseded to 966259701)

$

$

Not available

4

RedMax 521651001

OBSOLETE - GRIP (RPL 322011330&357732141)

$

$

Not available

5

RedMax 521529701

LEVER COMP (RPLS 8488R20343)

$

$

Not available

6

RedMax 512497101

TUBE

$4.99

$

Usually ships in 3-10 days

0

7

RedMax 512498601

CABLE-C

$

$

Not available

8

RedMax 510981501

$

$

Not available

9

RedMax 515589801

GEARCASE ASSY

$284.99

$

Usually ships in 3-10 days

0

10

RedMax 505168401

GEARCASE

$62.99

$

In Stock, only 1 left!

0

11

RedMax 505168501

O-RING

$3.49

$

Usually ships in 3-10 days

0

12

RedMax 505168601

BEARING

$13.99

$

Usually ships in 3-10 days

0

13

RedMax 505168701

OIL SEAL

$5.99

$

In Stock, only 3 left!

0

14

RedMax 504121001

RING

$2.49

$

In Stock, only 2 left!

0

15

RedMax 514366401

SHAFT

$45.99

$

In Stock, only 1 left!

0

16

RedMax 505169001

GEAR

$56.99

$

In Stock, only 2 left!

0

17

RedMax 505169101

PINION

$28.99

$

In Stock, only 2 left!

0

18

RedMax 505169201

BEARING

$6.99

$

In Stock, only 4 left!

0

19

RedMax 505169301

BEARING

$6.99

$

In Stock, only 2 left!

0

20

RedMax 505169401

RP_RING

$3.49

$

Usually ships in 3-10 days

0

21

RedMax 505169501

RING

$7.99

$

Usually ships in 3-10 days

0

22

RedMax 505169601

BOLT M8 X L25 L/H

$5.99

$

In Stock, Qty 7

0

23

RedMax 505169701

WASHER

$3.49

$

In Stock, Qty 5

0

24

RedMax 505169801

WASHER

$3.49

$

In Stock, Qty 7

0

25

RedMax 516070401

BOLT, M5 x 12

$3.49

$

Usually ships in 3-10 days

0

26

RedMax 506614901

BOLT

$3.49

$

Usually ships in 3-10 days

0

27

RedMax 505170101

COVER

$17.99

$

In Stock, only 1 left!

0

28

RedMax 505170201

BEARING

$9.49

$

In Stock, only 1 left!

0

29

RedMax 505170601

BOLT M5 X L14 ALLEN
(Superseded to 574081301)

$3.49

$

Usually ships in 3-10 days

0

30

RedMax 514366601

HOLDER(A)

$17.99

$

In Stock, only 1 left!

0

31

RedMax 505171401

HOLDER (B)

$14.99

$

Usually ships in 3-10 days

0

32

RedMax 505171501

FITTING

$5.99

$

In Stock, only 3 left!

0

33

RedMax 505171601

WASHER

$3.49

$

In Stock, only 1 left!

0

34

RedMax 510981001

GUARD
(Superseded to 510981002)

$74.99

$

In Stock, only 2 left!

0

35

RedMax 505171801

BOLT M5 X L16 ALLEN

$6.99

$

In Stock, only 2 left!

0

36

RedMax 505171901

PLATE

$5.99

$

In Stock, only 2 left!

0

37

RedMax 526059401

PROTECTOR

$9.49

$

In Stock, Qty 20+

0

38

RedMax 505172301

NUT

$3.49

$

In Stock, only 2 left!

0

39

RedMax 505172501

WHEEL

$22.99

$

In Stock, only 2 left!

0

40

RedMax 505172601

BOLT M8 X L65

$4.99

$

In Stock, only 3 left!

0

41

RedMax 505172901

WASHER

$3.49

$

In Stock, Qty 10

0

42

RedMax 505173001

WASHER

$3.49

$

In Stock, only 3 left!

0

43

RedMax 505173101

RP_NUT
(Superseded to 527068601)

$17.99

$

In Stock, only 2 left!

0

44

RedMax 505173301

SLEEVE

$11.99

$

In Stock, Qty 6

0

45

RedMax 505173501

BRACKET

$9.49

$

In Stock, Qty 10

0

46

RedMax 505173601

PLATE

$3.49

$

In Stock, Qty 8

0

47

RedMax 505173701

RUBBER

$14.99

$

In Stock, Qty 13

0

48

RedMax 505169901

BOLT M5 X L10 ALLEN BOLT
(Superseded to 516070301)

$3.49

$

In Stock, only 3 left!

0

49

RedMax 505174601

MAIN BRACKET

$7.99

$

In Stock, only 2 left!

0

50

RedMax 505174701

BOLT M8 X L40

$4.99

$

In Stock, only 4 left!

0

51

RedMax 505174801

NUT
(Superseded to 532184362)

$3.49

$

In Stock, only 3 left!

0

52

RedMax 505173001

WASHER

$3.49

$

In Stock, only 3 left!

0

53

RedMax 526056401

HANDLE ASSY. (RPLS T319514001)

$20.99

$

Usually ships in 3-10 days

0

54

RedMax 512553501

HANDLE T

$28.99

$

Usually ships in 3-10 days

0

55

RedMax 521863101

SCREW

$2.49

$

In Stock, Qty 13

0

56

RedMax 510959301

TOOL SET

$5.99

$

In Stock, only 3 left!

0

57

RedMax 510960201

SOCKET
(Superseded to 580335201)

$

$

Not available

58

RedMax 505312001

BAR

$3.49

$

Usually ships in 3-10 days

0

59

RedMax 505175301

BLADE

$11.99

$

In Stock, Qty 20+

0

60

RedMax 510989401

GOGGLExxx (RPLS

$

$

Not available
