HRA216 SXA (MACR) - Honda 21" Walk-Behind Mower, Made in Japan (SN: MACR-3000001 - MACR-5000000) RECOIL STARTER Parts Diagram

21" Walk-Behind Mower, Made in Japan

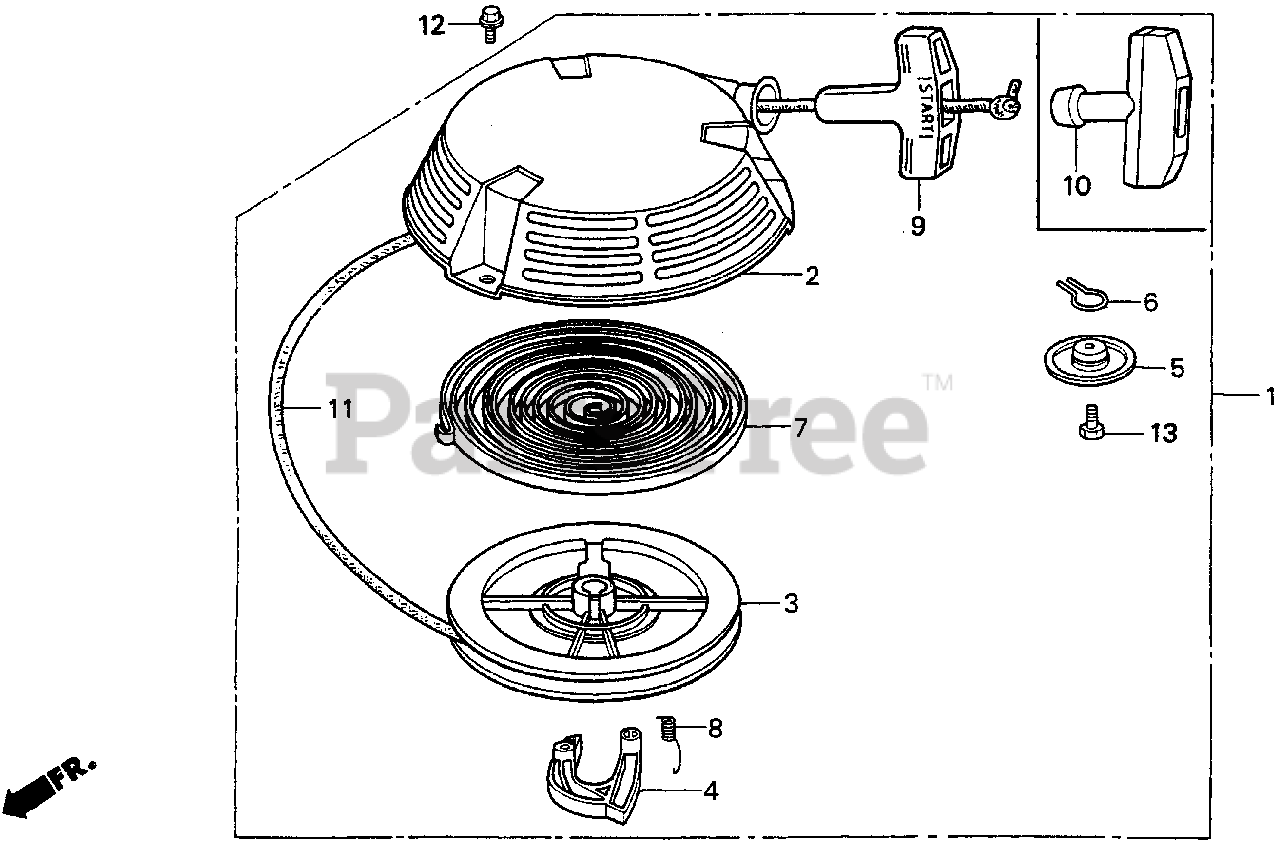

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZE7-003ZA

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R8* (BRIGHT RED)
(Superseded to 28400-ZE7-003ZC)

$108.99

$

Usually ships in 3-6 days

0

1

Honda 28400-ZE7-003ZC

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R280* (POWER RED)

$108.99

$

Usually ships in 3-6 days

0

2

Honda 28410-ZE7-003ZD

CASE, RECOIL STARTER *R280* (POWER RED)

$

$

Not available

3

Honda 28420-ZE7-003

PULLEY, RECOIL STARTER

$

$

Not available

4

Honda 28422-896-010

RATCHET, STARTER

$9.49

$

In Stock, only 2 left!

0

5

Honda 28431-896-000

PLATE, FRICTION

$7.49

$

Usually ships in 3-6 days

0

6

Honda 28441-896-000

SPRING, FRICTION

$9.99

$

Usually ships in 3-6 days

0

7

Honda 28442-896-700

SPRING, RECOIL STARTER

$40.99

$

In Stock, only 1 left!

0

8

Honda 28443-896-000

SPRING, RETURN

$5.99

$

In Stock, Qty 5

0

9

Honda 28461-ZE1-013

SEE PART DETAILS - PRI; KNOB, RECOIL STARTER

Note: Use from Engine SN 1152219.

$9.99

$

In Stock, only 2 left!

0

10

Honda 28461-878-810

GRIP, STARTER

Note: Use up to Engine SN 1152218.

$

$

Not available

11

Honda 28462-ZA7-003

SEE PART DETAILS - SUP; ROPE, RECOIL STARTER
(Superseded to 28462-ZE6-T02)

$6.49

$

In Stock, only 2 left!

0

11

Honda 28462-ZE6-T02

SEE PART DETAILS - PRI; ROPE, LONG (55")

$6.49

$

In Stock, only 2 left!

0

12

Honda 90012-ZE6-000

BOLT, FLANGE (6X8)

$2.99

$

In Stock, only 3 left!

0

13

Honda 92101-06012-0H

BOLT, HEX. (6X12)

$1.99

$

In Stock, Qty 5

0
