iZ 5223 VAN - Husqvarna 52" Zero-Turn Mower (2008-12) STEERING Parts Diagram

52" Zero-Turn Mower

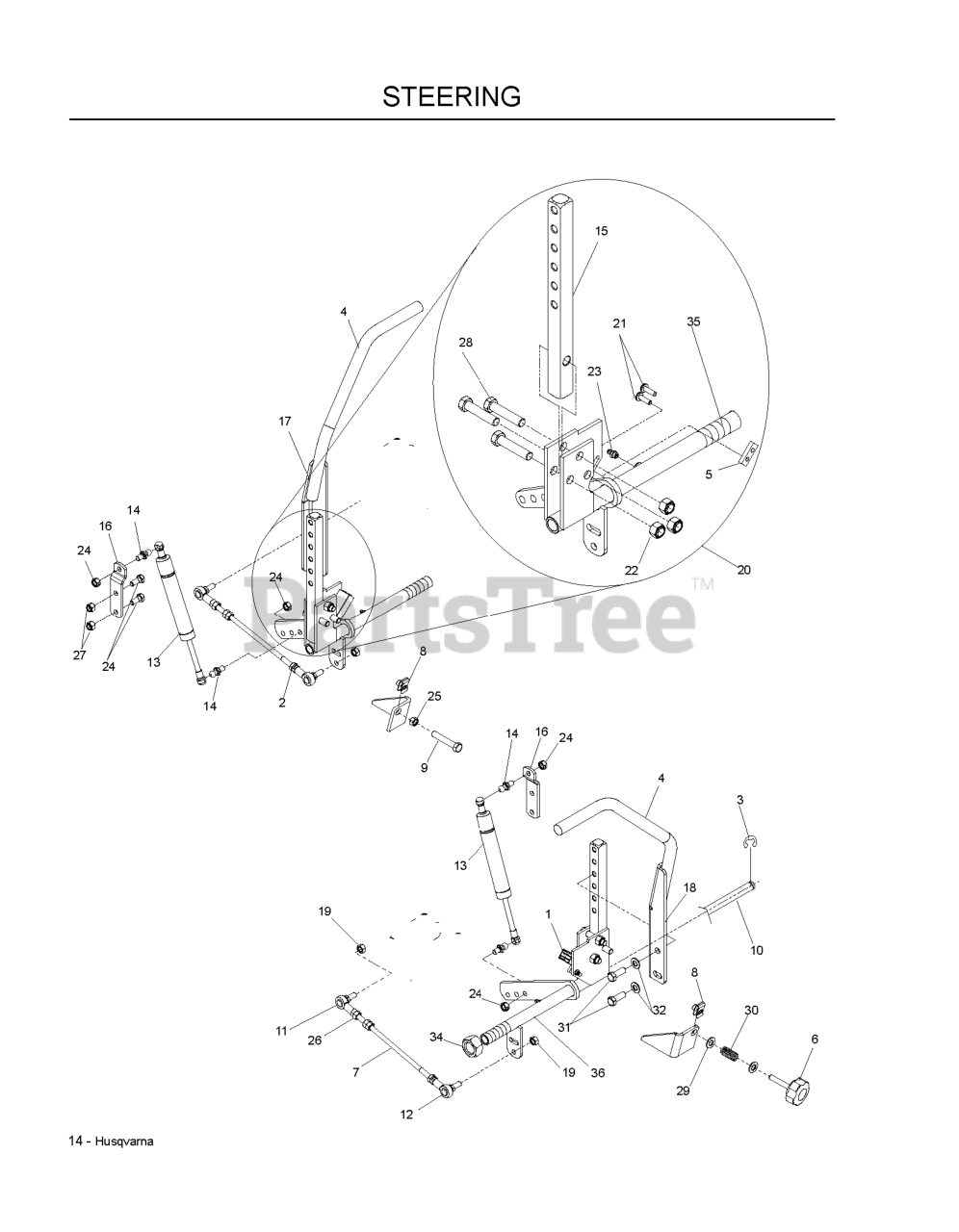

STEERING Parts Diagram

  • Title

9

Husqvarna 539108394

HCS 5/16-18X1-3/4 TPBLT

$

$

Not available

26

Husqvarna 539990223

NUT 5/16F

$

$

Not available

10

Husqvarna 539108659

CONTROL SHAFT

$

$

Not available

29

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

20

Husqvarna 539130704

CONTROL ASM - ADJ, LT

Note: "iZ4217, iZ4819, iZ4821, iZ5223, Iz6125, LT"

$

$

Not available

35

Husqvarna 539131336

CONTROL-DRIVE RT

Note: "iZ4217, iZ4819, iZ4821, iZ5223, Iz6125, RT"

$

$

Not available

7

Husqvarna 539103264

PUMP CONTROL LINK

$

$

Not available

23

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

12

Husqvarna 539110604

SPHERICAL ROD END, LH

Note: LT

$

$

Not available

6

Husqvarna 539103003

ADJUSTMENT KNOB

$

$

Not available

3

Husqvarna 539101949

E-RING 1/2 (2 2)

$

$

Not available

4

Husqvarna 539130894

GRIP - DRIVE LEVER 12"

$7.99

$

In Stock, only 2 left!

0

19

Husqvarna 539110943

NUT 5/16F NYLOC

$

$

Not available

31

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD
(Superseded to 596564401)

$4.99

$

In Stock, Qty 7

0

2

Husqvarna 539991073

NUT 5/16F LEFTHAND
(Superseded to 596584101)

$3.49

$

In Stock, only 2 left!

0

17

Husqvarna 539131623

ASSEMBLY, DRIVE LEVER RT

$

$

Not available

33

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 539110607

STUD.BALL.10MM

$

$

Not available

36

Husqvarna 539111031

DRIVE CONTROL, LT

Note: "iZ4217, iZ4819, iZ4821, iZ5223, Iz6125, LT"

$

$

Not available

34

Husqvarna 539990820

NUT 3/4 X 16 HEX CTR

$

$

Not available

32

Husqvarna 539102593

WASHER, 3/8 DISC SPRING SPEC

$3.49

$

In Stock, only 4 left!

0

25

Husqvarna 539990196

NUT 5/16C HEX

$1.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

16

Husqvarna 539110811

DAMPENER ARM

$

$

Not available

13

Husqvarna 539131932

DAMPENER W/EXT SEAL

$96.99

$

In Stock, only 1 left!

0

1

Husqvarna 539101080

SWITCH, INTERLOCK

$20.99

$

In Stock, only 2 left!

0

11

Husqvarna 539110603

SPHERICAL ROD END, RH

Note: RT

$37.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539111039

COMPRESSION SPRING

$

$

Not available

28

Husqvarna 539990730

HCS 3/8-16 X 1 3/4 GR5
(Superseded to 596583901)

$3.49

$

In Stock, Qty 11

0

15

Husqvarna 539110638

CONTROL ARM

$39.99

$

In Stock, only 1 left!

0

18

Husqvarna 539131622

ASSEMBLY, DRIVE LEVER LT

$

$

Not available

8

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$4.99

$

In Stock, Qty 7

0

21

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.49

$

In Stock, only 1 left!

0

20

Husqvarna 539130703

CONTROL ASM - ADJ, RT

Note: "iZ4217, iZ4819, iZ4821, iZ5223, Iz6125, RT"

$

$

Not available

22

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

24

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$

$

Not available

5

Husqvarna 539102678

TAPPED PLATE

$20.99

$

In Stock, Qty 8

0
