K161-28225 - Kohler K-Series Engine, Basic Version, 7hp, 5.2kW Retractable Starter 020301791 Parts Diagram

K-Series Engine, Basic Version, 7hp, 5.2kW

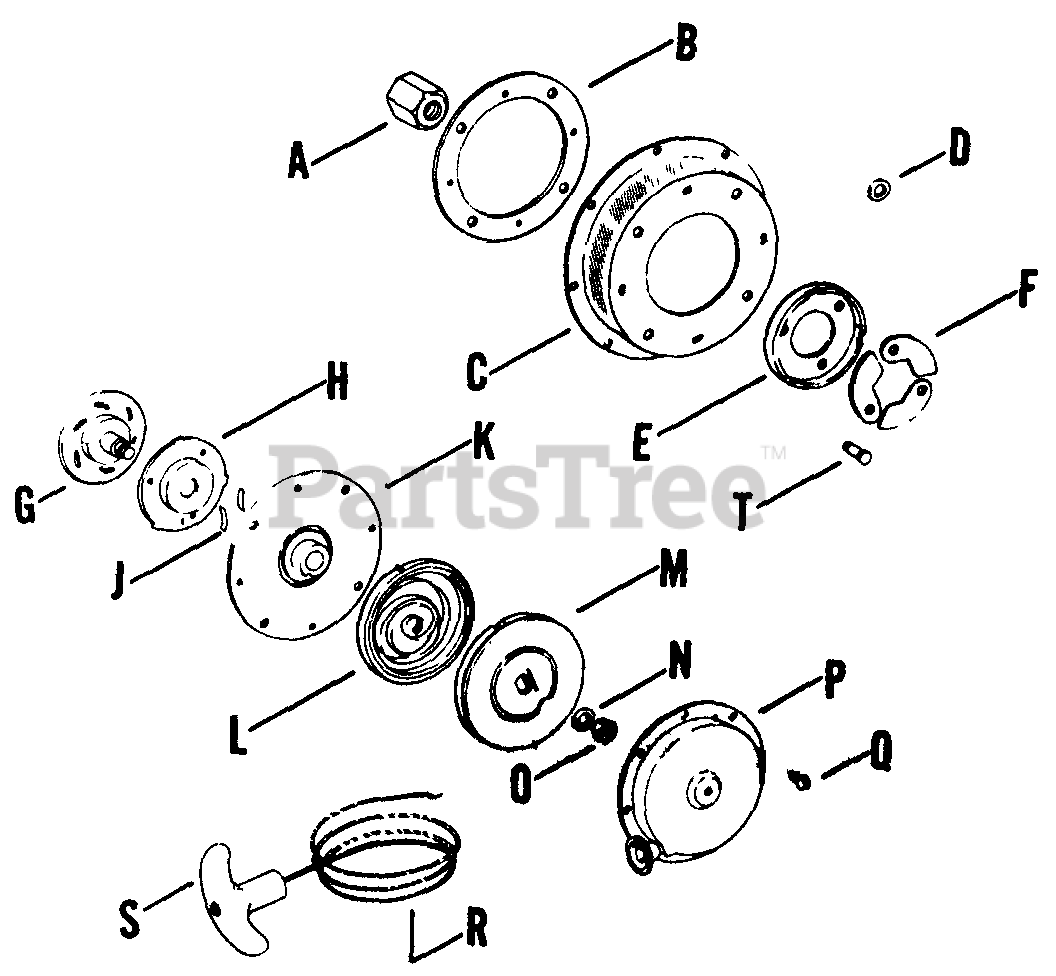

Retractable Starter 020301791 Parts Diagram

  • Title

B-230302

Kohler B-230302

STARTER - USE 221506
(Superseded to 41 755 26)

Note: Replaced by 221506--includes A-231643 starter & 41 071 02-S cup

$

$

Not available

A

Kohler 230580

DISCONTINUED

$

$

Not available

B

Kohler 234238

Plate, nut

Note: Discontinued--not available

$

$

Not available

C

Kohler 234237

Housing, starter

Note: Discontinued--not available

$

$

Not available

D

Kohler 230758

DISCONTINUED

$

$

Not available

E

Kohler 234240

DISCONTINUED

Note: Discontinued--not available

$

$

Not available

F

Kohler 230766

DISCONTINUED

$

$

Not available

G

Kohler 230775

DISCONTINUED

Note: Discontinued--not available

$

$

Not available

H

Kohler 234239

DISCONTINUED

$

$

Not available

J

Kohler 234241

DISCONTINUED

$

$

Not available

K

Kohler 234236

Plate, mounting

Note: Discontinued--not available

$

$

Not available

L

Kohler 230687

SPRING - DISCONTINUED

$

$

Not available

M

Kohler 234228

DISCONTINUED

Note: Discontinued--not available

$

$

Not available

N

Kohler 234231

Washer

Note: Discontinued--not available

$

$

Not available

O

Kohler 234233

Nut, self-lock

Note: Discontinued--not available

$

$

Not available

P

Kohler 234227

Housing, sheave

Note: Discontinued--not available

$

$

Not available

Q

Kohler X-110-1

SCREW - DISCONTINUED

$

$

Not available

R

Kohler 230688-S

CABLE - DISCONTINUED

$

$

Not available

S

Kohler 230738-S

HANDLE - DISCONTINUED

$

$

Not available

T

Kohler 230776

DISCONTINUED

$

$

Not available
