K301-4770 - Kohler K-Series Engine, Made for Case, 12hp, 9kW Baffles And Shroud 2-10-202 Parts Diagram

K-Series Engine, Made for Case, 12hp, 9kW

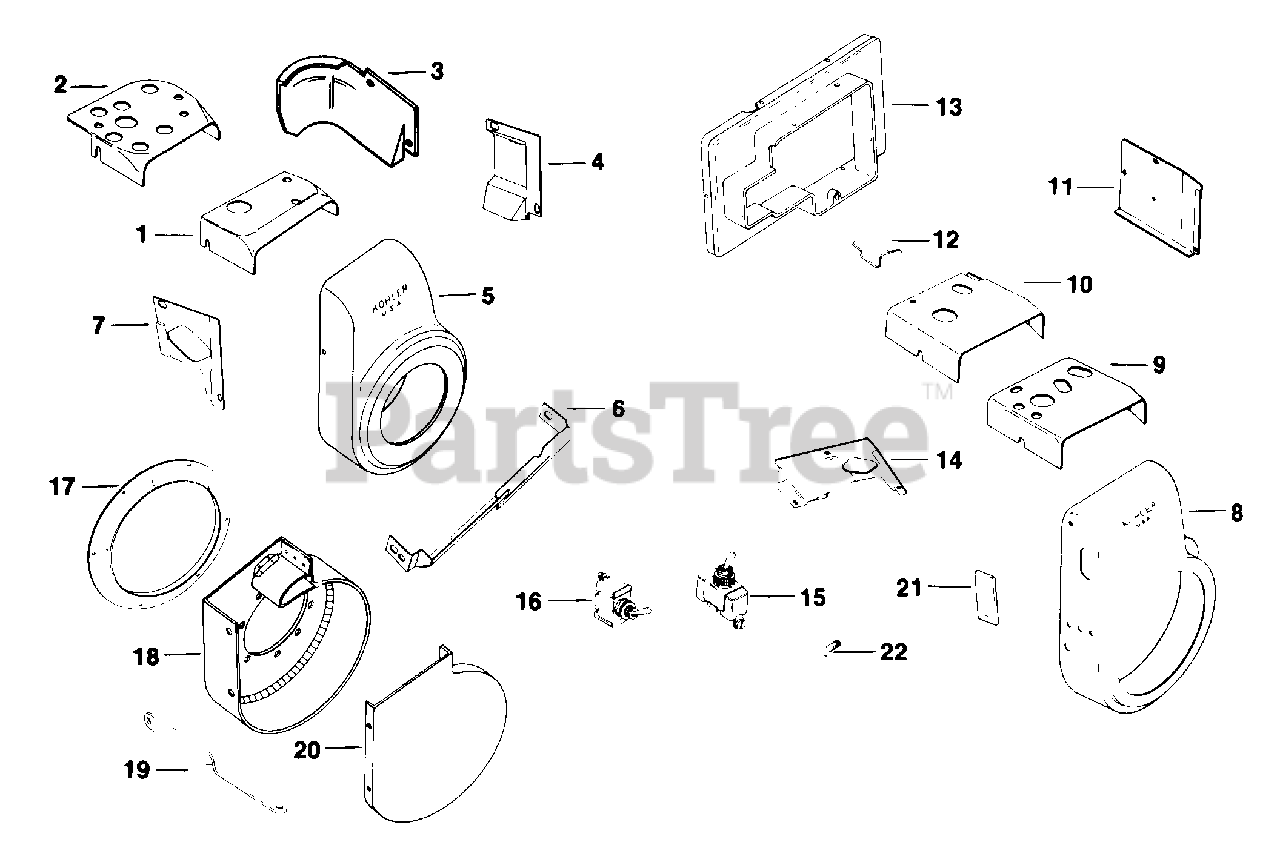

Baffles And Shroud 2-10-202 Parts Diagram

  • Title

2

Kohler 237678-S

BAFFLE, HEAD

$108.99

$

Usually ships in 2-5 days

0

2

Kohler 235955

BAFFLE - DISCONTINUED

Note: Use 237578-S on engines with a spec. suffix of "D" & later.

$

$

Not available

3

Kohler 235054-S

BAFFLE, CYLINDER AIR

$32.99

$

In Stock, only 1 left!

0

5

Kohler 236407

HOUSING - DISCONTINUED

$

$

Not available

7

Kohler 235652-S

BAFFLE, SIDE AIR

$22.99

$

Usually ships in 2-5 days

0

X-132-2-S

Kohler X-132-2-S

SCREW - DISCONTINUED

Note: Not Illustrated.

$2.99

$

In Stock, Qty 6

0

X-132-6-S

Kohler X-132-6-S

SCREW, SEMS 1/4-20-1/2"

Note: Not Illustrated.

$3.49

$

Usually ships in 2-5 days

0

X-25-53-S

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

Note: Not Illustrated.

$3.49

$

In Stock, Qty 13

0
