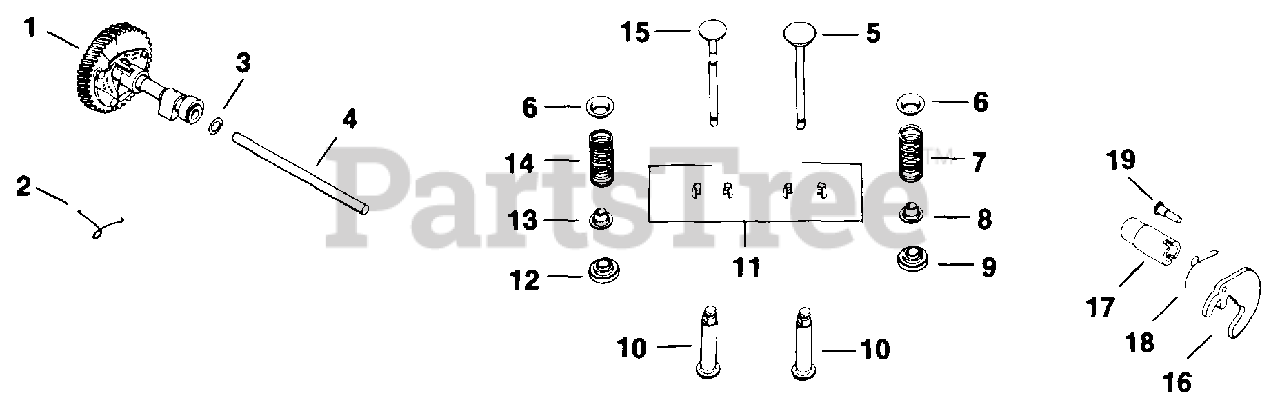

K301-4770 - Kohler K-Series Engine, Made for Case, 12hp, 9kW Camshaft And Valves 4-10-6 (TP-2097) Parts Diagram

K-Series Engine, Made for Case, 12hp, 9kW

Camshaft And Valves 4-10-6 (TP-2097) Parts Diagram

  • Title

1

Kohler 47 010 09-S

CAMSHAFT - DISCONTINUED

$

$

Not available

2

Kohler 47 089 01-S

SPRING, ACTUATING-DISCONTINUED

$

$

Not available

3

Kohler 275066-S

SPACER (.005")

$8.49

$

Usually ships in 2-5 days

0

3

Kohler 275067-S

SPACER (.010")

$8.49

$

In Stock, only 2 left!

0

4

Kohler 235193

PIN - USE 47 380 09
(Superseded to 47 380 09-S)

Note: Replaced by 47 380 09-S

$

$

Not available

5

Kohler 235008-S

VALVE, INTAKE

$

$

Not available

6

Kohler 235011-S

RETAINER, SPRING

$6.49

$

In Stock, Qty 14

0

7

Kohler 235010-S

SPRING, EXHAUST VALVE

$

$

Not available

8

Kohler 230011-S

RETAINER, VALVE SPRING

$9.49

$

In Stock, Qty 11

0

10

Kohler D-235327-S

TAPPET

$

$

Not available

11

Kohler 4175510

Kit, retainer

$

$

Not available

13

Kohler 230011-S

RETAINER, VALVE SPRING

$9.49

$

In Stock, Qty 11

0

14

Kohler 235010-S

SPRING, EXHAUST VALVE

$

$

Not available

15

Kohler 235826-S

VALVE

$70.99

$

Usually ships in 2-5 days

0

16

Kohler 230087

DISCONTINUED

Note: Discontinued not available at Kohler Co. Only serviceable part for the old style camshaft assembly, A-235857. If complete camshaft is necessary, the Automatic Compression Release Camshaft (ACR) 47 010 06-S should be used.

$

$

Not available

17

Kohler 235188

DISCONTINUED

Note: Discontinued not available at Kohler Co. Only serviceable part for the old style camshaft assembly, A-235857. If complete camshaft is necessary, the Automatic Compression Release Camshaft (ACR) 47 010 06-S should be used.

$

$

Not available

17

Kohler 235690

DISCONTINUED

Note: Discontinued not available at Kohler Co. Only serviceable part for the old style camshaft assembly, A-235857. If complete camshaft is necessary, the Automatic Compression Release Camshaft (ACR) 47 010 06-S should be used.

$

$

Not available

18

Kohler 275267-S

SPRING - DISCONTINUED

Note: Only serviceable part for the old style camshaft assembly, A-235857. If complete camshaft is necessary, the Automatic Compression Release Camshaft (ACR) 47 010 06-S should be used.

$

$

Not available

19

Kohler 230080-S

PIN

Note: Only serviceable part for the old style camshaft assembly, A-235857. If complete camshaft is necessary, the Automatic Compression Release Camshaft (ACR) 47 010 06-S should be used.

$12.99

$

Usually ships in 2-5 days

0
