K341-71332 - Kohler K-Series Engine, Made for William & James, 16hp, 11.9kW Retractable Starter 23-10-201 (TP-983-B) Rev 9/27/2006 Parts Diagram

K-Series Engine, Made for William & James, 16hp, 11.9kW

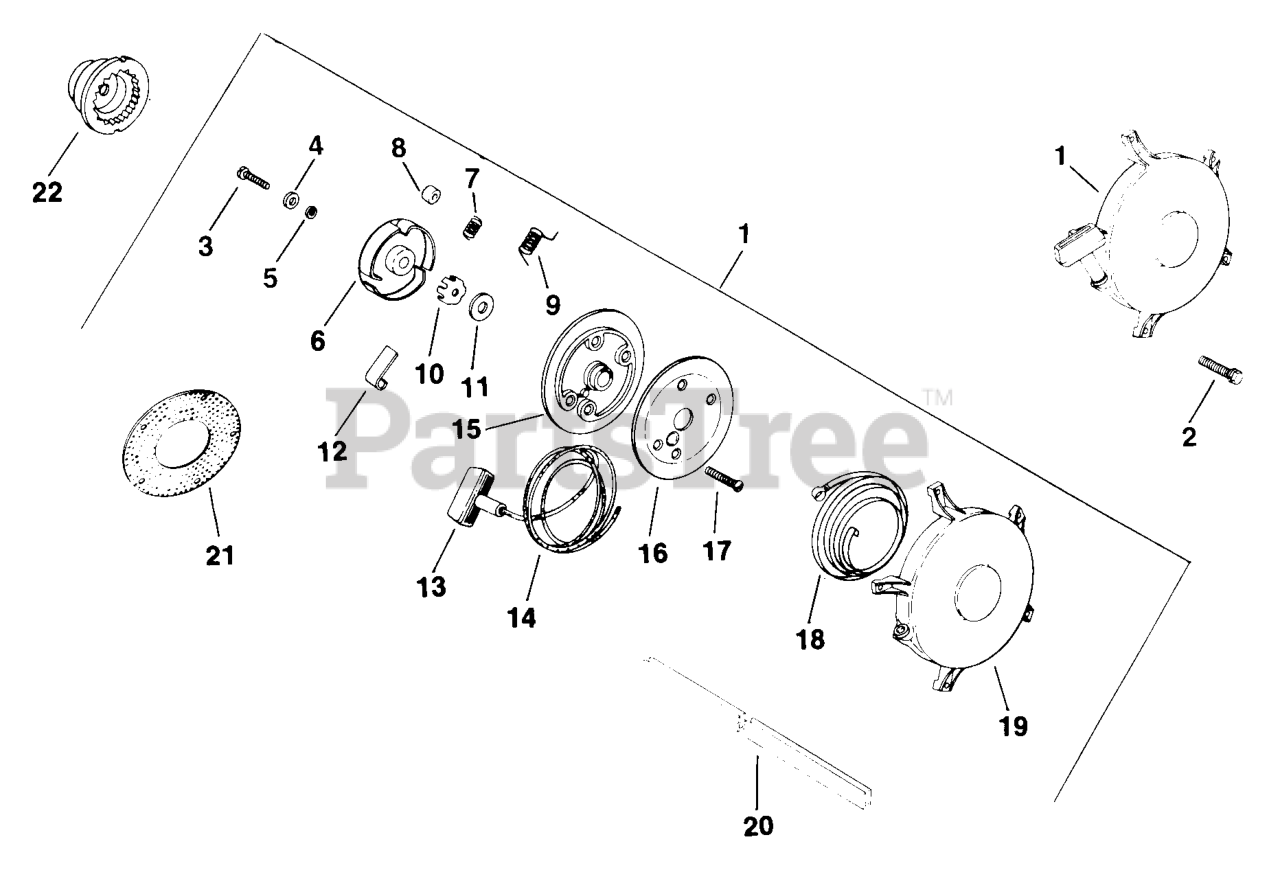

Retractable Starter 23-10-201 (TP-983-B) Rev 9/27/2006 Parts Diagram

  • Title

1

Kohler A-237251-S

STARTER - DISCONTINUED

Note: Includes 20,21, 47 165 01-S, X-15-22, X-25-92-S, X-70-3-S, X-97-2-S. Before Serial No. 1527000013

$

$

Not available

1

Kohler 47 165 01-S

STARTER

Note: Includes 3-19. After Serial No. 1527000003

$558.99

$

Usually ships in 2-5 days

0

1

Kohler 47 165 01-S

STARTER

Note: Includes 3-19

$558.99

$

Usually ships in 2-5 days

0

2

Kohler X-156-2-S

SCREW

$3.49

$

In Stock, Qty 5

0

3

Kohler 231691-S

SCREW

$8.49

$

Usually ships in 2-5 days

0

4

Kohler 231690-S

WASHER - DISCONTINUED

$

$

Not available

5

Kohler 231693-S

WASHER

$8.49

$

Usually ships in 2-5 days

0

6

Kohler 231699-S

RETAINER

$52.99

$

Usually ships in 2-5 days

0

7

Kohler 232525-S

SPRING - DISCONTINUED

Note: Use with spacer 47 112 04-S

$

$

Not available

8

Kohler 47 112 04-S

SPACER

Note: Use with retainer spring 232525-S

$8.99

$

Usually ships in 2-5 days

0

9

Kohler 41 089 06-S

SPRING

$33.99

$

Usually ships in 2-5 days

0

10

Kohler 231689-S

BRAKE

$

$

Not available

11

Kohler 231692-S

WASHER

$7.49

$

Usually ships in 2-5 days

0

12

Kohler 231695-S

DOGS - DISCONTINUED

$

$

Not available

13

Kohler 234452

HANDLE - USE 25 166 01
(Superseded to 25 166 01)

$15.99

$

In Stock, Qty 10

0

14

Kohler 231686-S

CORD

$30.99

$

Usually ships in 2-5 days

0

15

Kohler 231697-S

PULLEY

$104.99

$

Usually ships in 2-5 days

0

16

Kohler 231685-S

SHEAVE

$32.99

$

Usually ships in 2-5 days

0

17

Kohler 231683-S

SCREW

$7.49

$

In Stock, only 1 left!

0

18

Kohler 231705-S

SPRING

$

$

Not available

19

Kohler 235696-S

HOUSING - DISCONTINUED

$

$

Not available

20

Kohler X-532-2-S

DISCONTINUED

$

$

Not available

21

Kohler 237520-S

BAFFLE, HEAD - (#DSC)

$

$

Not available

22

Kohler 235685-S

CUP - DISCONTINUED

Note: Before Serial No. 1527000013

$

$

Not available

22

Kohler 47 109 01-S

CUP, DRIVE - DISCONTINUED

Note: After Serial No. 1527000003

$

$

Not available

X-22-22-S

Kohler X-22-22-S

WASHER, EXT TOOTH LOCK #10

$3.99

$

Usually ships in 2-5 days

0

X-70-3-S

Kohler X-70-3-S

NUT, MACH SCREW #10-32 GRD 2 USE 25 100 18-S
(Superseded to 25 100 18-S)

$3.49

$

In Stock, only 1 left!

0

X-97-2-S

Kohler X-97-2-S

SCREW, IND SLT HD 10-32X1/2" USE 24 086 55-S
(Superseded to 24 086 55-S)

$2.49

$

Usually ships in 2-5 days

0
