K482-35124 - Kohler K-Series Engine, Made for Tennant, 18hp, 13.4kW Governor 021700912 Parts Diagram

K-Series Engine, Made for Tennant, 18hp, 13.4kW

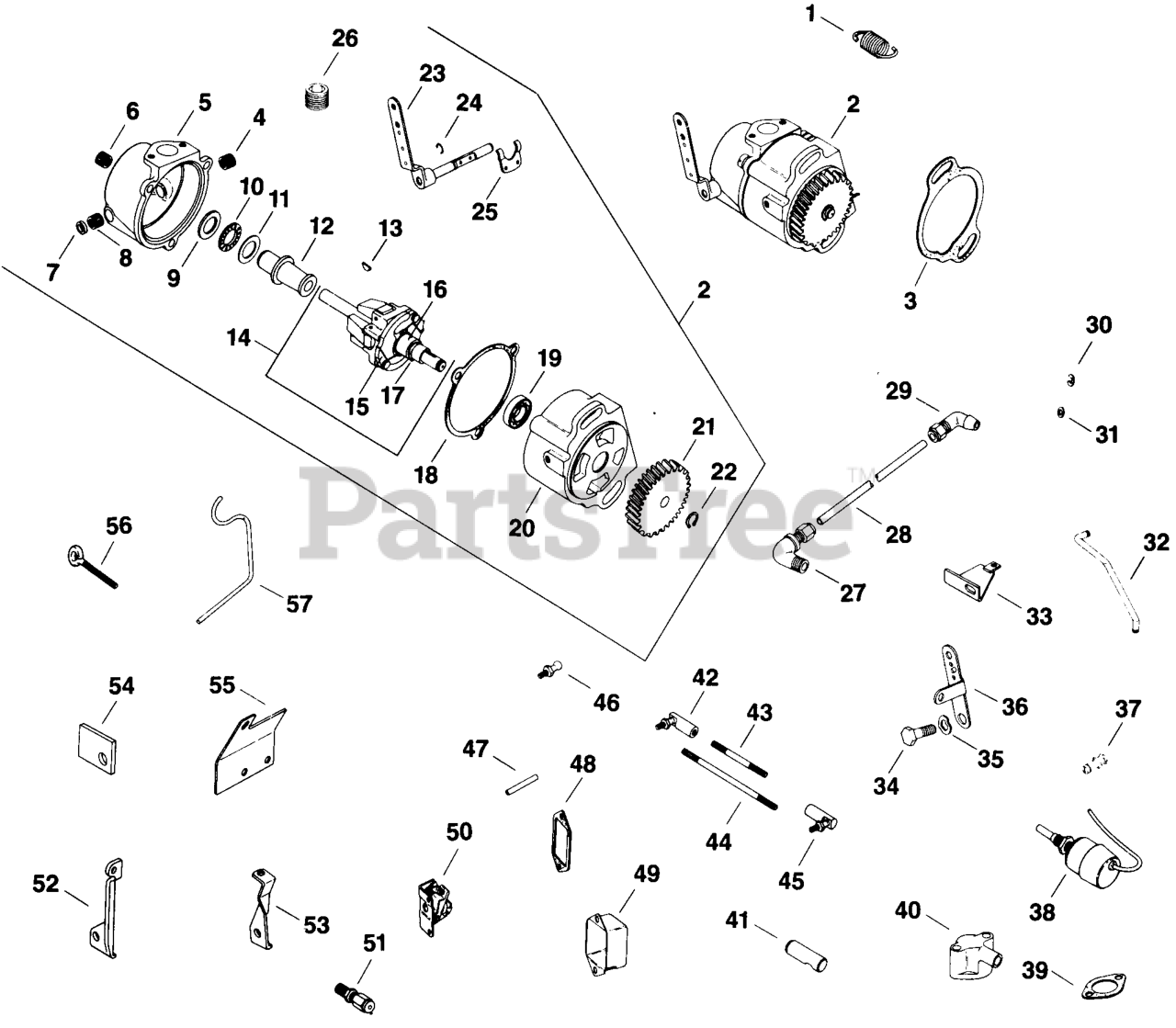

Governor 021700912 Parts Diagram

  • Title

1

Kohler 271547-S

SPRING - DISCONTINUED

$

$

Not available

2

Kohler 48 310 28-S

KIT, GOVERNOR - DISCONTINUED

Note: Includes 4-26

$

$

Not available

3

Kohler 277078-S

GASKET

$9.99

$

Usually ships in 2-5 days

0

4

Kohler X-293-2-S

BEARING

$36.99

$

Usually ships in 2-5 days

0

5

Kohler 48 096 05-S

COVER - DISCONTINUED

$

$

Not available

6

Kohler 48 030 02-S

BEARING

$57.99

$

In Stock, only 1 left!

0

7

Kohler 275055-S

SEAL - (#DSC)

$

$

Not available

8

Kohler X-293-3-S

BEARING

$33.99

$

Usually ships in 2-5 days

0

9

Kohler 277102-S

RACE

$

$

Not available

10

Kohler 277100-S

BEARING - DISCONTINUED

$

$

Not available

11

Kohler 277101-S

RACE

$

$

Not available

12

Kohler 48 755 01-S

KIT, THRUST SLEEVE

$

$

Not available

13

Kohler X-42-2-S

KEY, 3/32" X 3/8"

$3.99

$

In Stock, only 1 left!

0

14

Kohler 48 420 08-S

SHAFT - (#DSC)

$

$

Not available

15

Kohler 48 089 01-S

SPRING - DISCONTINUED

$

$

Not available

16

Kohler 48 149 04-S

CAM - (#DSC)

$

$

Not available

17

Kohler X-269-4-S

RING

$4.49

$

In Stock, only 1 left!

0

18

Kohler 277099-S

GASKET - DISCONTINUED

$

$

Not available

19

Kohler 240202-S

BEARING - (#DSC)

$

$

Not available

20

Kohler 48 081 02-S

HOUSING

$355.99

$

Usually ships in 2-5 days

0

21

Kohler 48 043 11-S

GEAR - DISCONTINUED

$

$

Not available

22

Kohler X-269-15-S

RING

$4.49

$

In Stock, only 1 left!

0

23

Kohler 48 087 03-S

LEVER

$207.99

$

Usually ships in 2-5 days

0

24

Kohler 277104-S

RING

$7.49

$

Usually ships in 2-5 days

0

25

Kohler 48 471 02-S

YOKE

$

$

Not available

26

Kohler X-75-23-S

PLUG, CTSK PIPE 1/8" USE 25 139 60-S
(Superseded to 25 139 60-S)

$3.49

$

In Stock, only 2 left!

0

29

Kohler 277337

DISCONTINUED

Note: Discontinued not available at Kohler Co.

$

$

Not available

34

Kohler 275691-S

SCREW

$

$

Not available

35

Kohler 277341-S

WASHER, SPRING 3/8"

$7.49

$

Usually ships in 2-5 days

0

36

Kohler 277080-S

LEVER - DISCONTINUED

$30.99

$

In Stock, only 1 left!

0

39

Kohler 277073-S

GASKET

$8.49

$

In Stock, only 1 left!

0

40

Kohler A-277905-S

BREATHER - DISCONTINUED

Note: Includes valve

$

$

Not available

42

Kohler 237130-S

JOINT

Note: Use 45 208 03-S after Serial No. 6373502

$27.99

$

Usually ships in 2-5 days

0

43

Kohler 271151-S

STUD,#10-32X2-1/8"

$13.99

$

Usually ships in 2-5 days

0

45

Kohler 237130-S

JOINT

Note: Use 45 208 03-S after Serial No. 6373502

$27.99

$

Usually ships in 2-5 days

0

47

Kohler X-489-8-S

ROD

$47.99

$

Usually ships in 2-5 days

0

48

Kohler 52 041 11-S

GASKET, POINT COVER

$3.49

$

In Stock, only 4 left!

0

49

Kohler A-220136-S

COVER - DISCONTINUED

Note: Discontinued not available at Kohler Co.

$

$

Not available

50

Kohler 47 150 03-S

BREAKER

$25.99

$

In Stock, only 1 left!

0

51

Kohler X-343-S

UNION

$13.99

$

Usually ships in 2-5 days

0
