KS530-3011 - Kohler 5400 Series Engine, Made for MTD, 17hp, 12.7kW 09 Engine Controls Parts Diagram

5400 Series Engine, Made for MTD, 17hp, 12.7kW

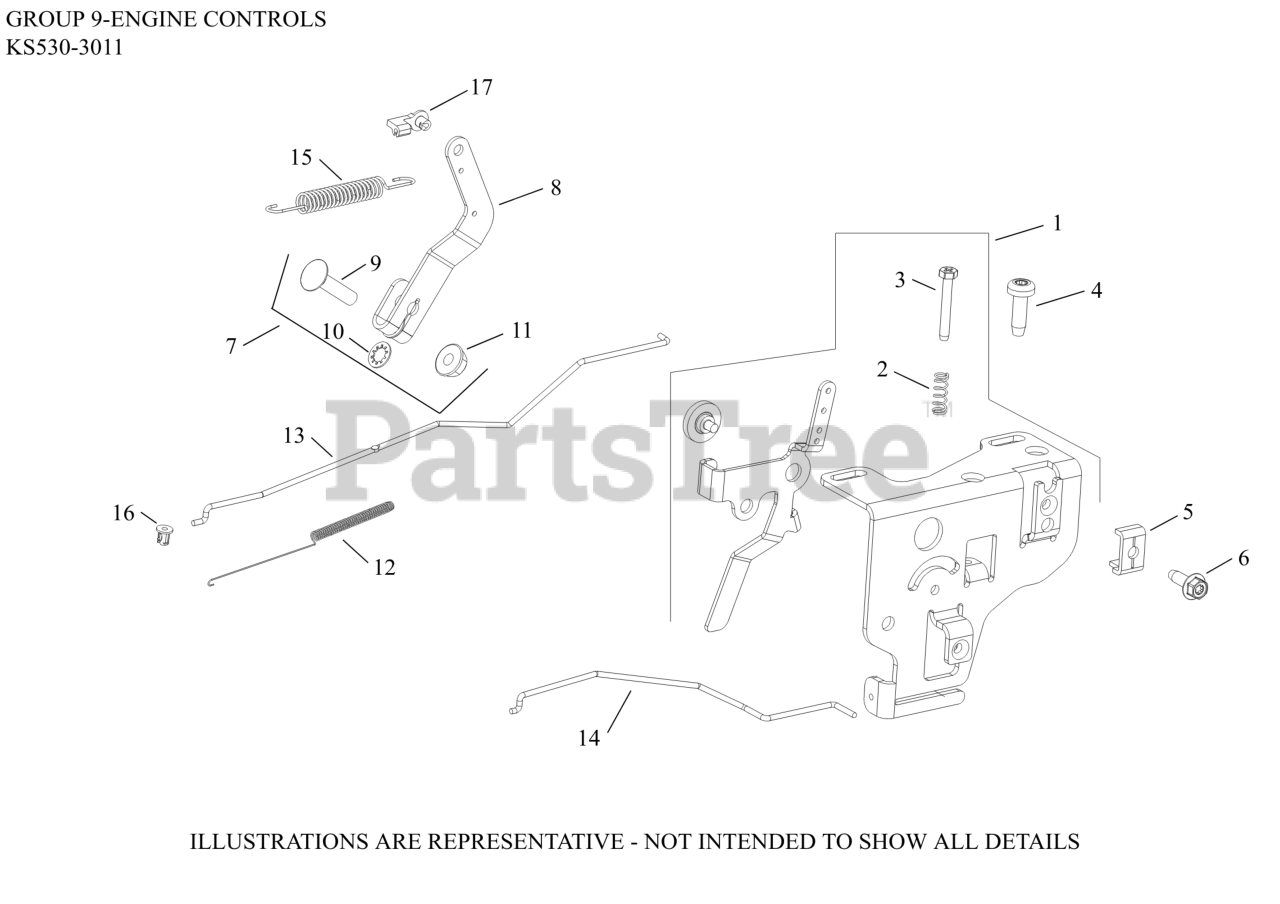

09 Engine Controls Parts Diagram

  • Title

1

Kohler 22 536 02-S

CONTROL ASSY SPEED

$30.99

$

Usually ships in 2-5 days

0

2

Kohler 20 089 13-S

SPRING, SPEED CONTROL

$2.49

$

Usually ships in 2-5 days

0

3

Kohler 25 086 297-S

KIT, IDLE ADJ SCREW & SPRING

$2.49

$

In Stock, only 2 left!

0

4

Kohler 25 086 403-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

5

Kohler 12 237 01-S

CLAMP, CABLE-(#2523753S)
(Superseded to 25 237 53-S)

$3.49

$

In Stock, only 1 left!

0

6

Kohler 25 086 651-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 1 left!

0

7

Kohler 22 090 04-S

LEVER, GOVERNOR ASSY

$5.99

$

Usually ships in 2-5 days

0

8

Kohler 22 090 01-S

LEVER, GOVERNOR

$5.99

$

Usually ships in 2-5 days

0

9

Kohler 52 211 04-S

BOLT, RD HD SQ NCK 1/4-20X1"

$4.99

$

Usually ships in 2-5 days

0

10

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, Qty 5

0

11

Kohler 12 100 07-S

NUT, FLANGE 1/4-20

$2.49

$

In Stock, only 3 left!

0

12

Kohler 20 089 10-S

SPRING, LINKAGE

$3.99

$

In Stock, Qty 8

0

13

Kohler 22 079 01-S

LINKAGE, THROTTLE

$2.99

$

In Stock, Qty 10

0

14

Kohler 22 079 02-S

LINKAGE, CHOKE

$2.99

$

In Stock, Qty 10

0

15

Kohler 22 089 15-S

SPRING, GOVERNOR

$2.49

$

In Stock, only 1 left!

0

16

Kohler 25 158 08-S

BUSHING, LINKAGE RETAINING

$5.99

$

In Stock, Qty 9

0

17

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, Qty 20+

0
