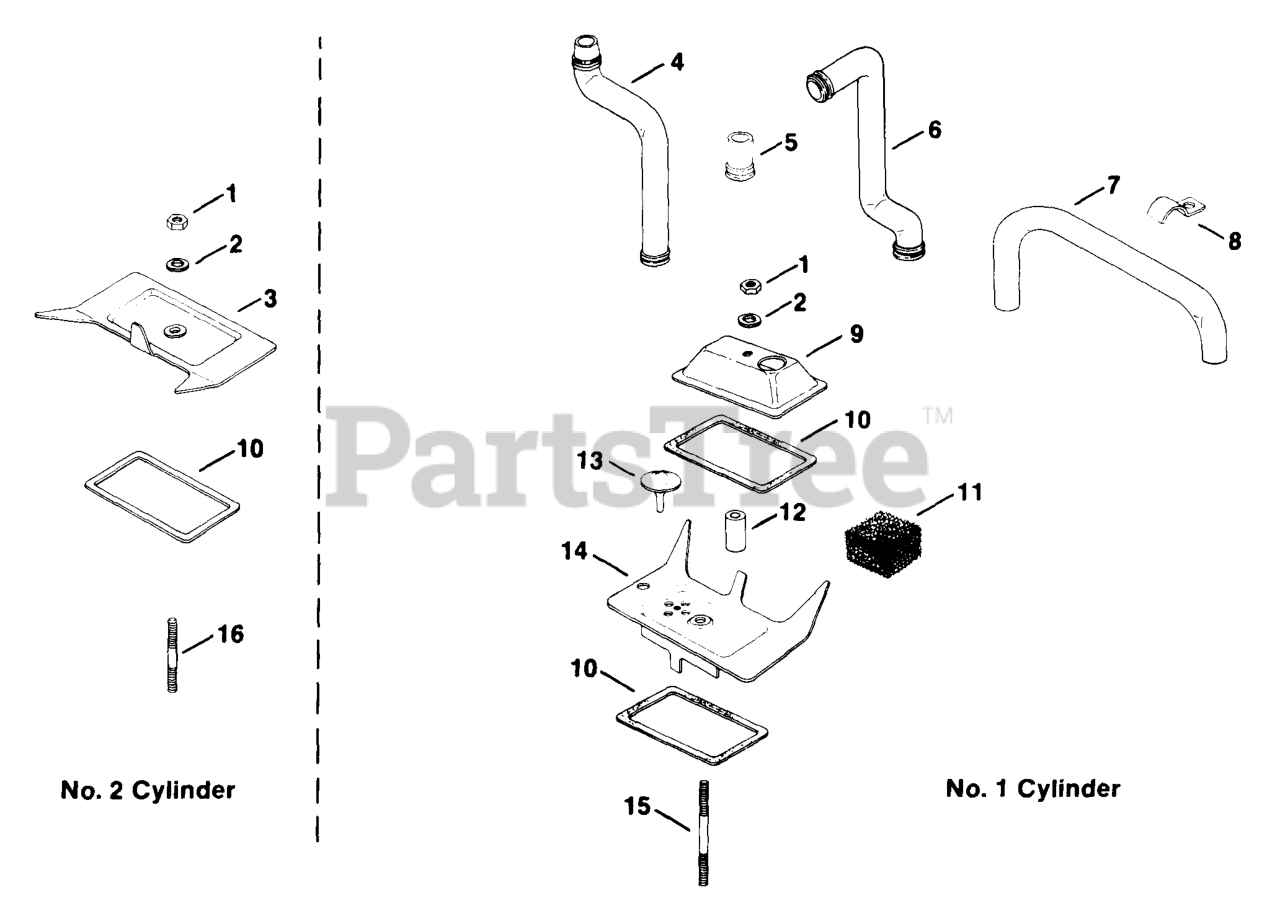

KT17-24323 - Kohler Series II K-Series Engine, Made for Wheel Horse, 17hp, 12.7kW Breather & Vent 3-15-3 Parts Diagram

Series II K-Series Engine, Made for Wheel Horse, 17hp, 12.7kW

Breather & Vent 3-15-3 Parts Diagram

  • Title

1

Kohler X-811

Nut, hex. 1/4-20

$

$

Not available

2

Kohler X-251-2

Washer, plain 1/4"

$

$

Not available

3

Kohler 52 096 18

COVER - USE 52 096 55
(Superseded to 52 096 55-S)

$

$

Not available

4

Kohler 52 326 05-S

HOSE, BREATHER-USE 25 326 06-S
(Superseded to 25 326 06-S)

$22.99

$

In Stock, only 3 left!

0

9

Kohler 52 096 08-S

DISCONTINUED - COVER

$

$

Not available

10

Kohler 52 055 01-S

GASKET

$7.49

$

In Stock, only 2 left!

0

11

Kohler 231419-S

FILTER, BREATHER

$8.49

$

In Stock, only 3 left!

0

12

Kohler 52 032 04-S

SEAL

$14.99

$

In Stock, only 1 left!

0

13

Kohler 52 462 01

VALVE, UMBRELLA - DISCONTINUED

$

$

Not available

14

Kohler 52 096 22

BREATHER - USE 52 035 02
(Superseded to 52 035 02)

$64.99

$

Usually ships in 2-5 days

0

15

Kohler 275220-S

STUD, 1/4-20x3-1/4" - DISCONTINUED

$

$

Not available

16

Kohler X-352-39-S

STUD, 1/4-20x2-1/4" USE 25 072 11-S
(Superseded to 25 072 11-S)

$3.49

$

Usually ships in 2-5 days

0
