Kohler KT620-3003 - Kohler 6600 Series Engine, Basic Version, 21hp, 15.7kW 08 Fuel System Parts Lookup with Diagrams

1

Kohler 25 072 25-S

STUD

$18.99

$

In Stock, only 2 left!

3

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 8

4

Kohler 25 050 22-S

FILTER,FUEL 51 MICRON (FUEL PUMP)

$8.99

$

In Stock, Qty 20+

6

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S

(Superseded to 25 111 81-S) 

$17.99

$

In Stock, Qty 8

7

Kohler 25 237 37-S

SPRING CLAMP, HOSE

$2.49

$

In Stock, Qty 14

8

Kohler 48 154 01-S

CLIP, CABLE (KM)

$2.49

$

In Stock, only 2 left!

9

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$2.49

$

Usually ships in 2-5 days

10

Kohler 24 393 55-S

PUMP, FUEL (PULSE)-(#2539326S)

$38.99

$

Usually ships in 2-5 days

11

Kohler 25 086 400-S

SCREW, THREAD FORMING

$3.99

$

In Stock, only 3 left!

12

Kohler 32 326 08-S

HOSE, PULSE PUMP(STEEL COVERS)

$4.99

$

In Stock, only 2 left!

13

Kohler 21 853 01-S

KIT,CARB(WALBRO)

$161.99

$

Usually ships in 2-5 days

15

Kohler M-651040-S

SCREW, FLG M6X1.0X40

$2.49

$

In Stock, only 3 left!

16

Kohler 24 041 52-S

GASKET, CARBURETOR

(Superseded to 24 041 91-S) 

$6.99

$

In Stock, Qty 8

34

Kohler 25 179 03-S

ACTUATOR, LINEAR

$72.99

$

Usually ships in 2-5 days

42

Kohler 24 164 277-S

INTAKE MANIFOLD W/GASKETS

$67.99

$

In Stock, only 3 left!

43

Kohler 24 153 37-S

O-RING, INTAKE PORT

$3.99

$

In Stock, only 2 left!

44

Kohler 24 041 91-S

GASKET, CARBURETOR (PIM, CV)

$6.99

$

In Stock, Qty 8

NI

Kohler 25 757 27-S

KIT,REPAIR OVERHAUL(WALBRO)

$24.99

$

In Stock, only 3 left!

NI

Kohler 25 757 28-S

KIT,BOWL O-RING(WALBRO)

$3.99

$

In Stock, Qty 9

NI

Kohler 32 755 19-S

KIT, HI ALTITUDE (5000 FT) 19MM

$25.99

$

Usually ships in 2-5 days

NI

Kohler 32 757 01-S

KIT,SOLENOID REPAIR(WALBRO)

$64.99

$

In Stock, only 3 left!

NI

Kohler 32 757 02-S

KIT,REPAIR FLOAT(WALBRO)

$49.99

$

In Stock, only 2 left!

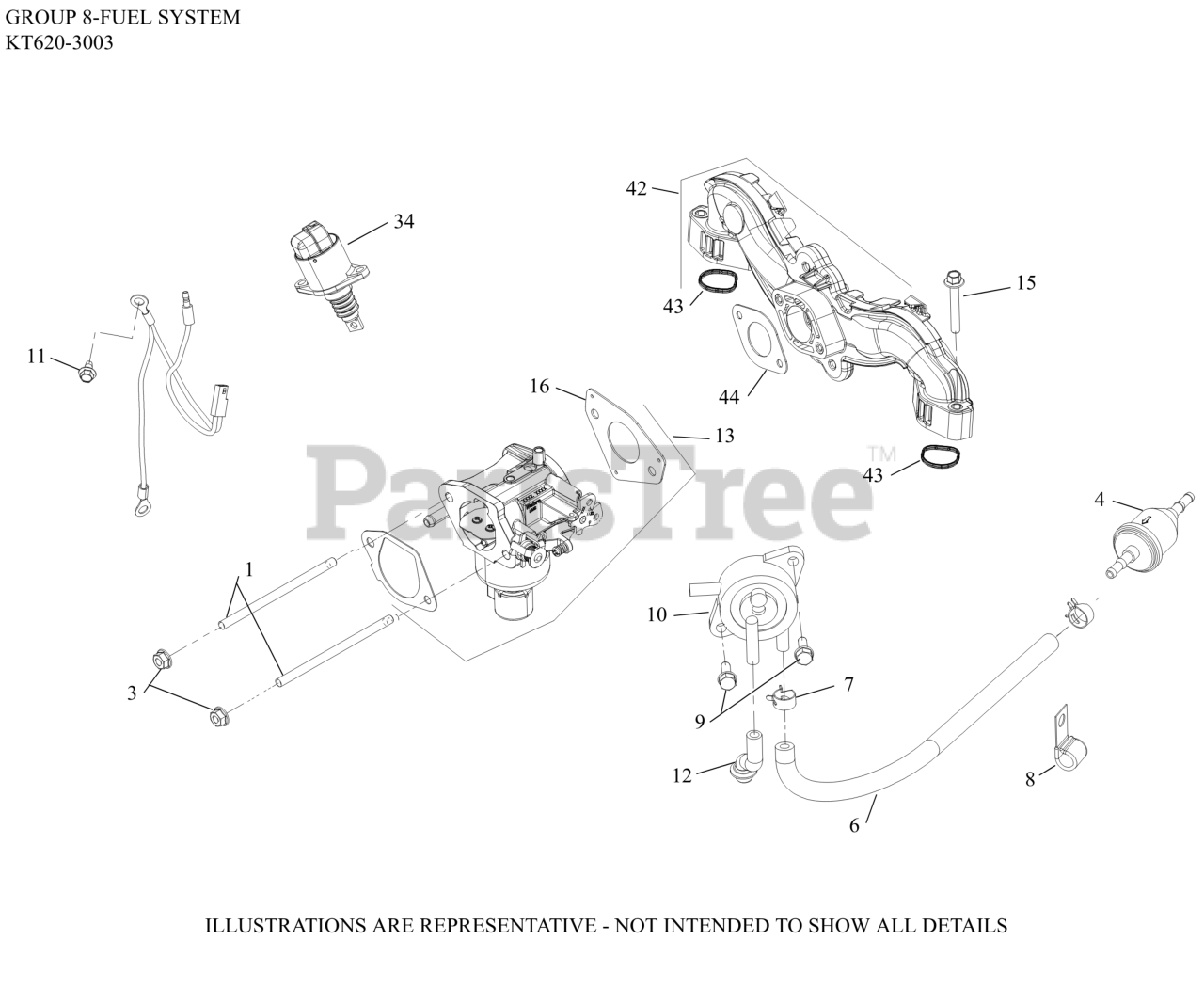

KT620-3003 - Kohler 6600 Series Engine, Basic Version, 21hp, 15.7kW 08 Fuel System Parts Diagram

08 Fuel System Parts Diagram

Kohler 25 072 25-S

Kohler M-641060-S

Kohler 25 050 22-S

Kohler 25 111 34-S

Kohler 25 237 37-S

Kohler 48 154 01-S

Kohler 24 086 12-S

Kohler 24 393 55-S

Kohler 25 086 400-S

Kohler 32 326 08-S

Kohler 21 853 01-S

Kohler M-651040-S

Kohler 24 041 52-S

Kohler 25 179 03-S

Kohler 24 164 277-S

Kohler 24 153 37-S

Kohler 24 041 91-S

Kohler 25 757 27-S

Kohler 25 757 28-S

Kohler 32 755 19-S

Kohler 32 757 01-S

Kohler 32 757 02-S
