KT725-3083 - Kohler 7000 Series Engine, Made for MTD, 22hp, 16.4kW Crankcase Group 2-32-26 KT Parts Diagram

7000 Series Engine, Made for MTD, 22hp, 16.4kW

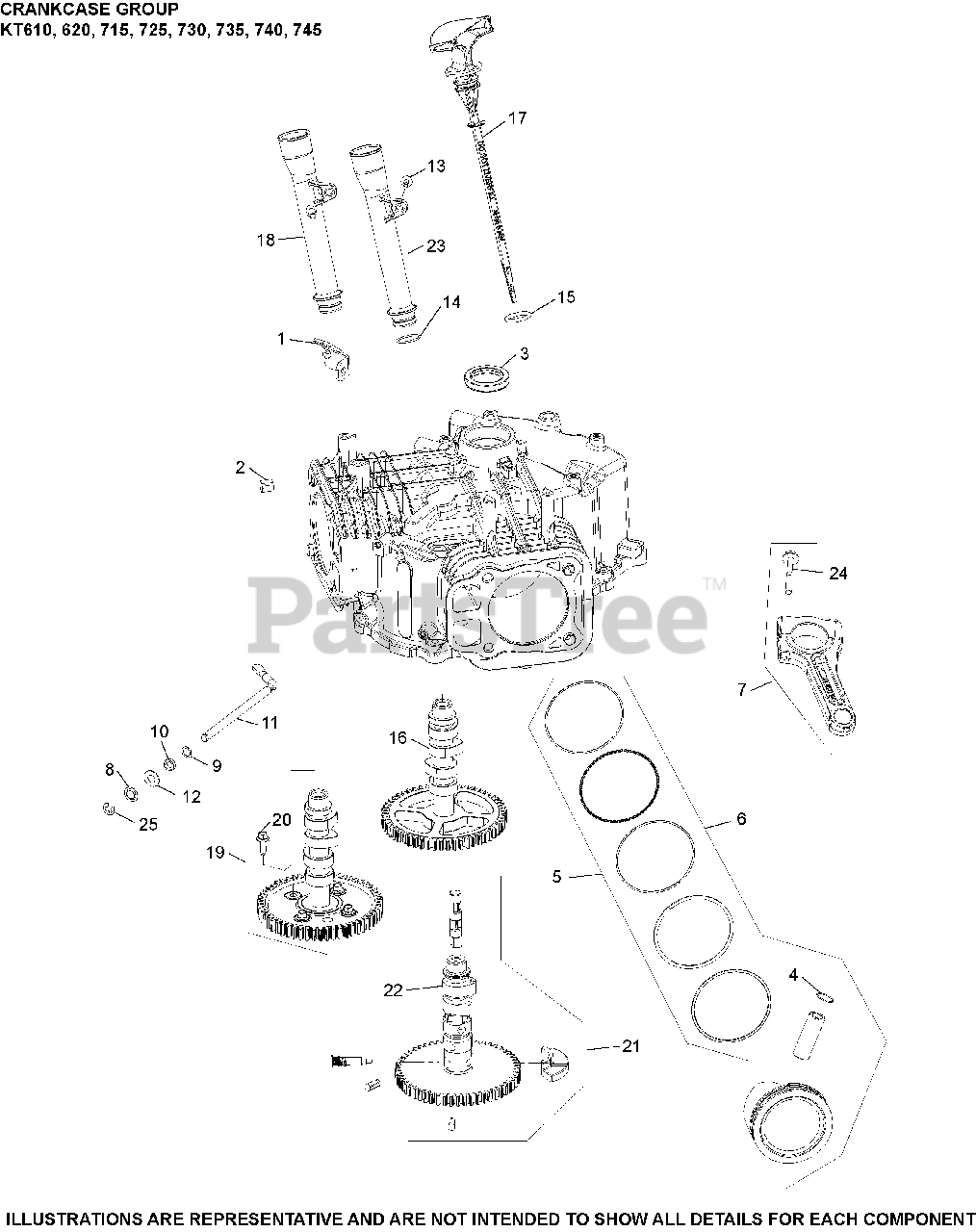

Crankcase Group 2-32-26 KT Parts Diagram

  • Title

1

Kohler 24 126 243-S

BRACKET, OIL FILL TUBE

$11.99

$

Usually ships in 2-5 days

0

2

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, Qty 7

0

3

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$9.49

$

In Stock, Qty 20+

0

4

Kohler 24 018 01-S

RETAINER, PISTON PIN

$3.49

$

In Stock, Qty 14

0

5

Kohler 25 108 01-S

RING SET(STD)STYLE B-1.2mm Tp RING THICK

$94.99

$

In Stock, only 4 left!

0

5

Kohler 25 108 02-S

RING SET(.08)STYLE B-1.2mm Tp RING THICK

$39.99

$

Usually ships in 2-5 days

0

5

Kohler 25 108 03-S

RING SET(.25)STYLE B-1.2mm Tp RING THICK

$39.99

$

Usually ships in 2-5 days

0

5

Kohler 25 108 04-S

RING SET(.50)STYLE B-1.2mm Tp RING THICK

$154.99

$

Usually ships in 2-5 days

0

6

Kohler 25 874 13-S

PISTON W/RINGS (STYLE B)(STD) - RING SET 25 108 01-S

$301.99

$

In Stock, Qty 6

0

6

Kohler 25 874 15-S

PISTON W/RINGS (STYLE B)( 0.08) - RING SET 25 108 02-S

$280.99

$

Usually ships in 2-5 days

0

6

Kohler 25 874 16-S

PISTON W/RINGS (STYLE B)(0.25) - RING SET 25 108 03-S

$282.99

$

In Stock, only 1 left!

0

6

Kohler 25 874 17-S

PISTON W/RINGS (STYLE B)(0.50) - RING SET 25 108 04-S

$280.99

$

Usually ships in 2-5 days

0

7

Kohler 24 067 28-S

ROD, ASSY CONNECTING (STD)-(#2406730S)
(Superseded to 25 067 04-S)

$83.99

$

In Stock, Qty 20+

0

7

Kohler 24 067 29-S

ROD ASSY, CONNECTING U/S (.010”) (.25 mm) -USE 24 067 31-S
(Superseded to 25 067 05-S)

$83.99

$

In Stock, only 1 left!

0

9

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, only 1 left!

0

10

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$4.49

$

In Stock, Qty 10

0

12

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, Qty 8

0

14

Kohler 12 153 07-S

O-RING

$2.49

$

In Stock, Qty 9

0

15

Kohler 25 153 09-S

O-RING

$4.99

$

In Stock, Qty 20+

0

16

Kohler 16 010 04-S

CAMSHAFT ASSEMBLY (PLASTIC GEAR)
(Superseded to 32 010 07-S)

$83.99

$

In Stock, Qty 13

0

17

Kohler 32 038 14-S

DIPSTICK, ASSEMBLY

$9.49

$

In Stock, Qty 6

0

18

Kohler 32 123 14-S

TUBE ASSEMBLY, OIL FILL

$6.99

$

In Stock, Qty 11

0

25086452-S

Kohler 25 086 452-S

KIT, ROD BOLTS
(Superseded to 25 086 677-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, Qty 9

0

3275522-S

Kohler 32 755 22-S

KIT, CROSS SHAFT

Note: NOT ILLUSTRATED

$6.49

$

Usually ships in 2-5 days

0

3215403-S

Kohler 32 154 03-S

CLIP, RETAINER GOVERNOR SHAFT

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days
