KT725-3112 - Kohler 7000 Series Engine, Made for MTD, 22hp, 16.4kW 08 Fuel System Parts Diagram

7000 Series Engine, Made for MTD, 22hp, 16.4kW

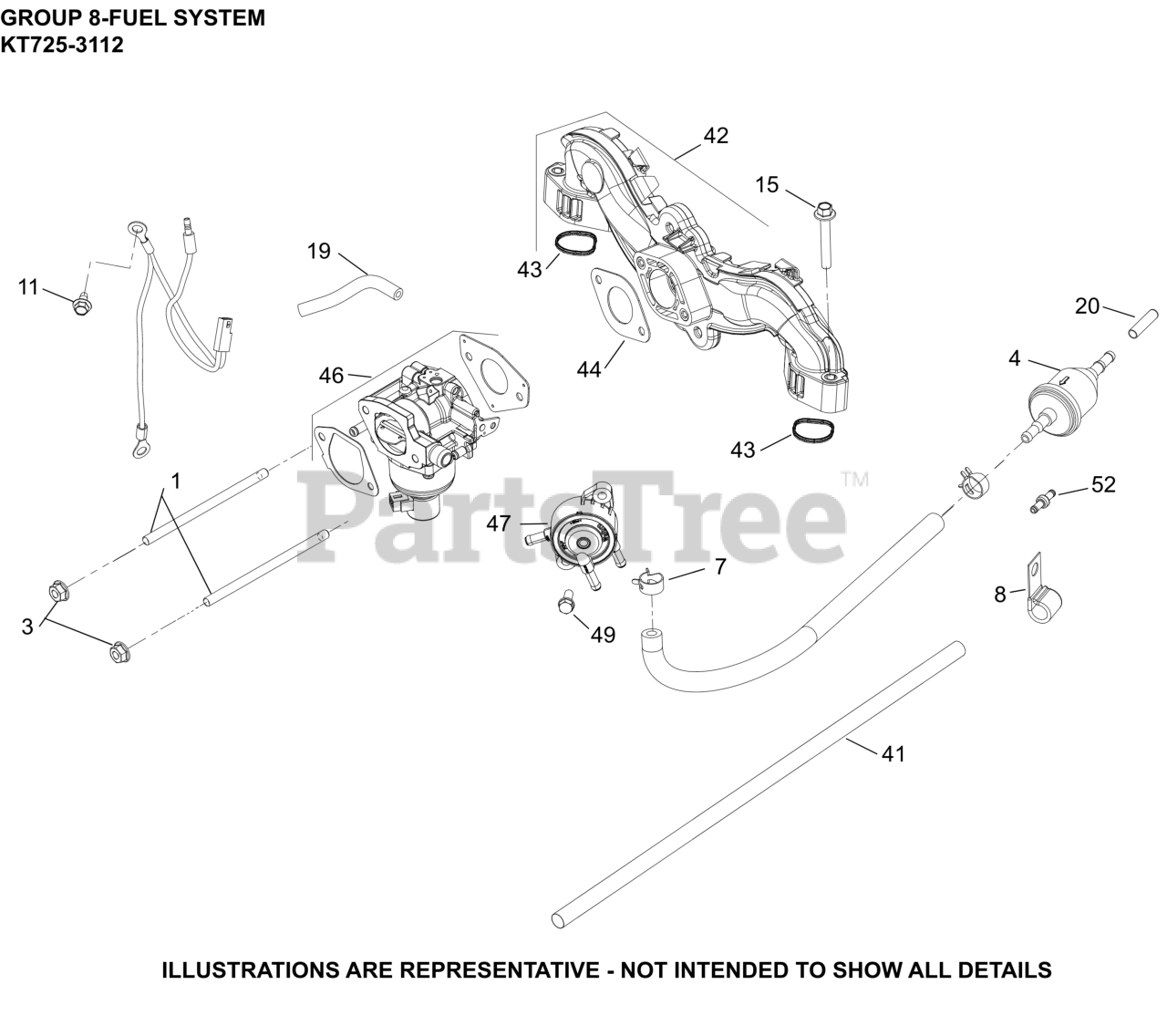

08 Fuel System Parts Diagram

  • Title

1

Kohler 25 072 25-S

STUD

$18.99

$

Usually ships in 2-5 days

0

3

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 9

0

4

Kohler 25 050 22-S

FILTER,FUEL 51 MICRON (FUEL PUMP)

$8.99

$

In Stock, Qty 20+

0

7

Kohler 25 237 37-S

SPRING CLAMP, HOSE

$2.49

$

In Stock, Qty 20+

0

8

Kohler 48 154 01-S

CLIP, CABLE (KM)

$2.49

$

Usually ships in 2-5 days

0

11

Kohler 25 086 400-S

SCREW, THREAD FORMING

$3.99

$

In Stock, only 4 left!

0

15

Kohler M-651040-S

SCREW, FLG M6X1.0X40

$2.49

$

In Stock, Qty 12

0

19

Kohler 25 326 08-S

HOSE, EVAPORATIVE 20"- (#24326143S)
(Superseded to 24 326 143-S)

$5.49

$

In Stock, Qty 7

0

20

Kohler 25 173 33-S

CAP, MASKING

$2.49

$

In Stock, only 1 left!

0

41

Kohler 25 431 22-S

SLEEVE, ANTI-ABRASION

$5.99

$

Usually ships in 2-5 days

0

42

Kohler 24 164 277-S

INTAKE MANIFOLD W/GASKETS

$67.99

$

In Stock, only 4 left!

0

43

Kohler 24 153 37-S

O-RING, INTAKE PORT

$3.99

$

In Stock, only 1 left!

0

44

Kohler 24 041 91-S

GASKET, CARBURETOR (PIM, CV)

$6.99

$

In Stock, Qty 10

0

46

Kohler 32 853 93-S

KIT,CARB(NIKKI)

$132.99

$

In Stock, only 1 left!

0

47

Kohler 25 393 26-S

PUMP, FUEL (PULSE)

$

$

Currently unavailable

49

Kohler 25 086 784-S

SCREW, HEX HEAD

$2.49

$

In Stock, Qty 16

0

52

Kohler 17 294 12-S

FITTING, FUEL SYSTEM

$3.99

$

Usually ships in 2-5 days

0

NI

Kohler 16 757 02-S

KIT, BOWL WITH O-RINGS NIKKI G-TYPE TWIN

$21.99

$

In Stock, only 1 left!

0

NI

Kohler 16 757 03-S

KIT, FLOAT AND NEEDLE NIKKI G-TYPE TWIN

$33.99

$

In Stock, only 2 left!

0

NI

Kohler 16 757 05-S

KIT,CHOKEREPAIR NIKKI G-TYPE T-DISC.

$

$

Not available

NI

Kohler 22 757 03-S

KIT, O-RING (NIKKI)

$12.99

$

In Stock, only 2 left!

0

NI

Kohler 22 757 04-S

KIT, SOLENOID (NIKKI)

$151.99

$

In Stock, only 3 left!

0

NI

Kohler 32 755 41-S

KIT, HIGH ALT (NIKKI)(4000-8000 FT)

$30.99

$

Usually ships in 2-5 days

0
