KT730-3025 - Kohler 7000 Series Engine, Made for Dixie Chopper, 23hp, 17.2kW Lubrication Group 3-32-28 KT Parts Diagram

7000 Series Engine, Made for Dixie Chopper, 23hp, 17.2kW

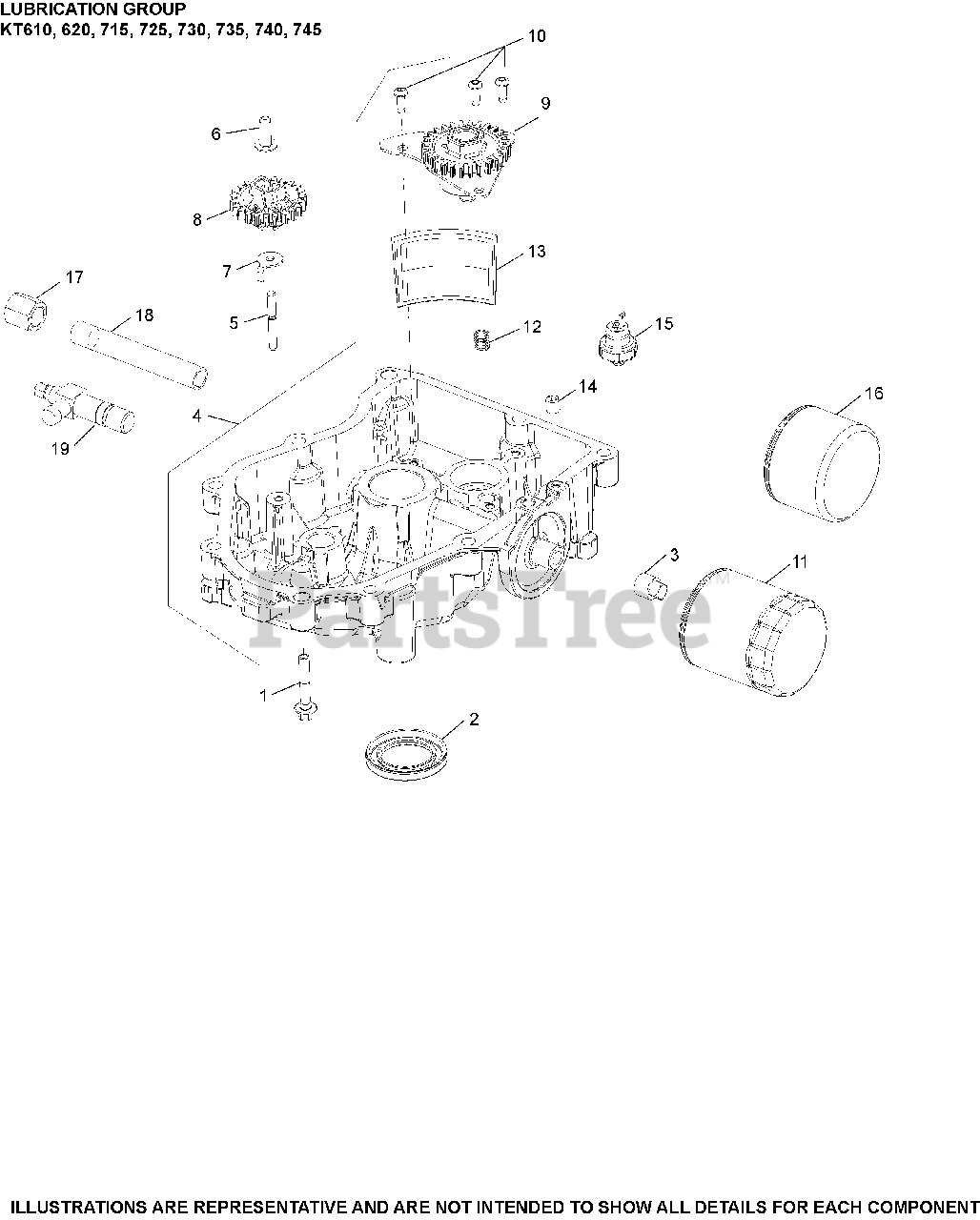

Lubrication Group 3-32-28 KT Parts Diagram

  • Title

1

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$3.49

$

In Stock, Qty 20+

0

2

Kohler 25 032 06-S

SEAL, OIL

$13.99

$

In Stock, Qty 20+

0

3

Kohler 25 139 57-S

PLUG, SQ HD PIPE 3/8"

$2.49

$

In Stock, Qty 18

0

4

Kohler 32 199 17-S

PAN ASSEMBLY, OIL
(Superseded to 32 199 24-S)

$

$

Not available

5

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$6.49

$

In Stock, Qty 13

0

6

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 20+

0

7

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, Qty 20+

0

8

Kohler 32 310 02-S

KIT, GOVERNOR GEAR

$10.99

$

In Stock, Qty 13

0

9

Kohler 32 393 18-S

PUMP ASSEMBLY, OIL

$30.99

$

In Stock, Qty 6

0

10

Kohler 25 086 414-S

SCREW, BUTTON HEAD
(Superseded to 25 086 792-S)

$2.49

$

In Stock, only 1 left!

0

11

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

12

Kohler 32 089 06-S

SPRING, COMPRESSION
(Superseded to 24 089 74-S)

$2.49

$

In Stock, only 3 left!

0

13

Kohler 32 162 06-S

SCREEN, OIL

$5.49

$

In Stock, Qty 15

0

15

Kohler 25 099 27-S

SENSOR, OIL PSI

$15.99

$

In Stock, Qty 20+

0
