KT745-3100 - Kohler 7000 Series Engine, Made for MTD, 26hp, 19.4kW 03 Lubrication Parts Diagram

7000 Series Engine, Made for MTD, 26hp, 19.4kW

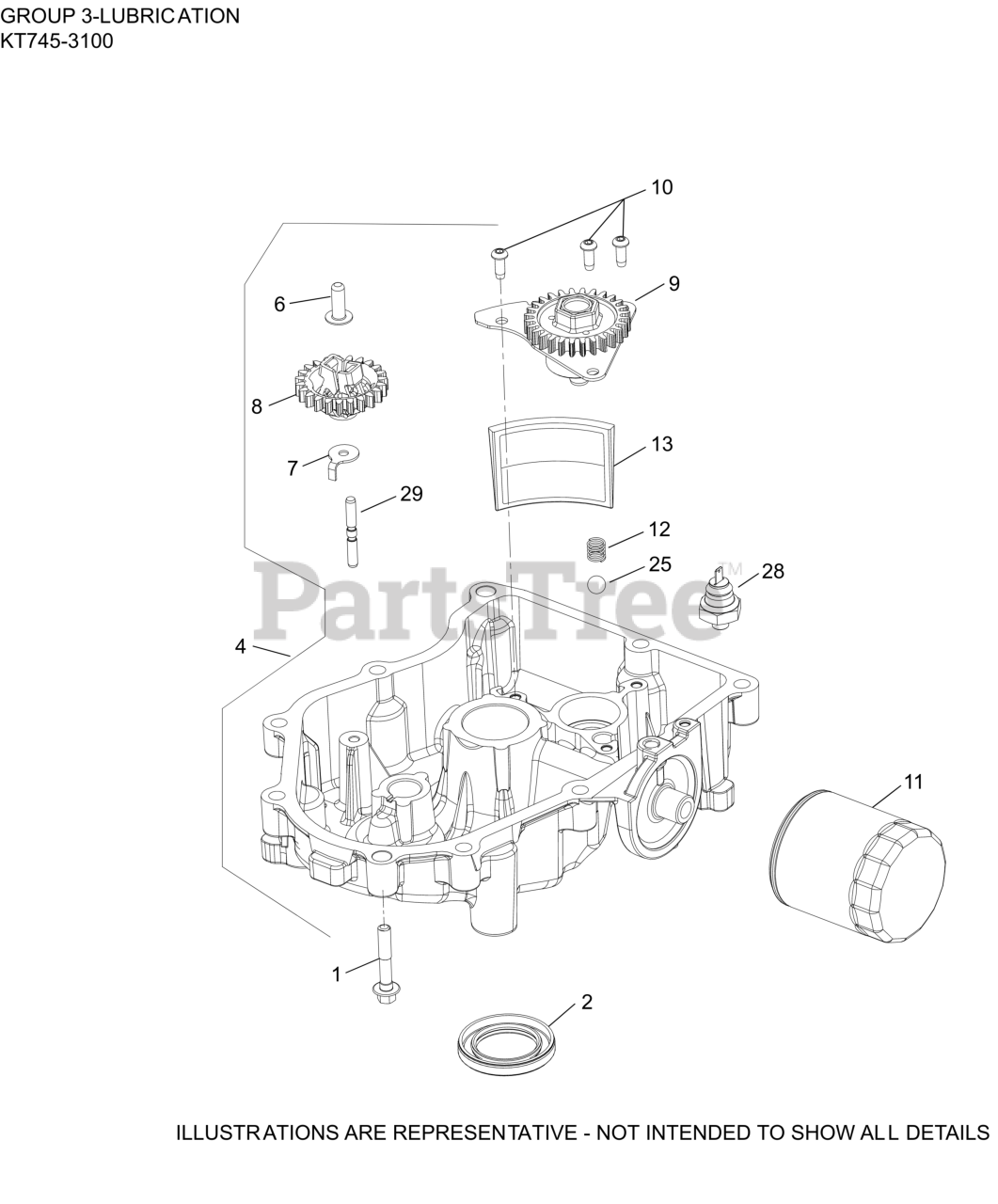

03 Lubrication Parts Diagram

  • Title

1

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$3.49

$

In Stock, Qty 20+

0

2

Kohler 25 032 06-S

OIL SEAL

$13.99

$

In Stock, Qty 20+

0

4

Kohler 32 199 34-S

OIL PAN ASSEMBLY, (ROLLER BURNISHED)

$197.99

$

In Stock, only 3 left!

0

6

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 20+

0

7

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, Qty 20+

0

8

Kohler 32 310 02-S

KIT, GOVERNOR GEAR

$10.99

$

In Stock, Qty 13

0

9

Kohler 32 393 18-S

PUMP ASSEMBLY, OIL

$30.99

$

In Stock, Qty 6

0

10

Kohler 25 086 792-S

SCREW, BUTTON HEAD

$2.49

$

In Stock, only 1 left!

0

11

Kohler 52 050 02-S

OIL FILTER
(Superseded to 52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

12

Kohler 24 089 74-S

SPRING, COMPRESSION

$2.49

$

In Stock, only 3 left!

0

13

Kohler 32 162 06-S

SCREEN, OIL

$5.49

$

In Stock, Qty 15

0

25

Kohler 25 194 03-S

PRESSURE RELIEF BALL

$3.49

$

In Stock, only 2 left!

0

28

Kohler 25 099 42-S

SWITCH, OIL PRESSURE(NC 3-6 PSI TO OPEN)

$20.99

$

Usually ships in 2-5 days

0

29

Kohler 25 144 22-S

SHAFT, GOVERNOR GEAR

$5.49

$

Usually ships in 2-5 days

0

NI

Kohler 25 139 62-S

PLUG, PIPE CTSK 3/8"

$3.49

$

In Stock, only 2 left!

0
