KT745-3102 - Kohler 7000 Series Engine, Made for MTD, 26hp, 19.4kW KT745-3102 Engine Controls Parts Diagram

7000 Series Engine, Made for MTD, 26hp, 19.4kW

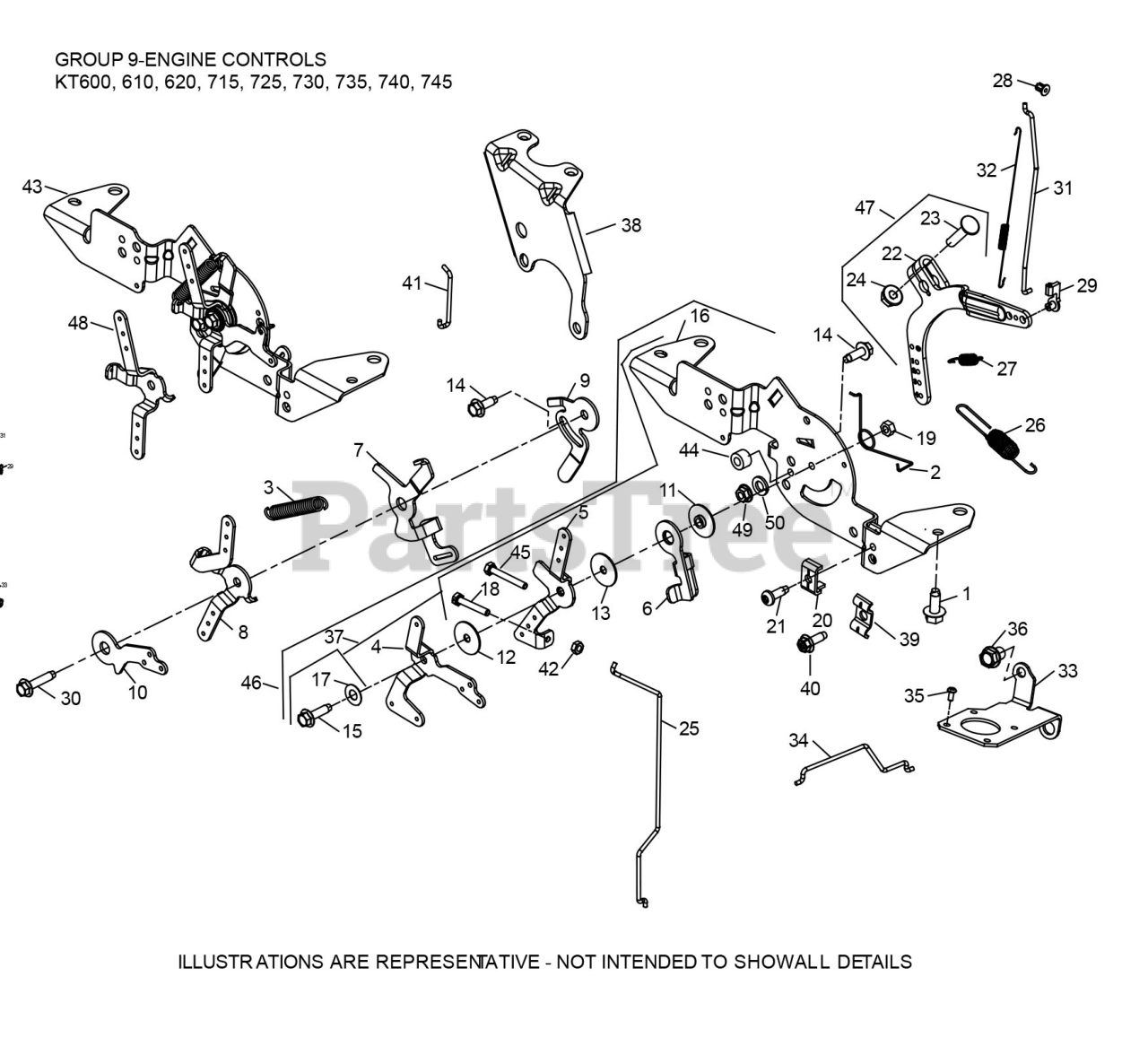

KT745-3102 Engine Controls Parts Diagram

  • Title

1

Cub Cadet KH-25-086-397-S

SCREW-THREAD FORMI

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet KH-24-089-03

SPRING-CHOKE RETRN

$

$

Not available

4

Cub Cadet KH-24-090-05

CHOKE LEVER

$

$

Not available

5

Cub Cadet KH-24-090-13

LEVER-THROTTLE CON

$

$

Not available

6

Cub Cadet KH-24-090-47-S

LEVER-THROTTLE ACT

$2.99

$

In Stock, only 4 left!

0

11

Cub Cadet KH-24-112-27-S

SPACER-CONTROL ASSEMBLY

$3.99

$

In Stock, Qty 7

0

12

Cub Cadet KH-24-468-01

WASHER

$

$

Not available

13

Cub Cadet KH-24-468-20-S

FLAT WASHER

$2.49

$

In Stock, only 2 left!

0

14

Cub Cadet KH-25-086-398-S

SCREW

$3.99

$

In Stock, Qty 13

0

15

Cub Cadet KH-25-086-473-S

THREAD FORMING SCREW

$2.49

$

In Stock, Qty 17

0

16

Cub Cadet KH-32-126-18-S

SPEED CONTROL BRACKET

$11.99

$

In Stock, only 1 left!

0

17

Cub Cadet KH-41-468-03

WAVE WASHER

$

$

Not available

18

Cub Cadet KH-M-403025-S

SCREW

$

$

Currently unavailable

19

Cub Cadet KH-M-547050-S

HEX LOCK NUT

$2.49

$

In Stock, Qty 6

0

20

Cub Cadet KH-25-237-53-S

CABLE CLAMP

$3.99

$

Usually ships in 3-6 days

0

22

Cub Cadet KH-24-090-69-S

LEVER-GOVERNOR ASSEMBLY

$8.99

$

In Stock, only 1 left!

0

23

Cub Cadet KH-24-211-03-S

BOLT-RD HD SQ NECK

$2.49

$

In Stock, Qty 15

0

24

Cub Cadet KH-M-641060-S

HEX FLANGE NUT

$4.49

$

In Stock, Qty 14

0

25

Cub Cadet KH-24-079-22-S

CHOKE LINKAGE

$6.99

$

In Stock, only 1 left!

0

26

Cub Cadet KH-24-089-25-S

GOVERNOR SPRING

$15.99

$

In Stock, only 3 left!

0

27

Cub Cadet KH-24-089-55-S

GOVERNOR SPRING

$2.49

$

In Stock, Qty 9

0

28

Cub Cadet KH-25-158-08

BUSHING

$

$

Not available

29

Cub Cadet KH-25-158-11

BUSHING-RETAINING

$

$

Not available

32

Cub Cadet KH-32-089-11-S

LINKAGE SPRING

$2.49

$

In Stock, only 1 left!

0

34

Cub Cadet KH-24-079-04-S

THROTTLE LINKAGE

$3.49

$

In Stock, only 1 left!

0

40

Cub Cadet KH-25-086-651-S

THREAD FORMING SCREW

$2.49

$

In Stock, only 1 left!

0

42

Cub Cadet KH-M-446030-S

HEX NUT

$2.49

$

In Stock, Qty 9

0

46

Cub Cadet KH-32-536-08-S

SPEED CONTROL ASSEMBLY

$

$

Currently unavailable

47

Cub Cadet KH-24-090-69-S

LEVER-GOVERNOR ASSEMBLY

$8.99

$

In Stock, only 1 left!

0
