KT745-3103 - Kohler 7000 Series Engine, Made for Bad Boy, 26hp, 19.4kW 06 Blower Housing Parts Diagram

7000 Series Engine, Made for Bad Boy, 26hp, 19.4kW

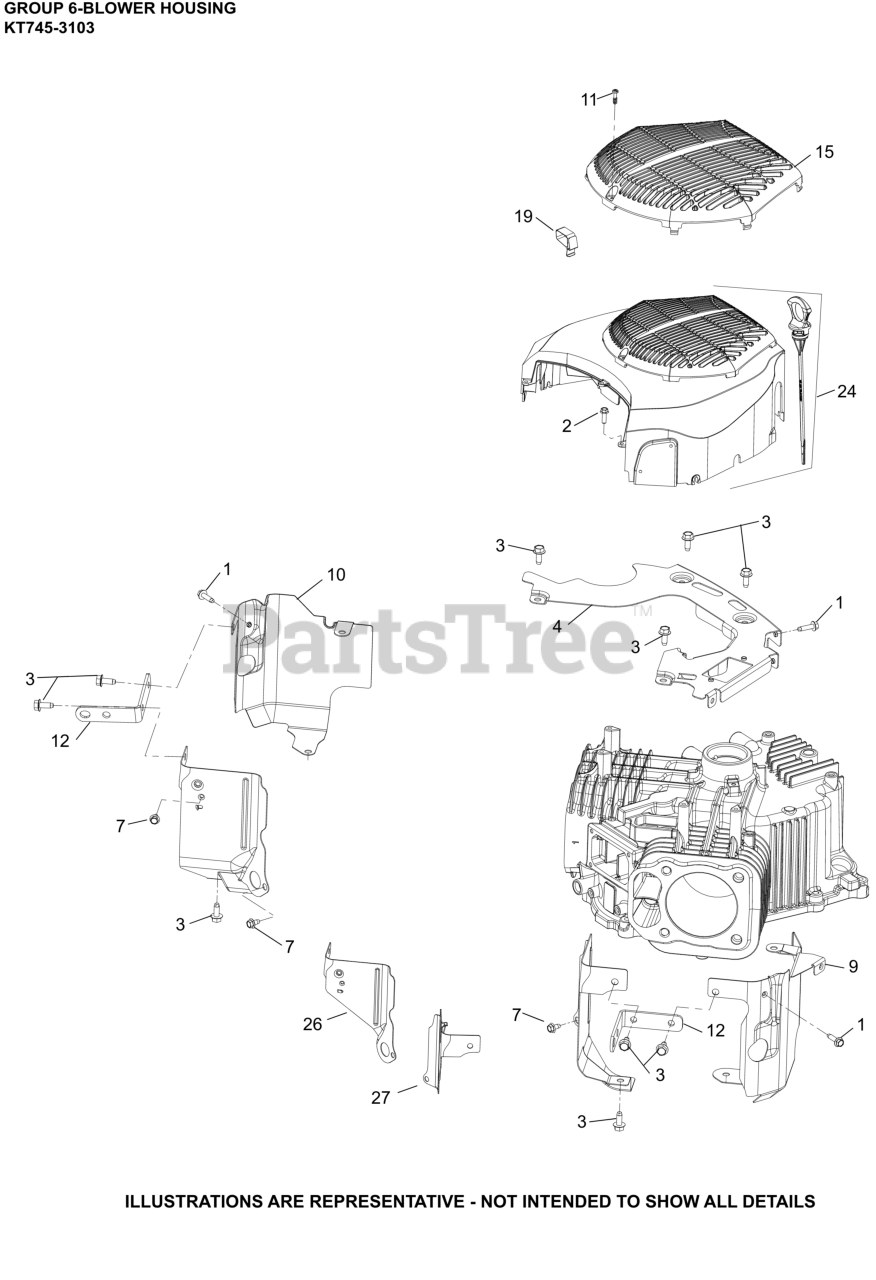

06 Blower Housing Parts Diagram

  • Title

1

Kohler 25 086 399-S

SCREW, THD FRM-USE 25 086 473-S
(Superseded to 25 086 473-S)

$3.49

$

In Stock, Qty 20+

0

2

Kohler 25 086 787-S

SCREW, HI-LOW

$2.49

$

In Stock, Qty 20+

0

3

Kohler 25 086 397-S

SCREW, THREAD FORMING

$4.99

$

In Stock, Qty 11

0

4

Kohler 32 146 15-S

PLATE, BACKING

$14.99

$

Usually ships in 2-5 days

0

7

Kohler 25 086 400-S

SCREW, THREAD FORMING

$3.99

$

In Stock, only 4 left!

0

9

Kohler 32 063 17-S

BAFFLE, LEFT BARREL

$14.99

$

Usually ships in 2-5 days

0

10

Kohler 32 063 18-S

BAFFLE, RIGHT BARREL

$14.99

$

Usually ships in 2-5 days

0

11

Kohler 25 086 449-S

SCREW, M5-2.42 (PT) THREAD

$5.49

$

In Stock, only 3 left!

0

12

Kohler 32 445 01-S

STRAP, LIFTING

$3.49

$

Usually ships in 2-5 days

0

15

Kohler 32 314 06-S

GUARD, FIXED

$10.99

$

In Stock, Qty 5

0

19

Kohler 32 154 02-S

CLIP, BLOWER HOUSING

$2.49

$

In Stock, only 1 left!

0

24

Kohler 32 027 44-S

KIT, BLOWER HOUSING

$45.99

$

In Stock, Qty 5

0

26

Kohler 32 063 32-S

BAFFLE, VALLEY #1 CYLINDER

$3.99

$

Usually ships in 2-5 days

0

27

Kohler 32 063 34-S

BAFFLE, VALLEY #2 CYL-USE 32 063 36-S

$

$

Not available
