L 10575 E (1694986) - Simplicity 30" Snow Thrower, 10.5hp Engine & Frame Group - Domestic Models Parts Diagram

30" Snow Thrower, 10.5hp

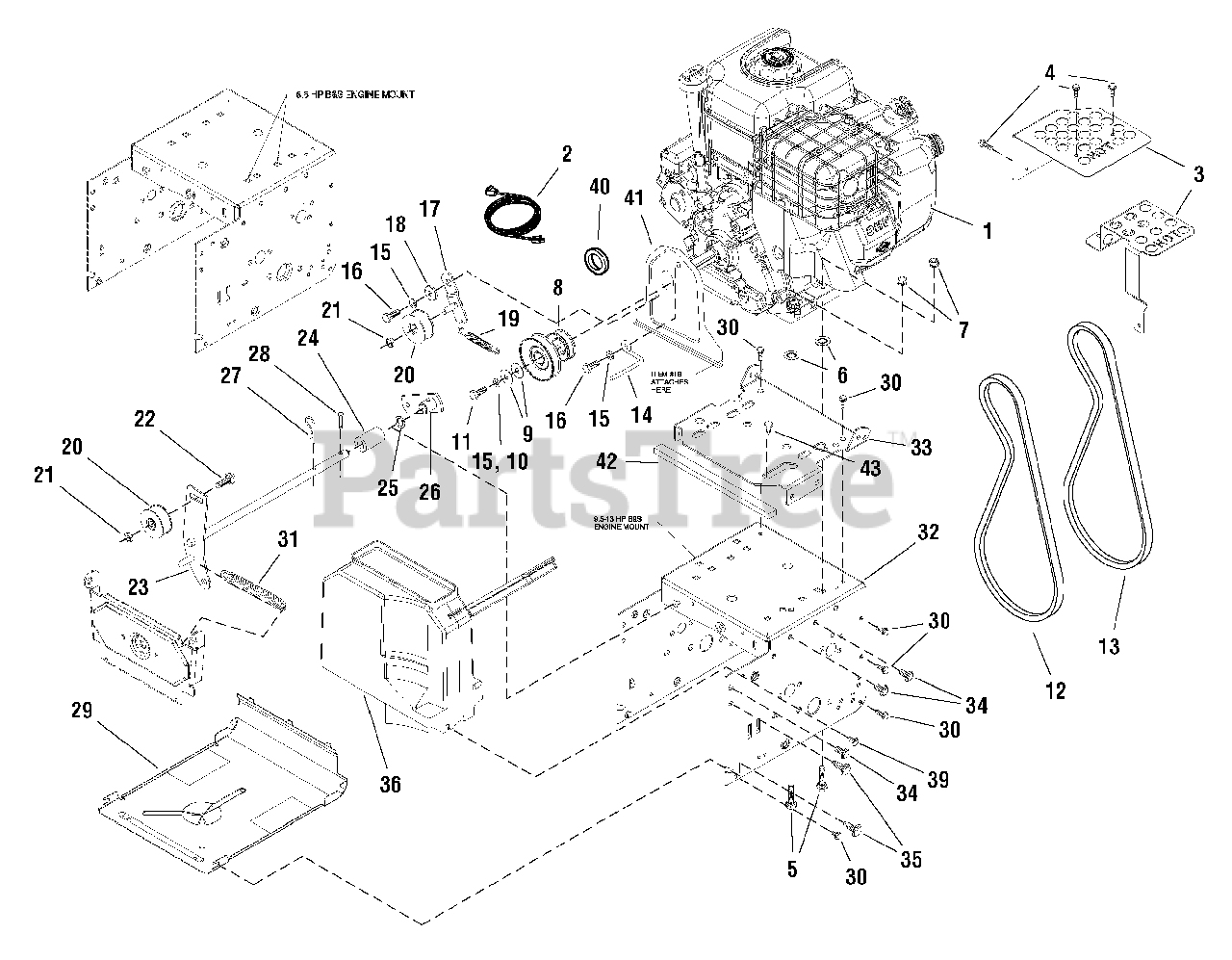

Engine & Frame Group - Domestic Models Parts Diagram

  • Title

1

ENGINE, 8.5HP Briggs & Stratton - Model #15A1140116E1

$

$

Not available

1

ENGINE, 9.5HP Briggs & Stratton - Model #20A4140115E1

$

$

Not available

1

ENGINE, 10.5HP Briggs & Stratton - Model #20E2140111E1

$

$

Not available

1

ENGINE, 11.5HP Briggs & Stratton - Model #21C2140112E1

$

$

Not available

2

Simplicity 1724064SM

CORD, Electric Start

$40.99

$

Usually ships in 2-12 days

0

3

Simplicity 7300133ASM

GUARD, Muffler

Note: (Used only on 8.5HP Models)

$46.99

$

Usually ships in 2-12 days

0

3

Simplicity 1725664ASM

GUARD, Muffler

Note: (Used only on 9.5HP, 10.5HP & 11.5HP Models)

$25.99

$

Usually ships in 2-12 days

0

4

Simplicity 1929477SM

SCREW, Hex Washer Head Taptite #10C x 1/2
(Superseded to 704060)

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 720064

CARRIAGE BOLT, 5/16-18 x 1-1/2
(Superseded to 704210)

$4.99

$

In Stock, only 3 left!

0

6

Simplicity 2720376SM

NUT, Speed

$

$

Not available

7

Simplicity 1931277SM

NUT, Hex Flange 5/16-18 Whiz Lock
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

7

Simplicity 1960686SM

NUT, Hex Flange 5/16-18 ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 722085

PULLEY, Engine
(Superseded to 1501109MA)

$43.99

$

In Stock, only 2 left!

0

9

Simplicity 1919381SM

WASHER, 5/16-1
(Superseded to 703298)

Note: (Used only on 8.5HP Models)

$4.49

$

In Stock, Qty 14

0

9

Simplicity 1922755SM

WASHER, 3/8
(Superseded to 704128)

Note: (Used only on 9.5HP, 10.5HP & 11.5HP Models)

$5.49

$

In Stock, Qty 20+

0

10

Simplicity 1916965SM

LOCKWASHER, Spring 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 5

0

11

Simplicity 1921982SM

CAPSCREW, Hex Head 5/16-24 x 1-1/4 G8
(Superseded to 703299)

Note: (Used only on 8.5HP Models)

$5.49

$

Usually ships in 2-12 days

0

11

Simplicity 1960428SM

CAPSCREW, Hex Head 3/8-24 x 1-1/4 G8
(Superseded to 703165)

Note: (Used only on 9.5HP, 10.5HP & 11.5HP Models)

$4.49

$

Usually ships in 2-12 days

0

12

Simplicity 1733324SM

V-BELT, 3L 33.13 Drive

$19.99

$

In Stock, only 3 left!

0

13

Simplicity 1733051SM

V-BELT, 4L 36.5 Auger

Note: (Used only on 8.5HP & 9.5HP Models)

$41.99

$

In Stock, only 4 left!

0

13

Simplicity 1733507SM

V-BELT, 4L 38.5 Auger

Note: (Used only on 10.5HP & 11.5HP Models)

$27.99

$

In Stock, only 2 left!

0

14

Simplicity 1733014SM

STOP, Belt
(Superseded to 1739070YP)

$8.49

$

In Stock, only 2 left!

0

15

Simplicity 1917356SM

LOCKWASHER, Spring 5/16
(Superseded to 5025170SM)

$4.49

$

Usually ships in 2-12 days

0

16

Simplicity 1921515SM

CAPSCREW, Hex Head 5/16-24 x 3/4 G5
(Superseded to 703336)

$4.99

$

In Stock, Qty 14

0

17

Simplicity 722090

IDLER BRACKET ASSEMBLY, Drive Belt
(Superseded to 1687797YP)

$8.99

$

In Stock, only 2 left!

0

18

Simplicity 722072

BUSHING, Idler Bracket
(Superseded to 1501065MA)

$5.99

$

In Stock, only 2 left!

0

19

Simplicity 724418

SPRING, Extension Idler
(Superseded to 53704MA)

$8.99

$

In Stock, only 2 left!

0

20

Simplicity 722378

IDLER, Plastic Ball Bearing
(Superseded to 1502120MA)

$23.99

$

In Stock, only 2 left!

0

21

Simplicity 1960251SM

NUT, Hex Centerlock Jam 3/8-16
(Superseded to 703230)

$5.49

$

In Stock, Qty 9

0

22

Simplicity 724823

CARRIAGE, 3/8-16 x 1-1/4
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

23

Simplicity 1733055SM

IDLER ASSEMBLY, Auger

Note: (Used only on 8.5HP & 9.5HP Models)

$63.99

$

Usually ships in 2-12 days

0

23

Simplicity 722132

IDLER ASSEMBLY, Auger
(Superseded to 1501226YZMA)

Note: (Used only on 10.5HP & 11.5HP Models)

$55.99

$

Usually ships in 2-12 days

0

24

Simplicity 722118

SPACER/AUGER BRACKET
(Superseded to 1501200MA)

$6.49

$

Usually ships in 2-12 days

0

25

Simplicity 1960027SM

WASHER, 1/2
(Superseded to 703128)

$3.99

$

In Stock, Qty 20+

0

26

Simplicity 1733626SM

BRACKET & HUB ASSEMBLY, Spring Attached

$25.99

$

Usually ships in 2-12 days

0

27

Simplicity 725367

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

28

Simplicity 725675

PIN, Clevis
(Superseded to 761761MA)

$7.49

$

In Stock, only 2 left!

0

29

Simplicity 722067ASM

PANEL, Bottom
(Superseded to 1501055E701MA)

$38.99

$

Usually ships in 2-12 days

0

30

Simplicity 1927429SM

SCREW, Hex Washer Head Taptite 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 11

0

31

Simplicity 722455

SPRING, Extension Auger Idler
(Superseded to 165X159MA)

$7.49

$

In Stock, Qty 6

0

32

Simplicity 722061C

FRAME, Standard Turn Axle
(Superseded to 1740572CSM)

Note: (Used only on 8.5HP Models)

$157.99

$

Usually ships in 2-12 days

0

32

Simplicity 1733154CSM

FRAME, EZ Turn Axle

Note: (Used only on 9.5HP, 10.5HP & 11.5HP Models)

$109.99

$

Usually ships in 2-12 days

0

33

Simplicity 1733583CSM

ENGINE MOUNT

$51.99

$

Usually ships in 2-12 days

0

34

Simplicity 1924856SM

SCREW, Hex Washer Head Taptite 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, Qty 17

0

35

Simplicity 1664847SM

SCREW, Hex Washer Head Taptite 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

36

Simplicity 1732486SM

COVER, Belt w/Toolbox
(Superseded to 1741069MA)

$

$

Not available

39

Simplicity 722887

SCREW, 1/4-AB x 3/4 Hex
(Superseded to 26X306MA)

$4.99

$

Usually ships in 2-12 days

0

40

Simplicity 1733898SM

SHAFT, Seal

$6.99

$

Usually ships in 2-12 days

0

41

Simplicity 1733868ASM

SEAL, Plate
(Superseded to 1733868BMYP)

$14.99

$

In Stock, only 1 left!

0

42

Simplicity 1733897SM

SEAL, Strip

$9.49

$

Usually ships in 2-12 days

0

43

Simplicity 1733924SM

CLIP, Pine Tree

$4.49

$

Usually ships in 2-12 days

0
