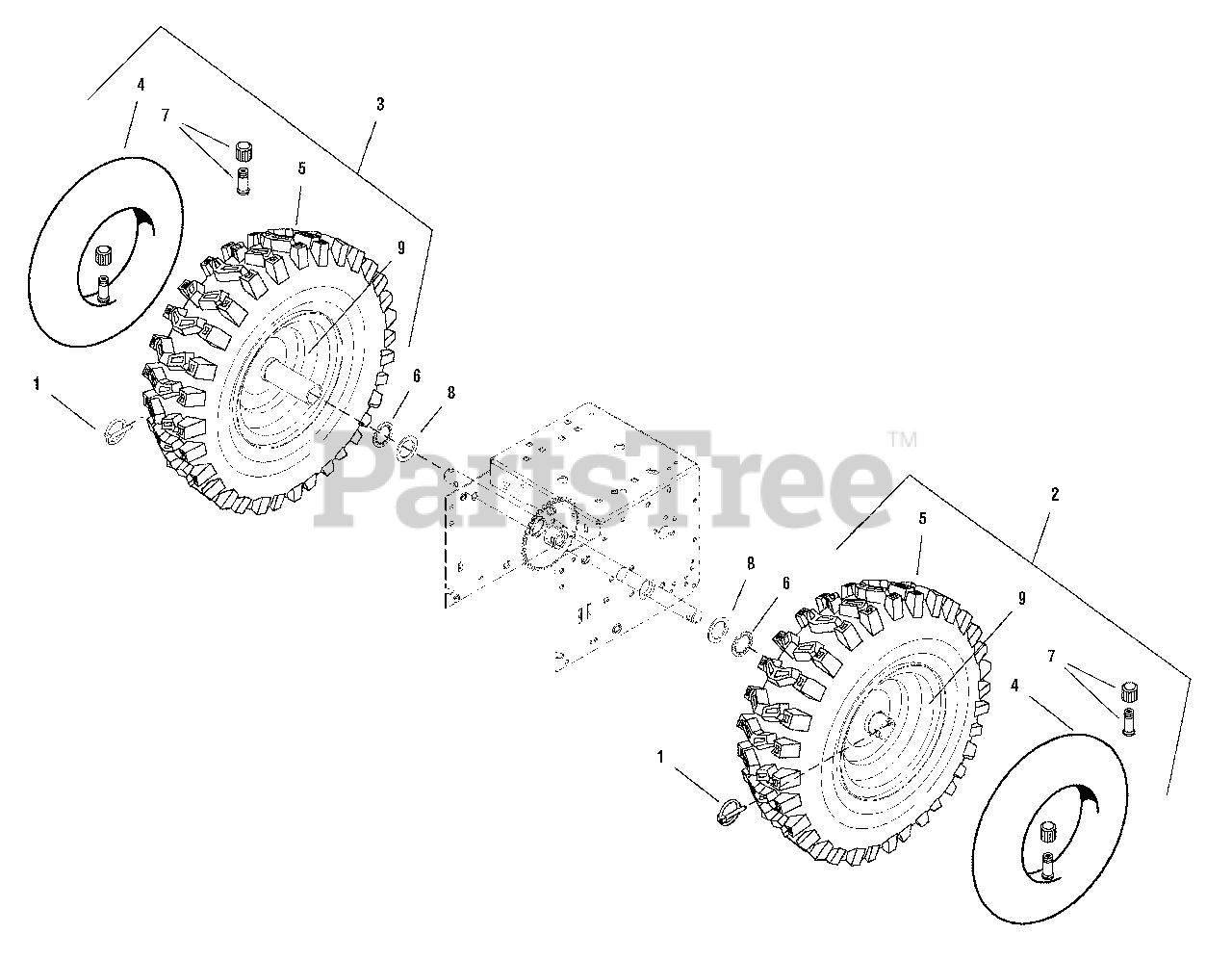

L 10575 E (1694986) - Simplicity 30" Snow Thrower, 10.5hp Wheel & Tire Group Parts Diagram

30" Snow Thrower, 10.5hp

Wheel & Tire Group Parts Diagram

  • Title

1

Simplicity 1731186SM

PIN, Klik .313 x 1.97
(Superseded to 703160)

Note: (Used on 26" Models)

$5.49

$

In Stock, only 2 left!

0

1

Simplicity 1679697SM

PIN, Klik 1/4 x 1-3/4

Note: (Used on 28", 30" & 32" Models)

$9.99

$

In Stock, only 2 left!

0

2

Simplicity 1732935SM

WHEEL & TIRE ASSEMBLY, 15 x 5 L.H & R.H.

Note: (Used on 26" Models)

$142.99

$

Usually ships in 2-12 days

0

2

Simplicity 1723169SM

WHEEL & TIRE ASSEMBLY, 15 x 5 L.H.

Note: (Used on 28" Models)

$

$

Not available

2

Simplicity 1714235SM

WHEEL & TIRE ASSEMBLY, 16 x 4.8 L.H.

Note: (Used on 30" & 32" Models)

$

$

Not available

3

Simplicity 1732935SM

WHEEL & TIRE ASSEMBLY, 15 x 5 L.H & R.H.

Note: (Used on 26" Models)

$142.99

$

Usually ships in 2-12 days

0

3

Simplicity 1733089SM

WHEEL & TIRE ASSEMBLY, 15 x 5 R.H.

Note: (Used on 28" Models)

$136.99

$

Usually ships in 2-12 days

0

3

Simplicity 1720306SM

WHEEL & TIRE ASSEMBLY, 16 x 4.8 R.H.

Note: (Used on 30" & 32" Models)

$190.99

$

In Stock, only 1 left!

0

4

Simplicity 1664090SM

TUBE, Tire 4.10/3.50-6 L.H.

Note: (Used on 28" Models)

$28.99

$

In Stock, only 2 left!

0

4

Simplicity 2153038SM

TUBE, Tire 4.80/4.00 L.H. & R.H.

Note: (Used on 30" & 32" Models)

$38.99

$

Usually ships in 2-12 days

0

5

Simplicity 1723287SM

TIRE, 15 x 5.00-6, 2 PLY, KENDA L.H.

Note: (Used on 28" Models)

$86.99

$

Usually ships in 2-12 days

0

5

Simplicity 1612000SM

TIRE, 4.80/4.00-8 L.H. & R.H.

Note: (Used on 30" & 32" Models)

$

$

Not available

6

Simplicity 1657528SM

RETAINING RING, Extension, #75 3/4 Self Lock

Note: (Used on 26" Models)

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

Note: (Used on All Models)

$8.49

$

Usually ships in 2-12 days

0

8

Simplicity 712120MA

WASHER, Flat

Note: (Used on 26" Models)

$5.49

$

In Stock, Qty 16

0

9

Simplicity 1723286SM

HUB, Wheel L.H.

Note: (Used on 28" Models)

$

$

Not available

9

Simplicity 1714242SM

HUB, Wheel R.H., 3-3/4 Wide 8 Diameter 3/4 ID

Note: (Used on 30" & 32" Models)

$115.99

$

In Stock, only 1 left!

0

9

Snapper 1720307SM

HUB, Wheel 3.75 Wide 8. R.H.

Note: (Used on 30" & 32" Models)

$

$

Not available
